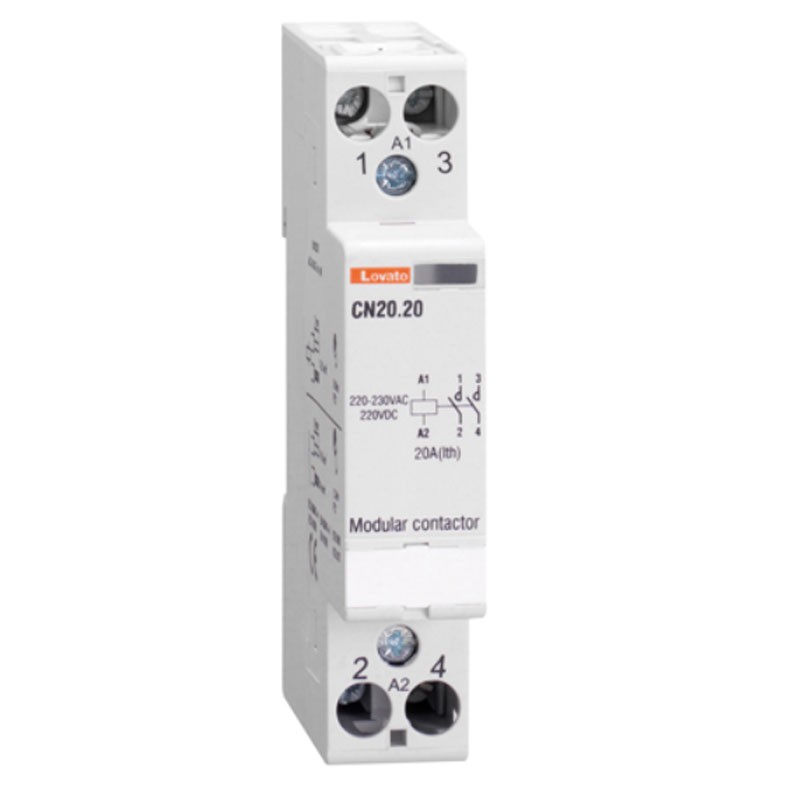

Lovato modular contactor 20A AC1 2NO 24VAC/DC 1 module CN2020024
LOV CN2020024
8013975143742
Lovato modular contactor, with the following characteristics:
- Type of operating voltage: AC/DC
- Number of poles: 2
- Number of DIN modules: 1
- IEC Conventional free air thermal current Ith: UN 20
- Operating current AC1 and AC-7a ≤400V UN: 20
- Operating current AC3 and AC-7b ≤400V UN: 9
- IEC/EN rated insulation voltage Ui: 440V
- Rated impulse withstand voltage Uimp Kv 4
- Minimum switching capacity: ≥17V ≥50mA
- Power dissipation per pole (average value) Ith: 1.7W
€23.67
Items Available: 53
: 26
Other technical features:
- Control circuit: rated auxiliary voltage Us 24 V AC/DC
- Auxiliary contacts: 2
- Mechanical life cycles: 3000000
- AC3 electrical life: 300000 cycles
- AC1 electrical life: cycles 200000
- Operating temperature:-25/+70°C
- Storage temperature: -30/+80°C
- Maximum altitude: m 2000
- Fixing: 35mm DIN rail
- Instrument Terminals: PZ2
- Weight: 135 grams
- Front IP rating: IP20
- Pollution degree: 3
Acquistato diverse volte, ottimo prodotto
Consigliabile in quanto a prezzo molto interessante rispetto ai contattori eqiuvalenhi di altre marche.
Data sheet
- Type: Contactors
- Voltage: 24VAC
- Poles: 2P
- Degree of protection: IP20
- Amps: 20A
