Lovato three-pole 32A coil contactor 230VAC BF3200A230
LOV BF3200A230
8013975161128

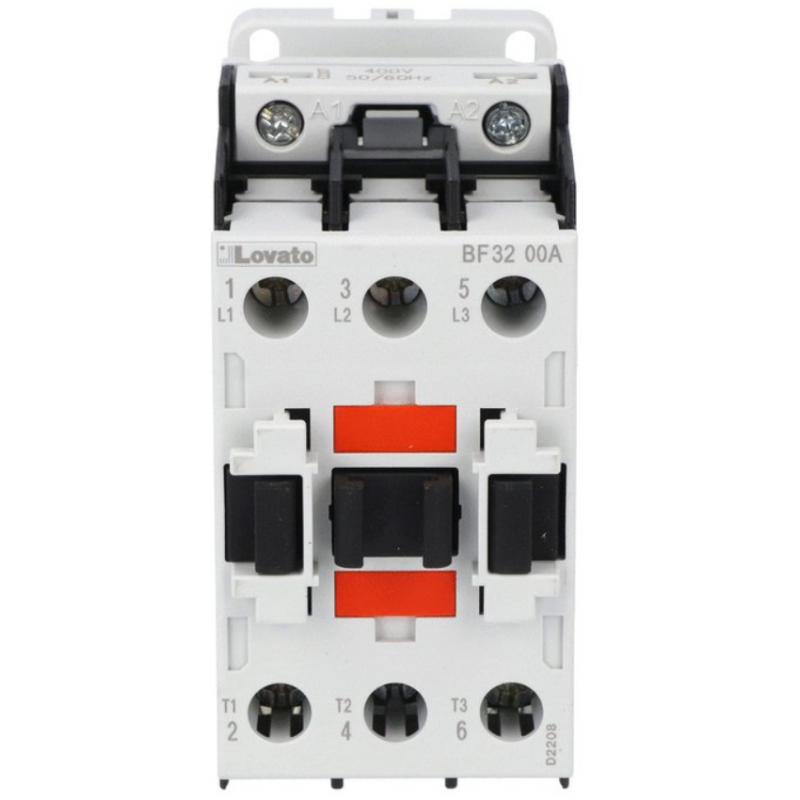

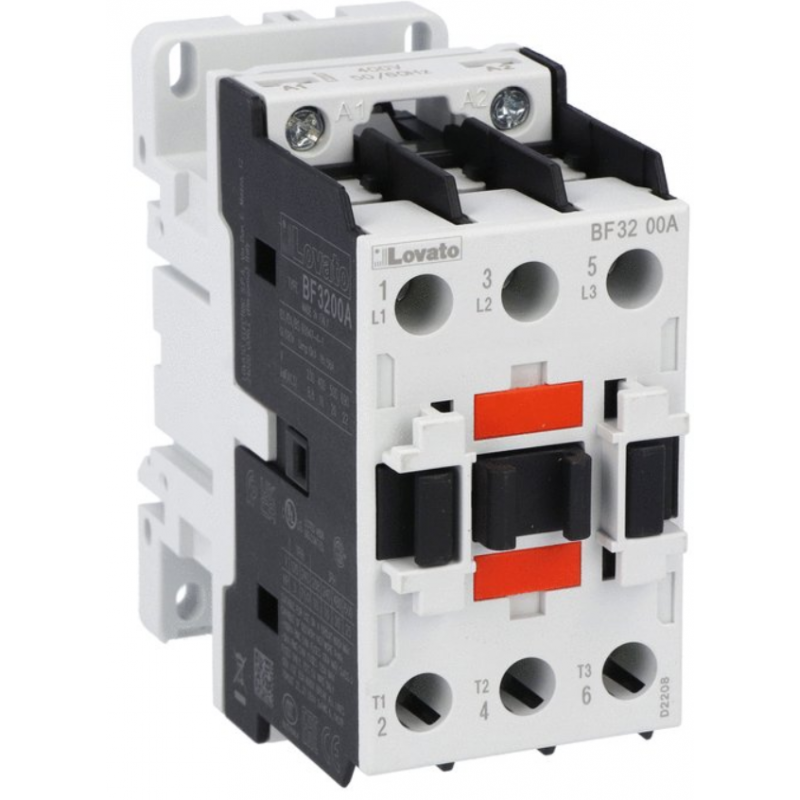

Lovato power three-pole contactor TYPE BF32, with the following characteristics:
- IEC/EN rated insulation voltage: 690V
- Rated impulse withstand voltage (Uimp): kV 6
- Frequency of use: min Hz 25 - max Hz 400
- Conventional free air thermal current Ith IEC: 56A
- Allowable short duration current 10s (IEC/EN 60947-1): 320A
- Operating current Ie (AC3) = 32A
- Number of poles: 3
- Resistance per pole (average value): mΩ 2
- Max number of conductors that can be installed simultaneously: 2
- Power terminal protection according to IEC/EN 60529: IP20 - wired
- Mounting position: normal vertical plane - allowed ±30°

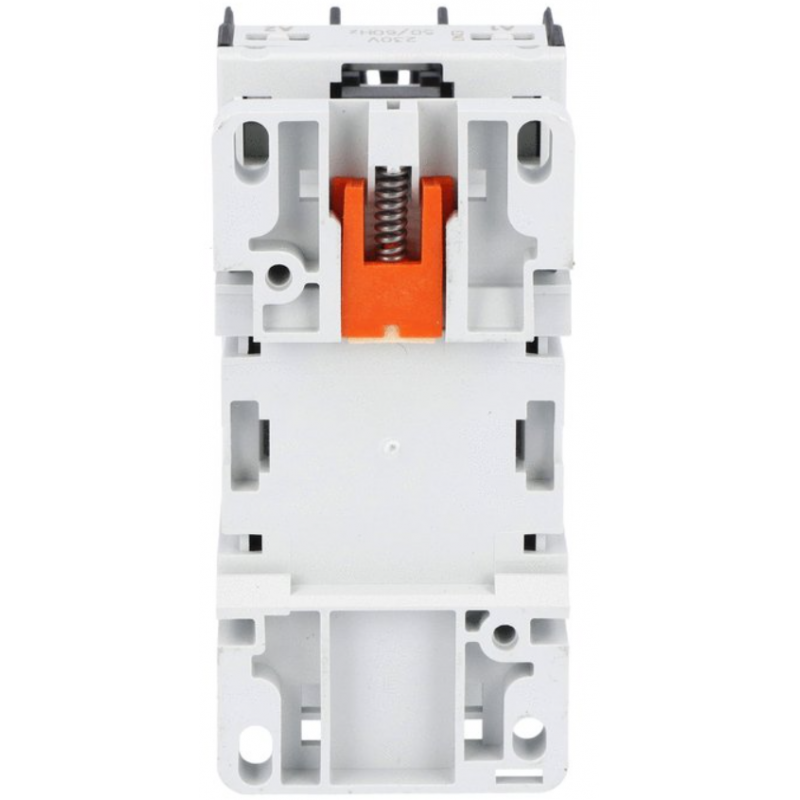

- Fixing: screw-on / 35mm DIN rail
€98.39
Items Available: 13
: 1
Other technical features:
- Weight: 424 grams
- Conductor cross section AWG/kcmil: max 6
- Maneuvering: mechanical life cycles 20000000 - electrical life cycles 1600000
- AC coil control: rated voltage at 50/60Hz: 230V
- Dissipation at ≤20°C 50Hz: 2.5W
- Maximum cycle frequency: mechanical operation: cycles/h 3600
- Operating temperature: °C -50/+°C 70
- Storage temperature :°C -60/+°C 80
- Maximum altitude: m 3000
- Pollution degree: 3
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Poles: 3P
- Amps: 32A
