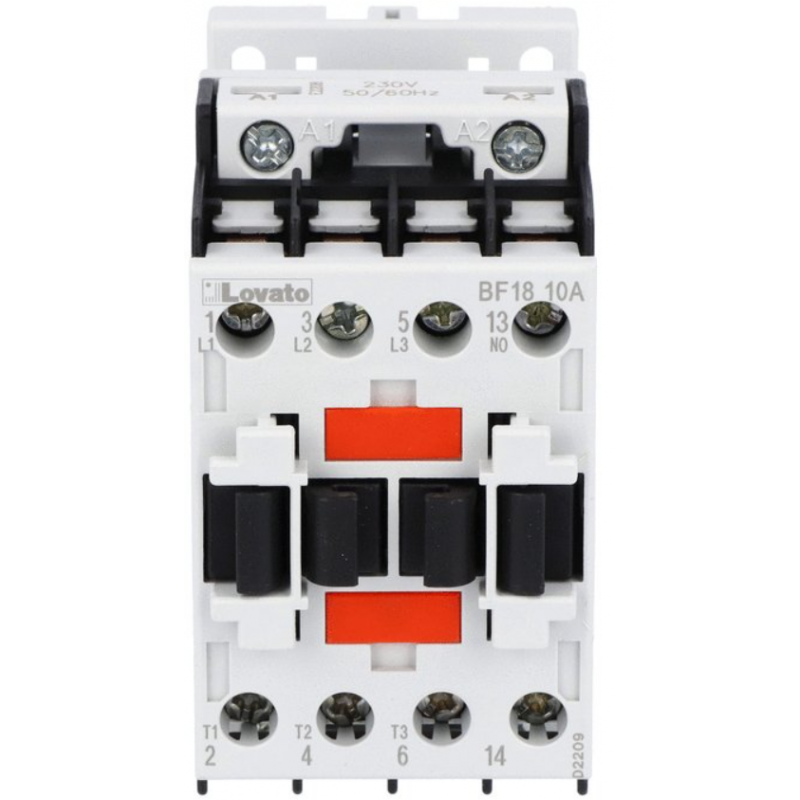

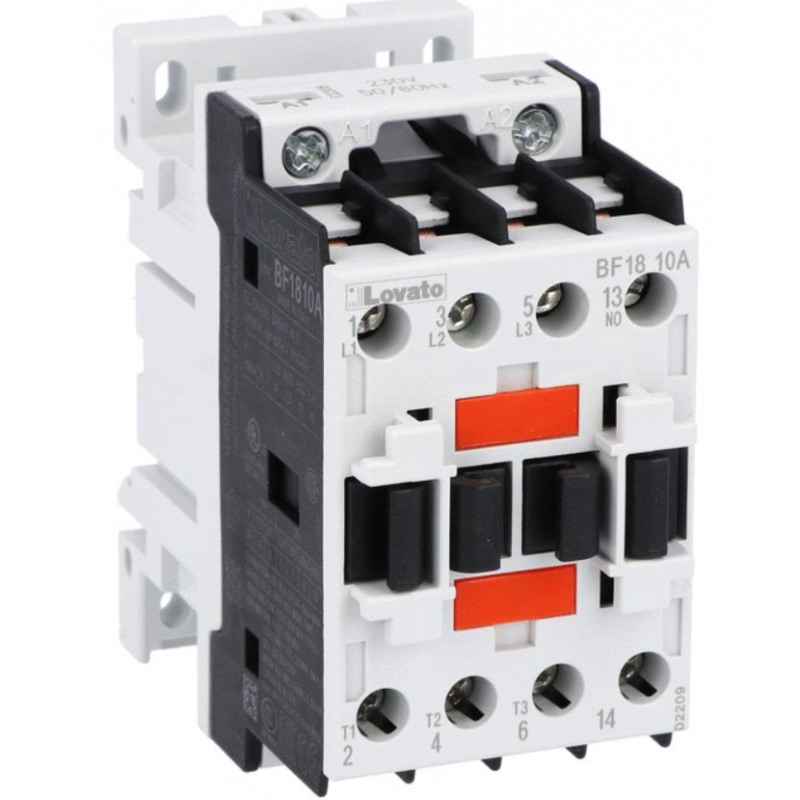

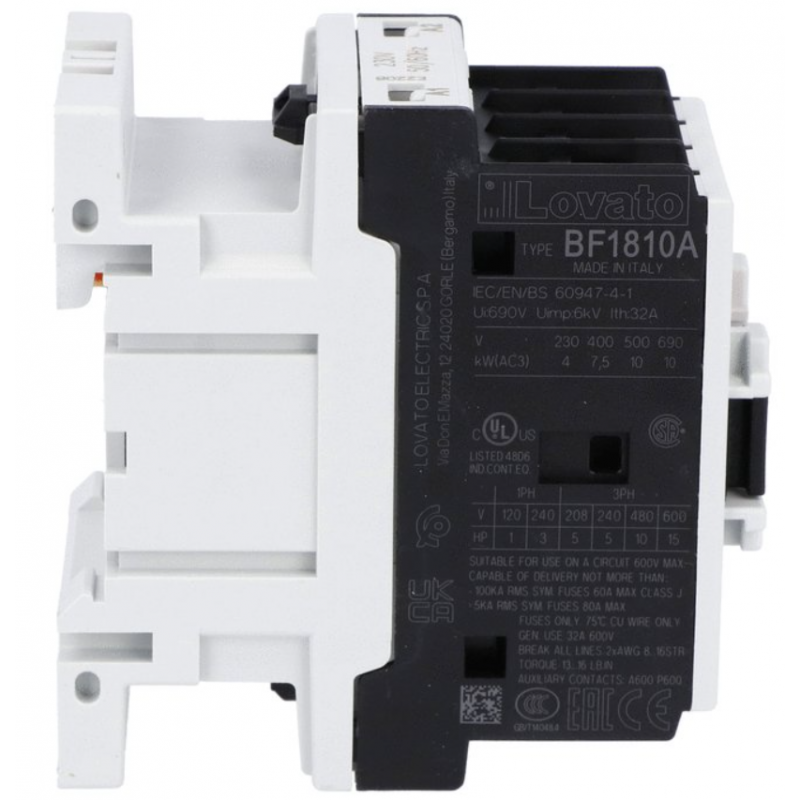

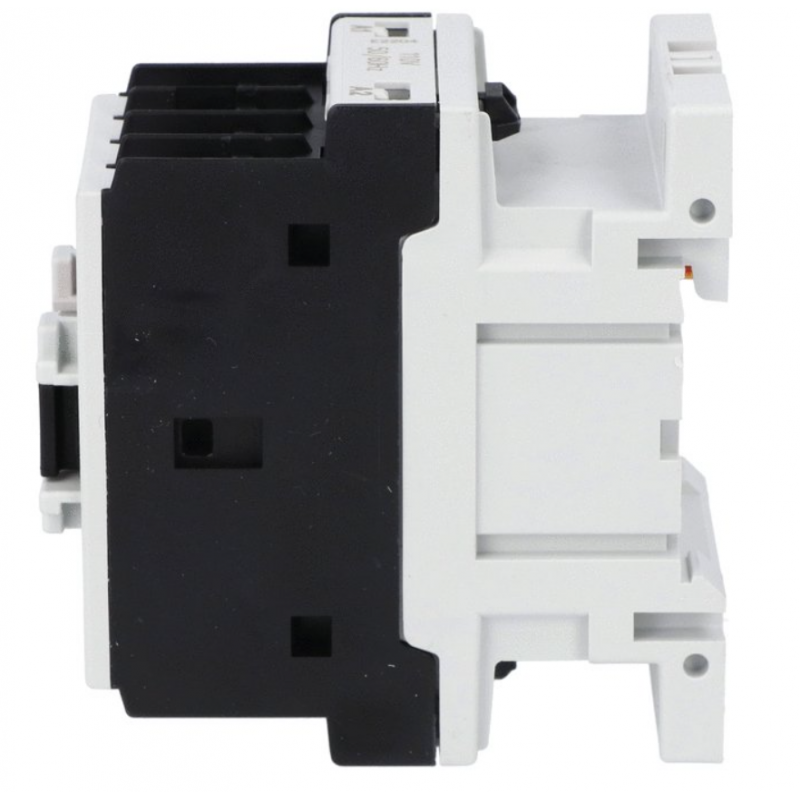

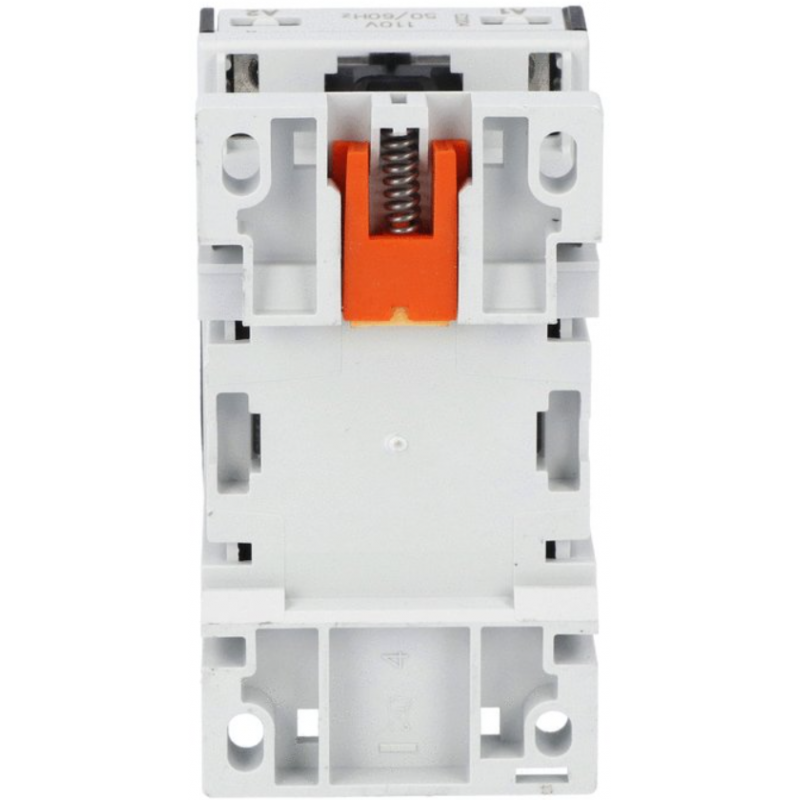

Lovato three pole contactor 18A 1 contact aux coil 400VAC BF1810A400

Lovato
Lovato
LOV BF1810A400 8013975160534

Lovato three-pole power contactor with the following characteristics:

  • Operating AC coil: Rated AC voltage at 50/60 Hz: 400V
  • Number of poles: 3
  • IEC/EN rated insulation voltage Ui: 690V
  • Rated impulse withstand voltage Uimp: kV 6
  • Operating frequency: min Hz 25 - max Hz 400
  • IEC Conventional free air thermal current Ith UN: 32
  • Resistance per pole (average value): Mω 2.5
  • Power dissipation per pole (average value): Ith 2.6W - AC3 0.8W
  • Maximum number of wires that can be connected simultaneously: 2
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato three pole contactor 18A 1 contact aux coil 400VAC BF1810A400
€38.47
€38.47

€38.47
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€38.47

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Power terminal protection according to IEC/EN 60529: IP20 when wired
  • Operating position: normal, vertical plane permissible ±30°
  • Mounting: screw / DIN 35mm rail
  • Performance level B10d according to EN/ISO 13489-1: nominal load cycles 1600000, mechanical load cycles 20000000
  • Mirror contact according to IEC/EN 609474-4-1: yes
  • EMC compatibility: yes
  • Dissipation at holding ≤20°C 50Hz: 2.5W
  • Mechanical operation: cycles/h 3600
  • Operating temperature: min °C -50, max °C+70
  • Storage temperature: min °C -60, max °C+80
  • Maximum altitude: m 3000
  • Pollution degree: 3
  • Weight: 367 grams

There are no reviews

Data sheet

Type:
Contactors
Voltage:
400VAC
Poles:
3P
Amps:
18A
