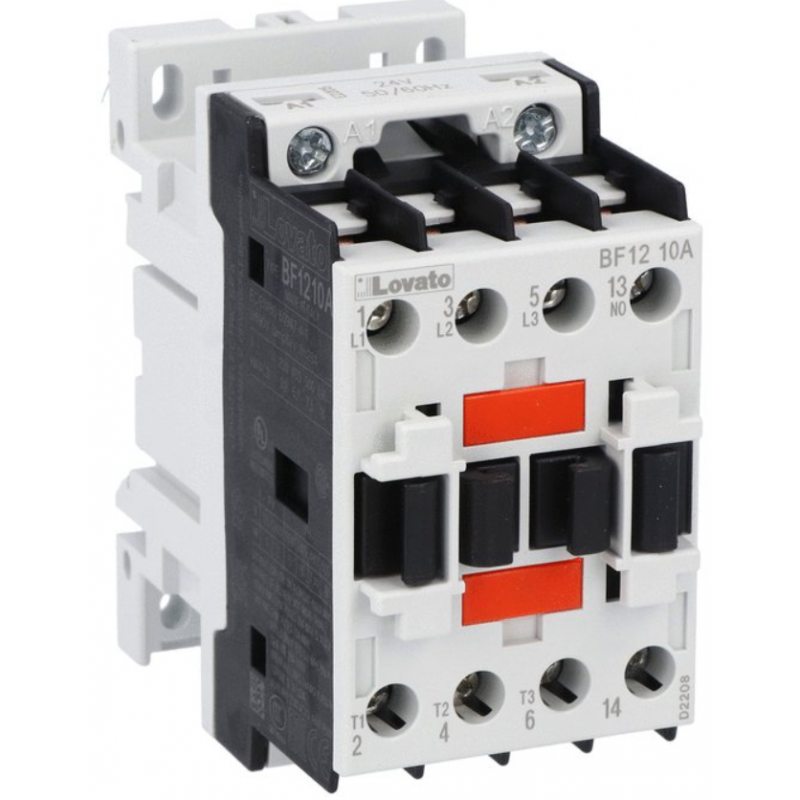

Lovato three-pole contactor 12A coil in AC 230VAC BF1210A230
LOV BF1210A230
8013975160282
Lovato BF12 three-pole power contactor, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Operating frequency: min Hz 25 - max Hz 400
- IEC Conventional free air thermal current Ith: UN 28
- Number of poles: 3
- Allowable short duration current for 10 s (IEC/EN60947-1): UN 150
- Output capacity (rms value): UN 120
- Resistance per pole (average value): mΩ 2.5
- Maximum number of wires that can be connected simultaneously: 2
- Operating position: normal vertical plane - allowable ±30°
- Fixing: screw / 35mm DIN rail
€31.31
Items Available: 57
: 3
Other technical features:
- Weight: 356 grams
- Conductor cross section AWG/kcmil: max 10
- Mechanical life: cycles 20000000
- Electrical life: cycles 2000000
- Performance level B10d according to EN/ISO 13489-1: rated load cycles 2000000, mechanical load: cycles 20000000
- Mirror counted according to IEC / EN 609474-4-1: yes
- EMC compatibility: yes
- Working AC coil: rated AC voltage at 50/60Hz: IN 230
- Dissipation at holding ≤20°C 50Hz: In 2.5
- Mechanical operation: cycles/h 3600
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Maximum altitude: m 3000
- Pollution degree 3
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Poles: 3P
- Amps: 12A
