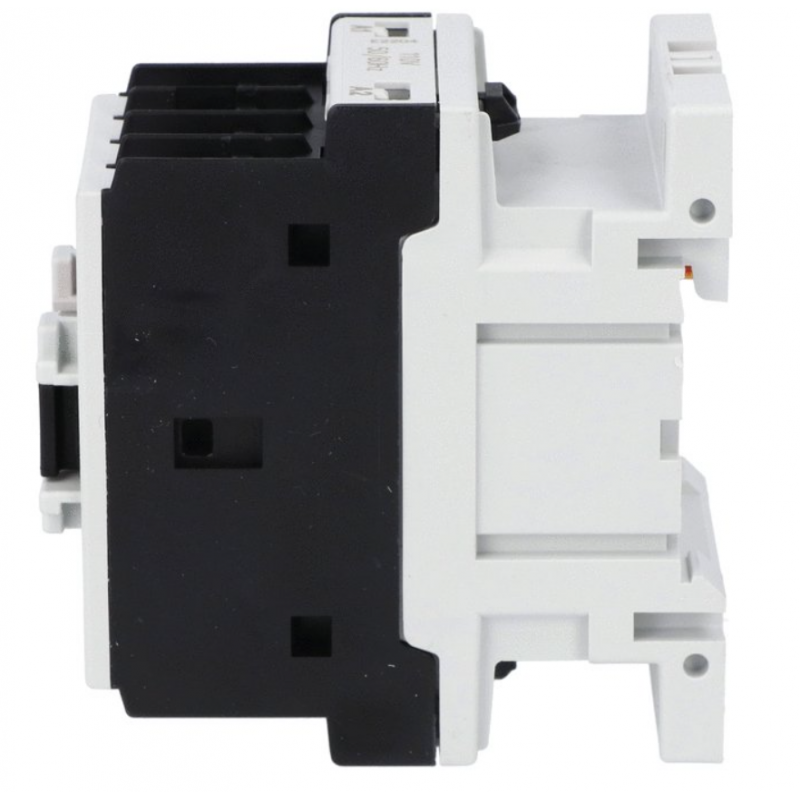

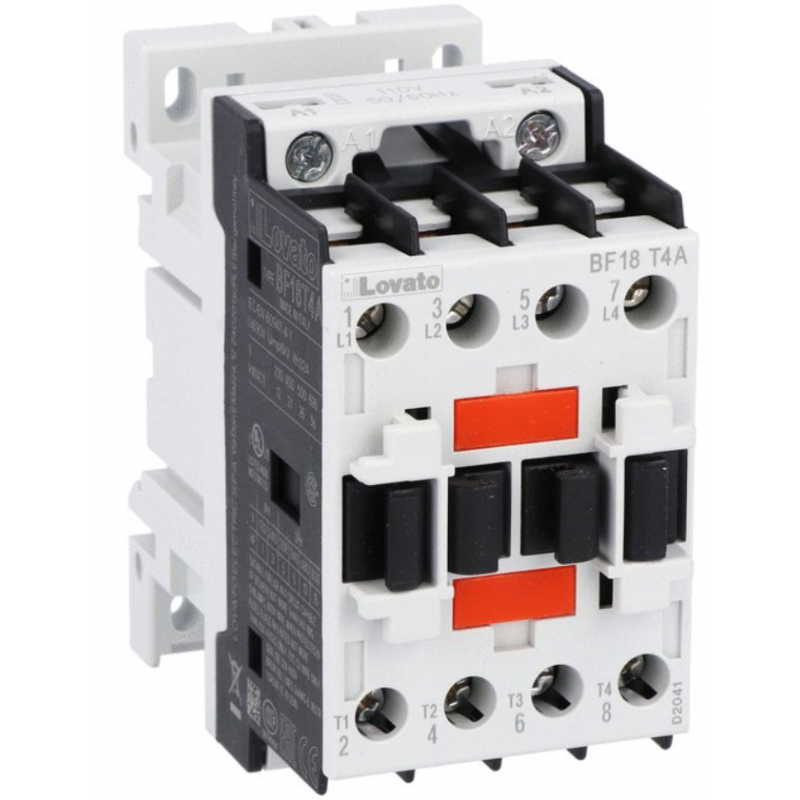

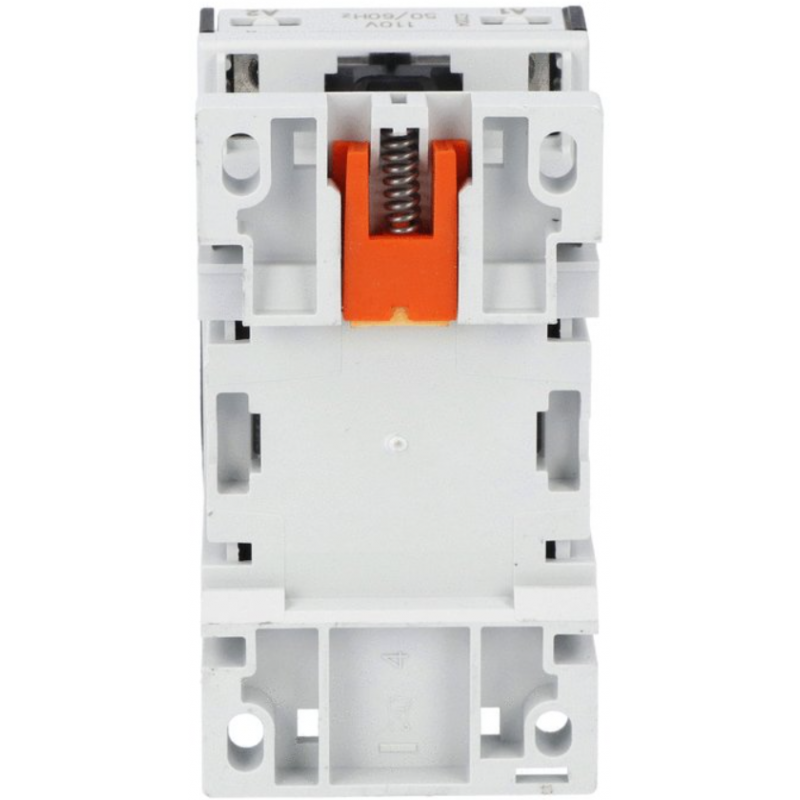

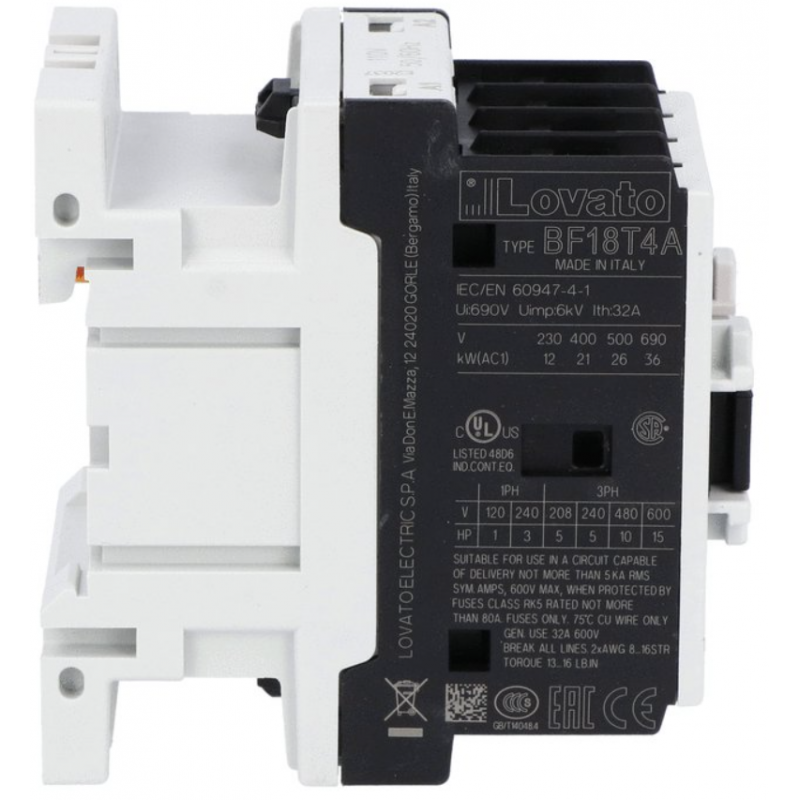

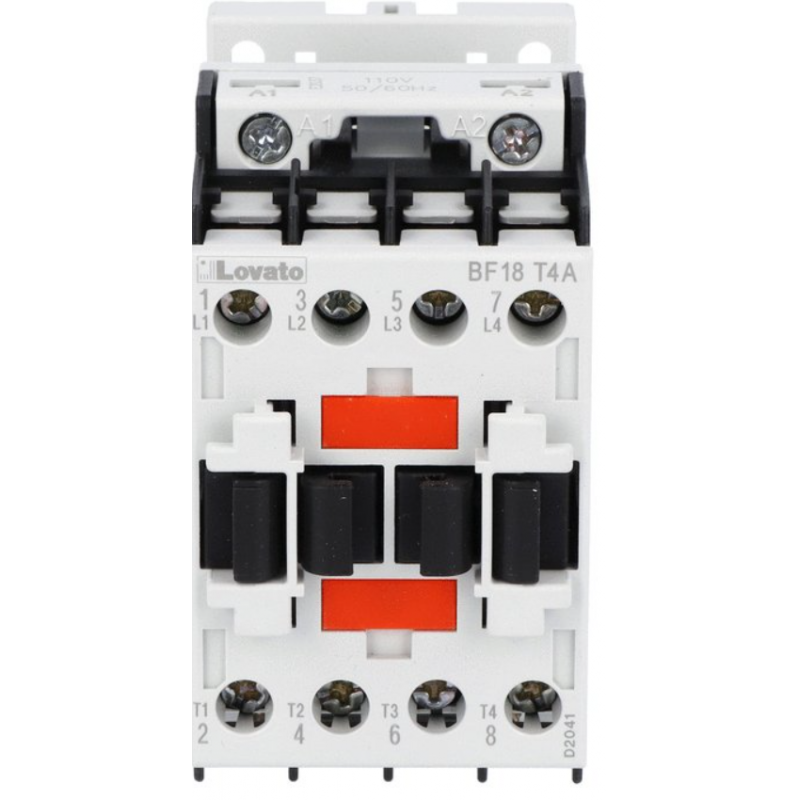

Lovato four-pole contactor 32A 24VAC coil BF18T4A024
LOV BF18T4A024
8013975161579
Lovato four-pole power contactor TYPE BF18, with the following characteristics:
- IEC/EN rated insulation voltage UI: 690V
- Rated impulse withstand voltage (Uimp): kV 6
- Frequency of use: min Hz 25 - max Hz 400
- IEC Conventional free air thermal current Ith: UN 32
- Allowable short duration current for 10 s (IEC/EN60947-1): UN 200
- IEC Operating current Ith (AC1) = 32A
- Number of poles: 4
- Max number of conductors that can be installed simultaneously: 2
- Resistance per pole (average value): mΩ 2.5
- Power terminal protection according to IEC/EN 60529: IP20 - wired
- Mounting position: Normal vertical plane - allowed ±30°
- Mounting: screw-on / 35mm DIN rail
€56.64
Items Available: 1
Other technical features:
- Weight: 366 grams
- Conductor cross section AWG/kcmil: max 10
- Maneuvering: mechanical life cycles 20000000 - electrical life cycles 1600000
- Working AC coil: 50/60 Hz AC operating voltage: IN 24
- Holding dissipation ≤20°C 50Hz: In 2.5
- Maximum cycle frequency: mechanical operation cycles/h 3600
- Operating temperature :°C -50/+°C 70
- Storage temperature :°C -60/+°C 80
- Maximum altitude: m 3000
- Pollution degree: 3
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24VAC
- Poles: 4P
- Amps: 32A
