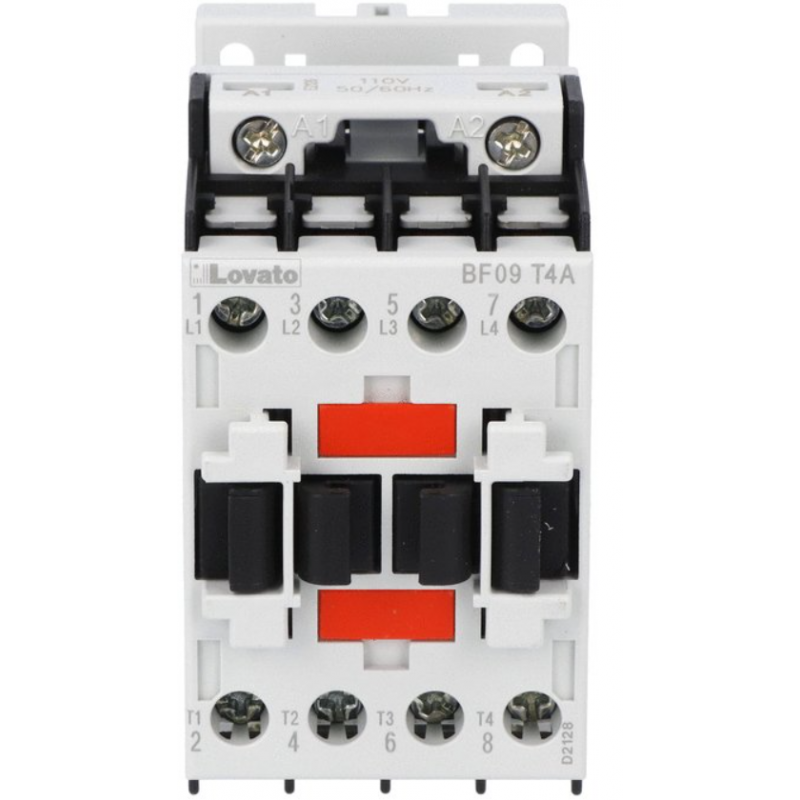

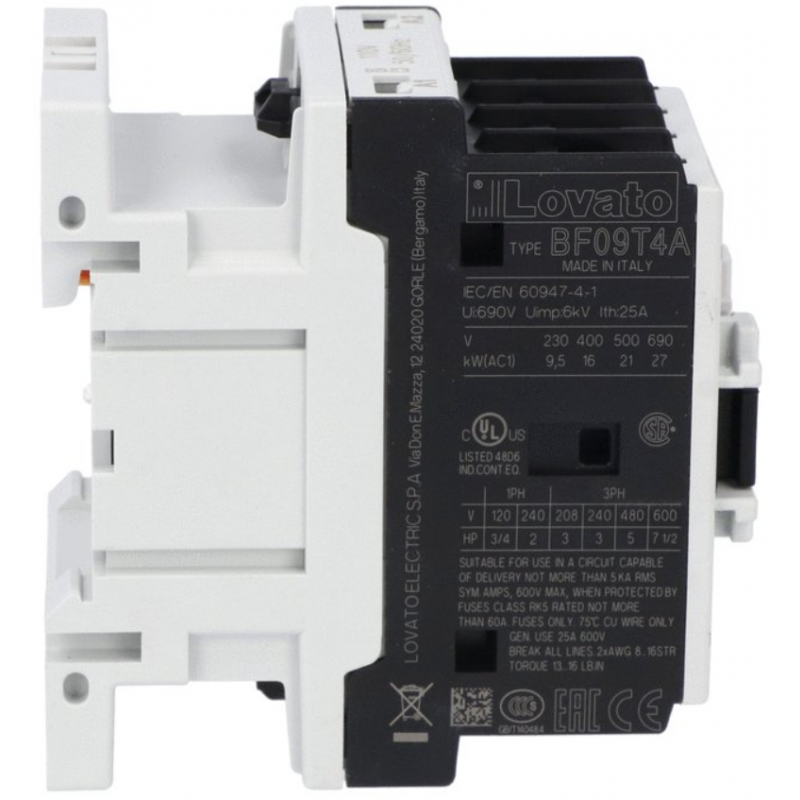

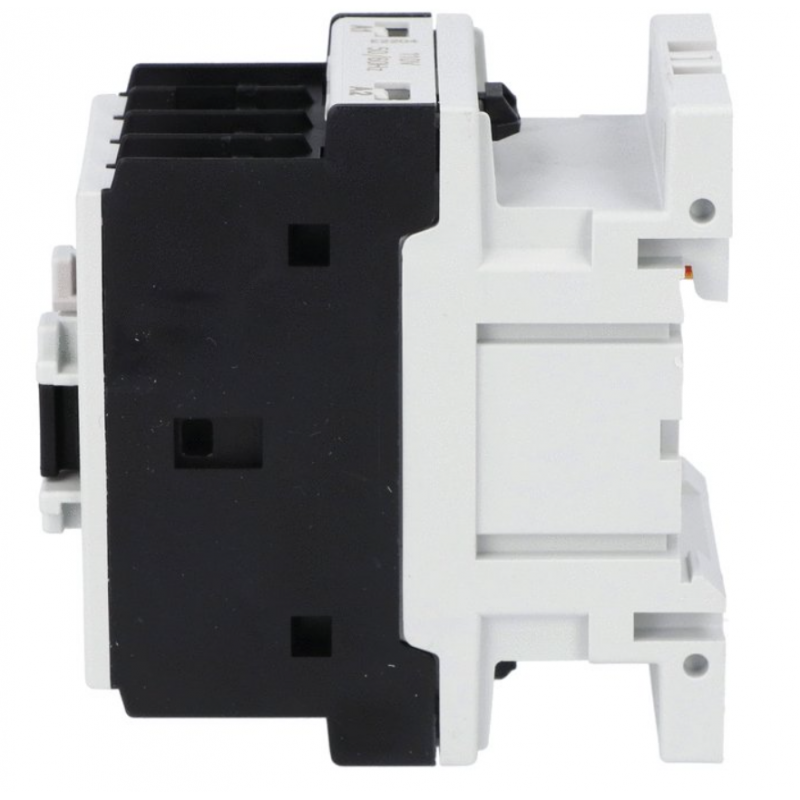

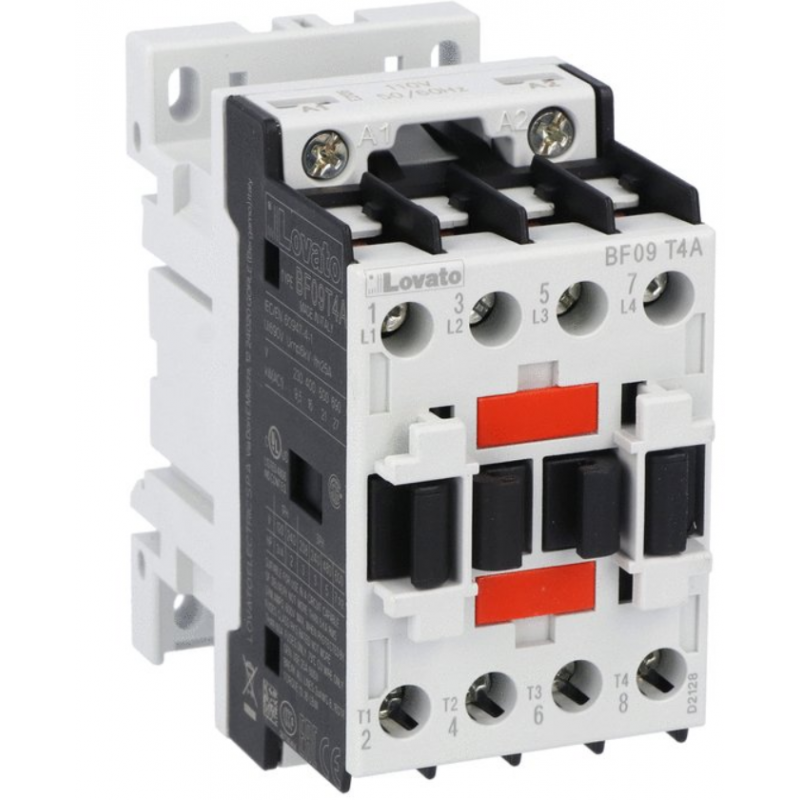

Lovato four-poles contactor 25A coil in AC 230VAC BF09T4A230
LOV BF09T4A230
8013975161364
Four-pole power contactor, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- IEC Operating current Ith (AC1) = 25A
- Operating frequency: min Hz 25 - max Hz 400
- IEC Conventional free air thermal current Ith: UN 25
- Number of poles: 4
- Allowable short duration current for 10 s (IEC/EN60947-1) UN: 150
- Maximum number of wires that can be connected simultaneously: 2
- Resistance per pole (average value): mΩ 2.5
- Protection of power terminals according to IEC/EN 60529: IP20 when wired
- Operating position: normal vertical plane - allowable ±30°

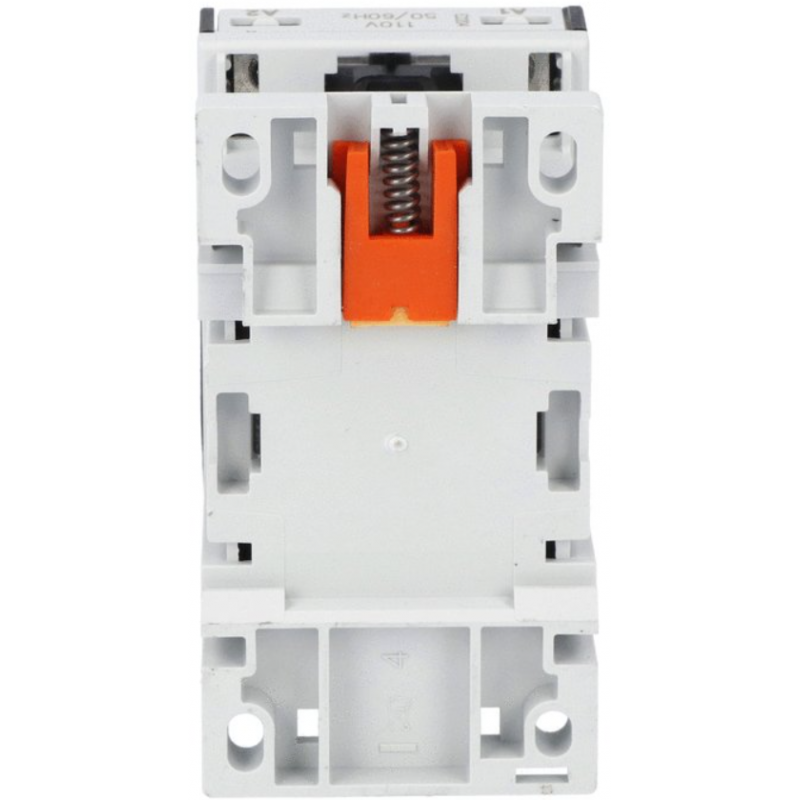

- Fixing: screw-on / 35 mm DIN rail
€36.29
Items Available: 3
: 2
Other technical features:
- Weight: 426 grams
- Conductor cross section AWG/kcmil: max 10
- Mechanical life: cycles 20000000
- Electrical life: cycles 2000000
- Performance level B10d according to EN/ISO 13489-1: rated load cycles 2000000, mechanical load cycles 20000000
- Mirror contact according to IEC/EN 609474-4-1: yes
- EMC compatibility: yes
- Working AC coil: rated AC voltage at 50/60Hz: 230V
- Dissipation at holding ≤20°C 50Hz: 2.5W
- Maximum cycle frequency: mechanical operation: cycles/h 3600
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Maximum altitude: m 3000
- Pollution degree 3
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Poles: 4P
- Amps: 25A
