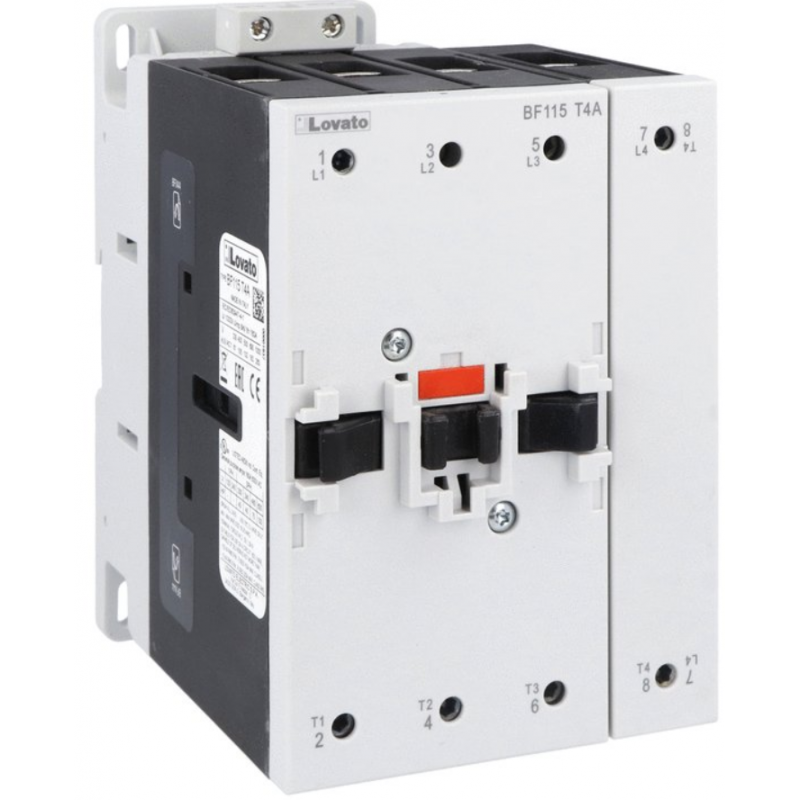

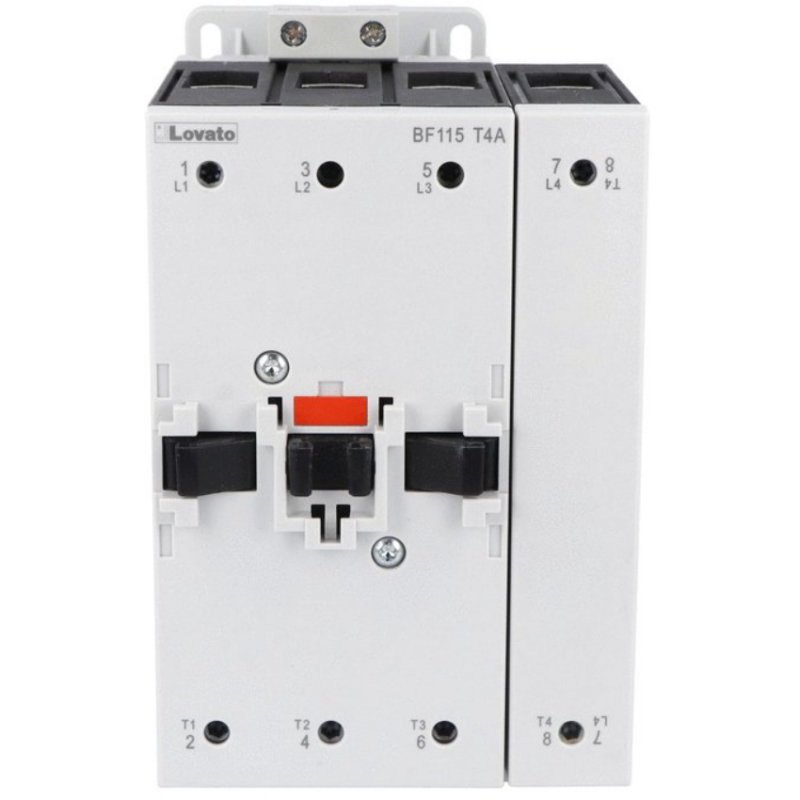

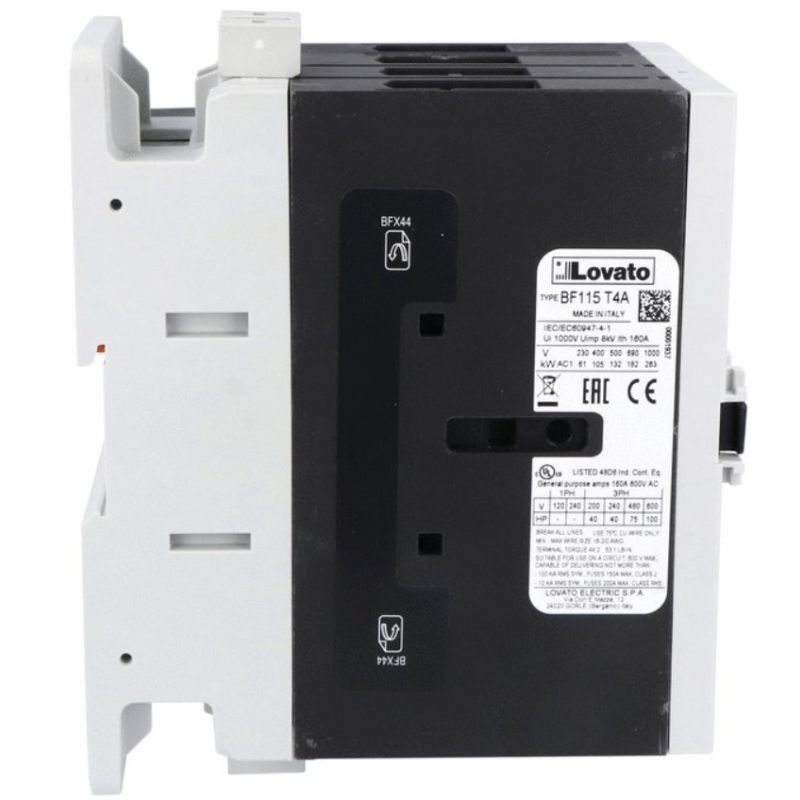

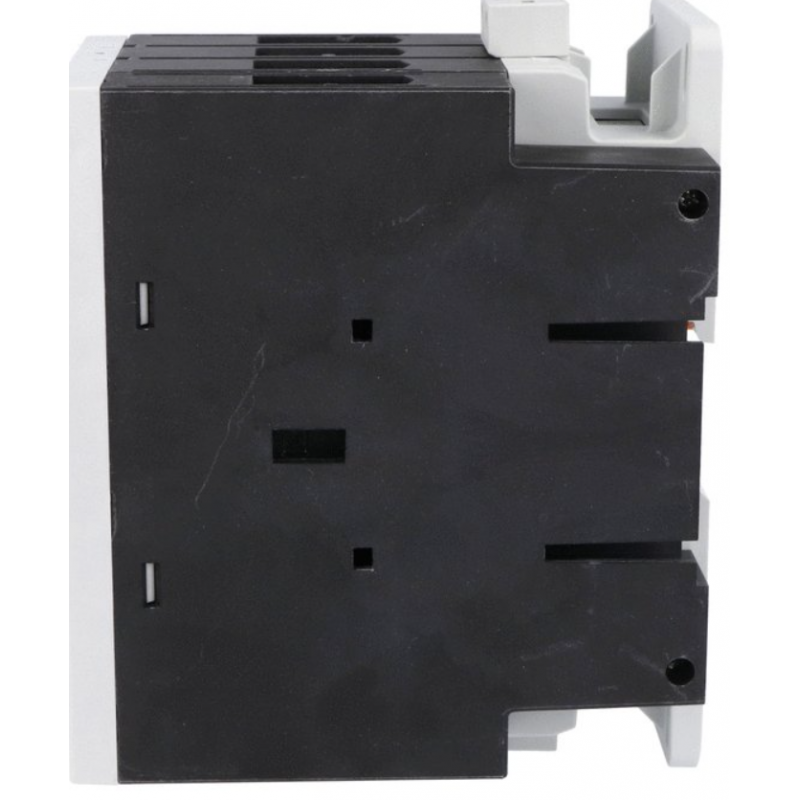

Lovato four-pole contactor 160A AC1 230VAC BF115T4A230
LOV BF115T4A230
8013975239322
Lovato four-pole power contactor TYPE BF115, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: 8 kV
- Operating frequency: min Hz 25 - max Hz 400
- 4 poles
- Operating AC coil: rated AC voltage at 50/60Hz: 230V
- IEC Conventional free air thermal current Ith: UN 160
- Allowable short duration current for 10 s (IEC/EN60947-1) UN: 920
- Resistance per pole (average value): mΩ 0.45
- Conductor cross section AWG/Kcmil: max 2/0
- Operating position: normal vertical plane - allowable ±30°

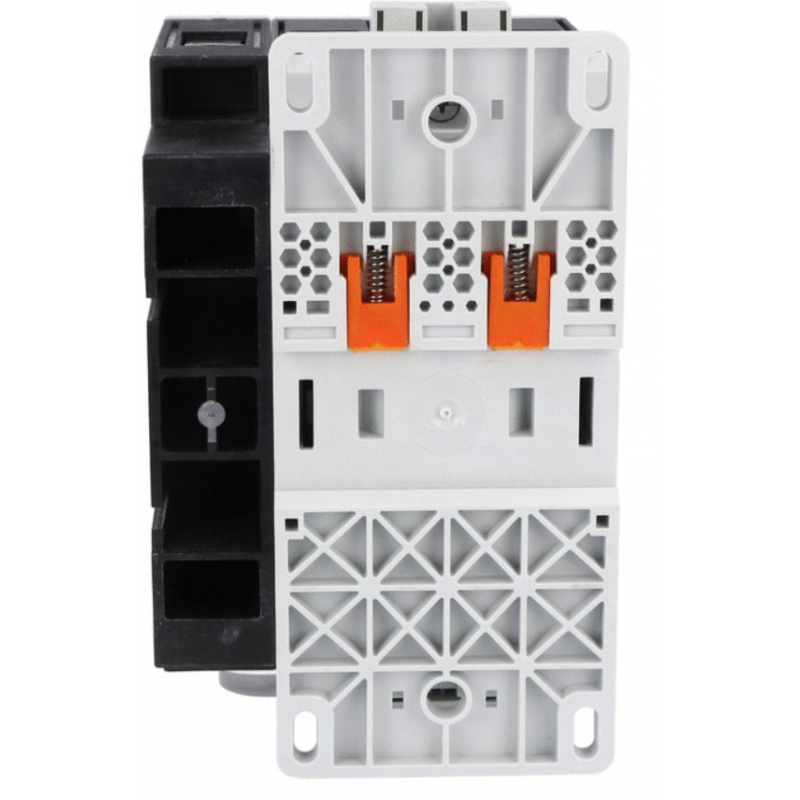

- Fixing: screw / DIN rail 35mm
- Mechanical life cycles: 150000 - electrical life cycles: 1200000
- Operating temperature: min -50C° - max °C +70
- Storage temperature: min °C -60- max °C+ 80
- Maximum altitude: 3000m
€349.53
Items Available: 2
Descrizione non trovata
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Poles: 4P
- Amps: 160A
