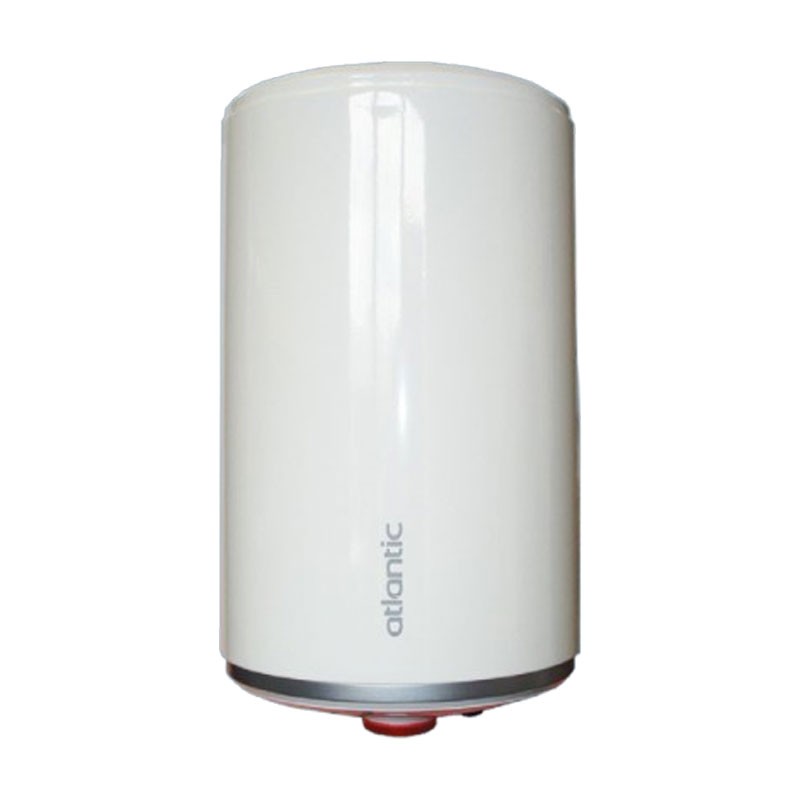

Atlantic Ego 10 Litre Electric Water Heater Vertical Over Sink
TIC 821246
3410538212467
Atlantic Ego 10L over-sink electric water heater: compact, durable and ready to use, ideal for small rooms with vertical installation.
-
Capacity 10 liters, vertical installation over sink
-
Energy class A
-
XXS loading profile
-
Tank with anti-corrosion "Diamond Quality" enameling
-

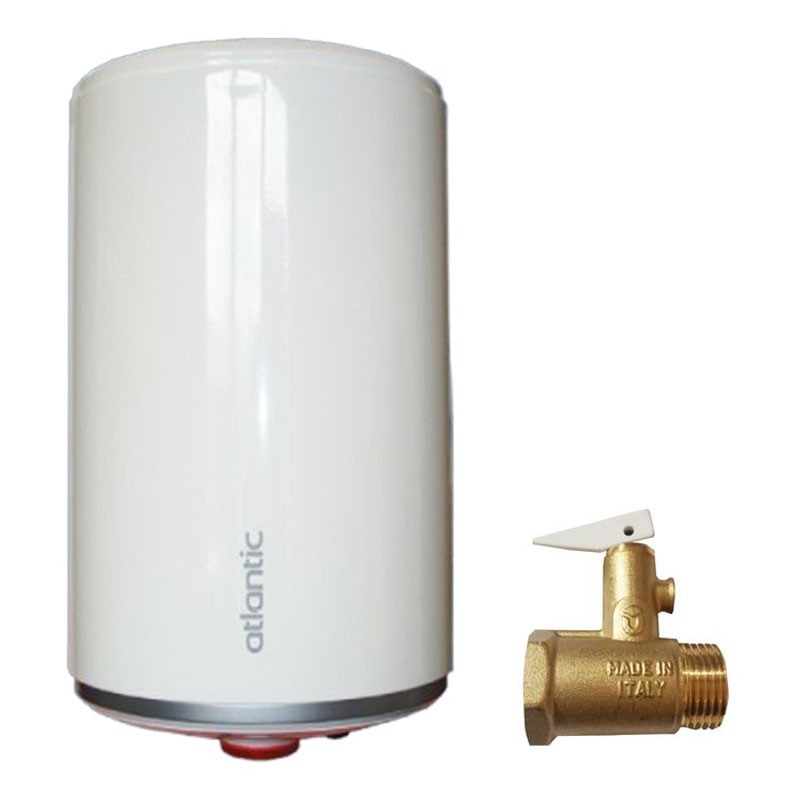

Equipped with cable, plug and 8-bar safety valve
-
Magnesium anode protection and inspectable flange
-
Compact design for small spaces
€70.57
Items Available: 15
: 13
Water heaters of the same series
Frequently bought together
Atlantic Ego water heater: Compact solution for instant hot water
The Atlantic Ego 10-liter water heater is designed for vertical installation above the sink, making it ideal for small rooms such as utility bathrooms, kitchens or secondary spaces. With an XXS load profile and energy class A, it is a perfect balance of performance, savings and compact size.
Durable protection against corrosion

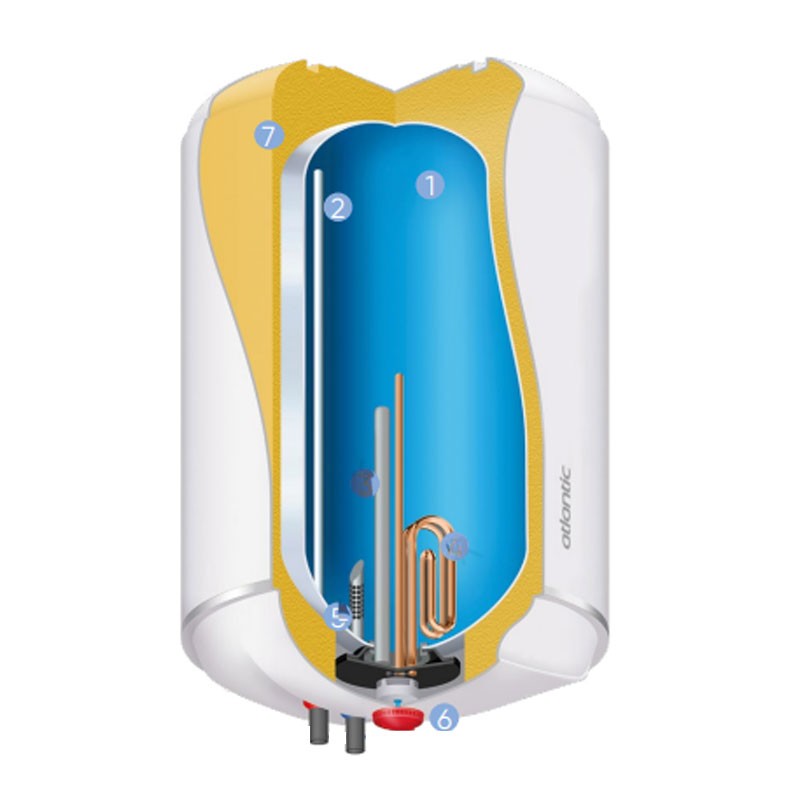

The inner tank features "Diamond Quality" enameling, an exclusive Atlantic technology that provides maximum protection against corrosion and extends the life of the appliance. Protection is further enhanced by the magnesium anode and flange with inspectable electrical heating element, which facilitates routine maintenance.
Complete equipment and easy installation
The water heater comes standard with cable, plug and 8-bar safety valve for easy installation. It has internal ROD thermostat with manual adjustment and reset for safety in case of overheating. Pilot light signals active operation, while built-in anti-legionella treatment improves water hygiene.
Quality materials and consistent performance
The product is constructed with steel fittings, immersion heater, cold water diffuser, and high-density foam insulation to reduce heat loss. These features make it a reliable, economical choice suitable for everyday use in the home or professional environment.
| Feature | Detail |
|---|---|
| Model | Ego 10L over sink |
| Capacity | 10 liters |
| Power consumption | 1200 W |
| Energy consumption (kWh/24h at 65°C) | 0,48 |
| Heating time at 35°C (Δt=20°C) | 0h13 |
| Heating time at 60°C (Δt=50°C) | 0h32 |

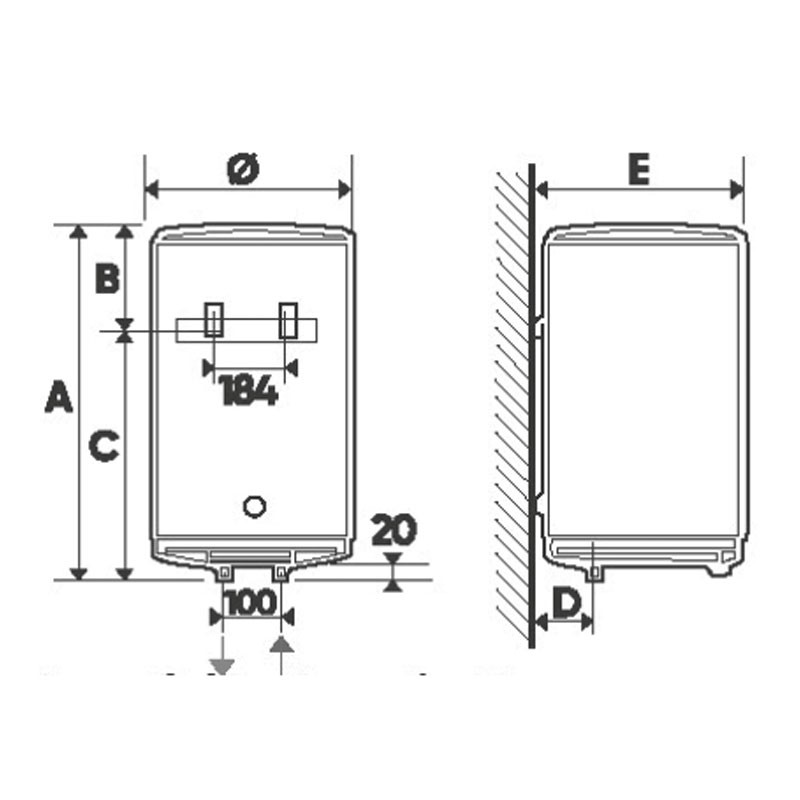

| Dimensions | Diameter 255 mm, Height 456 mm, Width 262 mm |
| Net weight | 8 kg |
| Inspection flange | Ø 72 mm |
| Installation | Vertical over sink |
| Energy class | A |
| Load profile | XXS |
| Voltage | 220-240 V |
| Resistance | Immersion |
| Protection | Magnesium anode + inspectable flange |
| Thermostat | ROD with manual reset |
| Accessories included | Cable, plug, 8 bar safety valve |
| Anti-legionella treatment | Manual |
| Insulation | High-density foam |
| Indicators | Pilot light |
| Construction | Diamond Quality enameling, steel fittings |
tres bon produit je le recommande facile a poser bon
Produit qui me paraît de qualité. Pour l'instant fonctionne parfaitement; à voir dans le temps.
L'isolation de ce chauffe-eau est en polystyrène expansé et non pas extrudé comme dans tous les autres. Résultat, il ne garde pas la chaleur bien longtemps et donc consomme beaucoup. Je le garde car c'est le seul qui rentre dans l'espace que je lui avais réservé.
Le filetage du tuyau de sortie d'eau chaude était abimé par un coup de soudure à l'arc et un boulon avait été "oublié" dans la cuve pendant la construction.
Je ne peux pas juger du service d'Elettronew car je l'ai réparé moi-même.
Conforme à mes attentes, rapide à monter
Works well and fits to its place in the garage.
Petit chauffe eau très bien bonne qualité facile à installer
Data sheet
- Type: Water heaters
- Model: Electric
- Installation: Above Sink
- Capacity: 10 Liters
- Energy class: A
- Series: Ego
