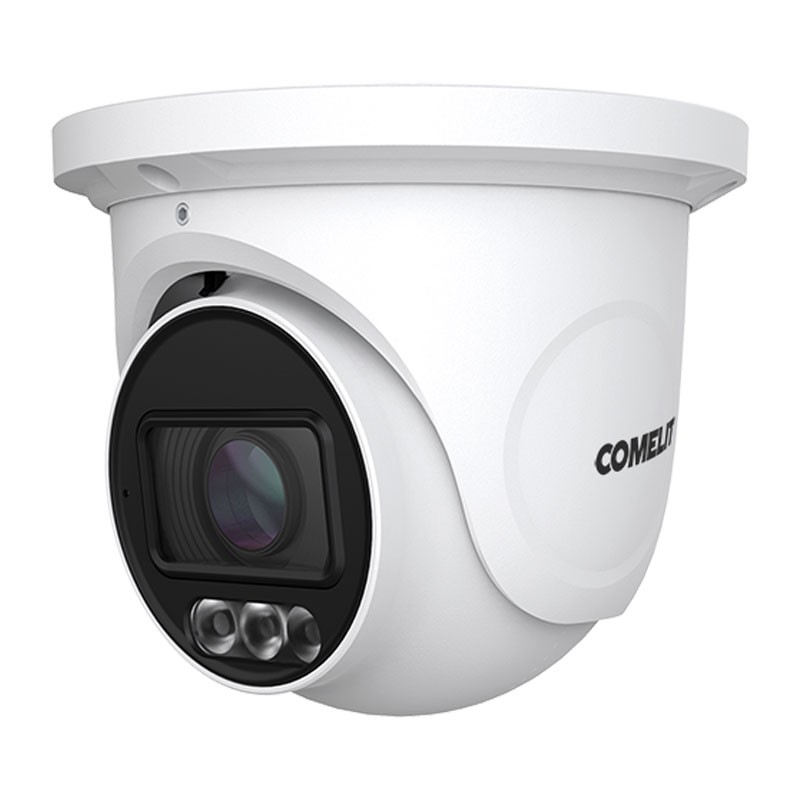

Comelit ColorUp Turret IP Camera 4MP Motorized Optics 2.8-12mm IT04N2ZA
COE IT04N2ZA
8023903462005
Comelit ColorUp IP turret camera with IR LED and 30m white light, built-in microphone and advanced AI functions. Color vision even at night, for outdoor environments, with the following features:
-
Resolution: 4MP Ultra Starlight at 30 fps
-
Lens: Motorized varifocal 2.8-12mm
-
Technology: ColorUp with Dual Light (IR + white LED)
-
Night Vision: 30 m - IR and White LED
-
Power supply: 12VDC / PoE IEEE802.3af
-
Degree of Protection: IP67
-
MicroSD slot: Up to 256GB
-
Built-in microphone + 1 audio input
-
Intelligent video analysis (people/vehicles)
€177.52
Items Available: 22
Frequently bought together
Comelit ColorUp technology camera: color night vision
The ColorUp camera delivers sharp color images even in the absence of light, thanks to its built-in white Led illuminator and Dual Light technology, which automatically switches from IR mode to visible light depending on the type of detection (person or vehicle). Ideal for critical or low-light environments.
Motorized varifocal optics: flexibility and precision
Equipped with motorized optics from 2.8 to 12 mm, this IP turret allows remote adjustment of framing, adapting perfectly to urban, commercial or residential surveillance contexts. The field of view ranges from 31° to 92° horizontal, offering excellent coverage.
Connections and compatibility
Compatible with major browsers (Chrome, Edge, Firefox, Safari) and can be integrated via ONVIF into the most common NVRs and VMSs. Supports triple streaming and can be managed by Comelit CCTV Manager or via Comelit CCTV mobile app.
Intelligent AI video analytics functions
The camera integrates advanced AI-based features for real-time video analysis, including:
-
Intrusion and line-crossing detection (with human/vehicle distinction)
-
Detection of abandoned or removed objects
-
Blurred image or modified scene detection
-
Up to 4 configurable privacy zones
-
BLC compensation, 120dB WDR and 3D-DNR for consistently clear images
Recommended applications
-
Access control in condominium or commercial areas
-
Urban video surveillance and parking lots
-
Industrial perimeters and outdoor environments
-
Night monitoring in environments without lighting
Technical Specifications Comelit Turret IP Camera
Main Features
| Camera Sensor | 1/3" CMOS Ultra Starlight |
| Lens Type | Motorized |
| Effective Pixels (H × V) | 2560 × 1440 |
| Varifocal lens size | 2.8 - 12 mm |
| Horizontal field of view | 92° ÷ 31° |
| Vertical field of view | 48° ÷ 17° |
| Diagonal field of view | 112° ÷ 35.6° |
| Electronic shutter | 1/1 ÷ 1/100000 s |
| Sensitivity | 0.0005 (color), 0 (B/W, LED IR ON) |
| Video transmission | Triple streaming |
| Management software | Comelit CCTV Manager |
| Video resolution | 4MP |
DORI (Detect - Observe - Recognize - Identify)
| Detection | 64 ÷ 189 m |
| Observation | 26 ÷ 75 m |
| Recognize | 13 ÷ 38 m |
| Identification | 6 ÷ 19 m |
Software/Firmware Features
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Frame rate | 30 fps |
| Supported protocols | DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, QoS, RTSP, UDP, P2P, ONVIF, SNMP |
| Firmware Upgrade | Via network |
| Connected users | 3 (live) |
| Remote viewing | Edge, Firefox, Chrome, Safari |
| Remote control from mobile | Comelit CCTV App |
| Firmware | v5.2.2 (44436) - 2024-05-13 |
Features
| Main functions | 3D-DNR, BLC |
| Motion detection | Yes |
| Video analysis | Scene detection, tampering, line crossing (human/vehicle dist.), abandoned/removed object, area intrusion (human/vehicle dist.), blurred image |
| Privacy zones | 4 |
| Light Compensation (BLC) | Yes |
| Digital effects | Corridor mode (90°/180°/270° rotation), ROI zones |
| WDR | 120 dB |
| DNR | 3D-DNR |
| White Balance | Automatic, Indoor, Manual, Outdoor |
| Exposure control | Manual, Automatic |
| Brightness adjustment | Yes |
| Camera titration | Yes |
Hardware Features
| IR illumination distance | 30 m |
| White LED illumination distance | 30 m |
| Vandal-proof grade | IK10 (metal case) |
| IP rating | IP67 |
| Audio Inputs/Outputs | 1 input + microphone / 0 outputs |
| LAN output | Ethernet 10/100 Mbit/s (RJ45) |
| SD card support | Micro-SD (up to 256 GB - not included) |
General Data
| Power Supply | 12VDC / PoE (IEEE 802.3af) |
| Max. power consumption | 9 W |
| Power supply type | PoE or external power supply |
| Diameter | 130 mm |
| Height | 110 mm |
| Weight | 660 g |
| Material | Die-cast aluminum |
| Case type | Turret |
| Color | White |
| Operating Temperature | -30°C TO +60°C |
| Operating humidity | 25% ÷ 95% RH |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8-12mm
- Resolution: 4MP (2K)
