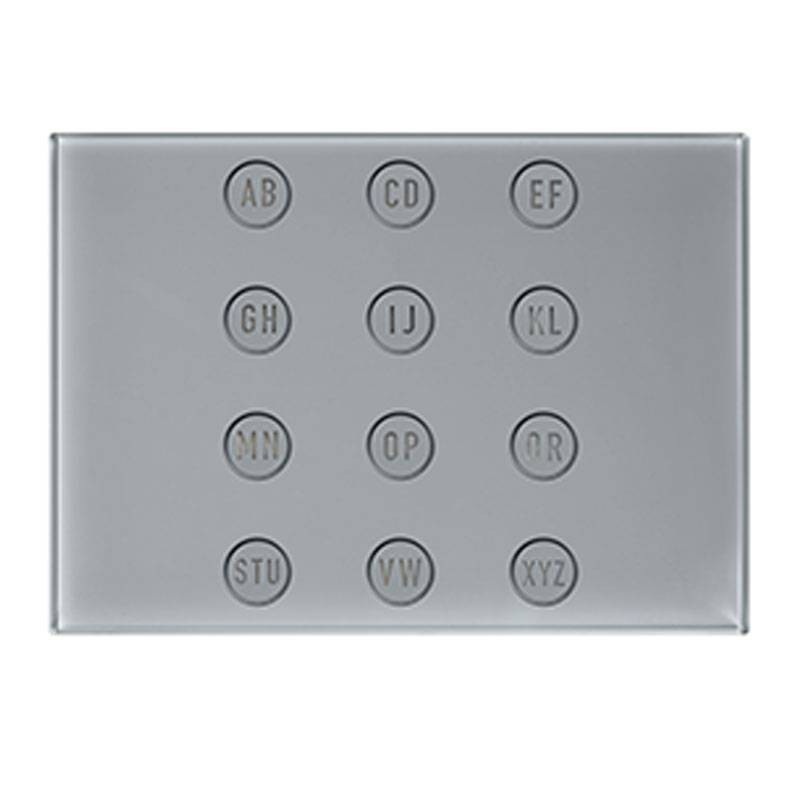

Urmet Alpha Alphabetic Keypad Door Opener Module colour Grey 1168/49G
UTD 1168/49G
8021156074891
Urmet Alpha Alphabetic Keypad Door Opener Module with the following features:
- Complete with screen-printed thermoplastic front panel.
- Keys are equipped with LEDs for backlighting
- Connection via flat cable supplied with frames
- Dimensions 124 x 90 mm
- Colour: Grey
The Alpha alphabetic keypad module is used in conjunction with the 1168/1 display module, an audio or audio/video door station, and an 1168/46 numeric keypad to dial a digital call button panel. Allows you to have call codes composed of numbers and letters. Connection to other modules by flat cable provided.
€185.31
Items Available: 6
: 2
Frequently bought together
The 1168/49 alphabetic keypad module is a Mod. 1168 push-button panel device that can be used in 2Voice systems only when in conjunction with the following devices:
- Audio door station module (art. 1083/38) or audio video (art. 1083/48)
- Display module art. 1168/1
- Numeric keypad module art. 1168/46
In Ipercom systems when combined with the following devices:
- IP audio video door station module art. 1060/48
- Display module art. 1168/1
- Numeric keypad module art. 1168/46
It is suggested to clean the front panel with a damp non-abrasive cloth. Do not use liquids containing alcohol or glass cleaning products. Give power to the device only after it has been properly installed. When turning on the power, the keypad must not be touched.
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
