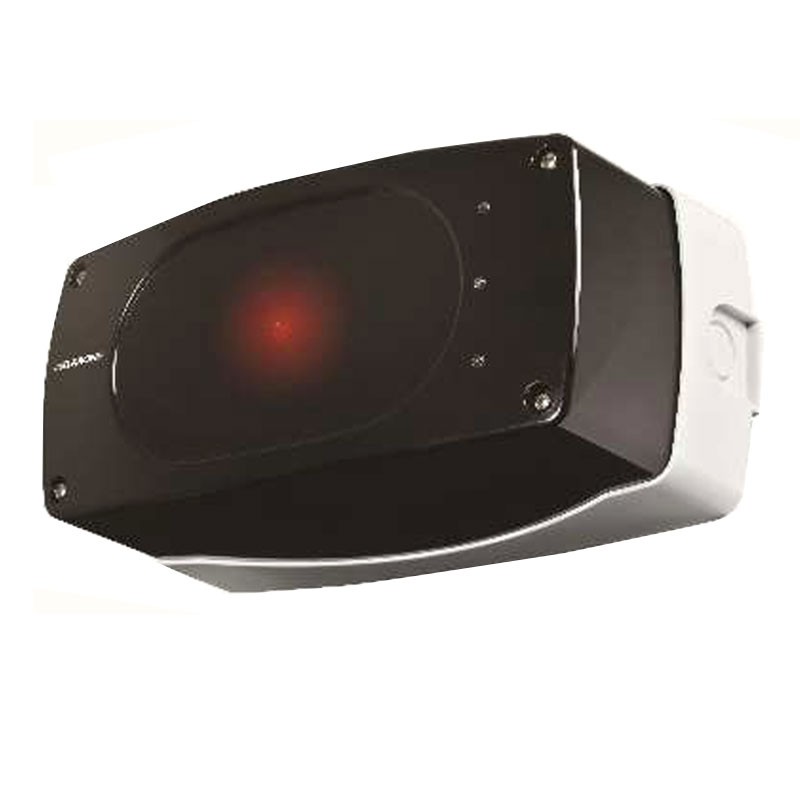

Urmet reflection smoke detector with max range 100mt
UTD 1043/209
8021156026395
Urmet linear reflection smoke detector , with the following features:
- Supply voltage: 10.8 ÷ 26.8Vdc
- Idle consumption @24Vdc: 55mA
- Idle consumption @12Vdc: 45m
- Consumption in alarm @24Vdc: 50mA
- Consumption in alarm @12Vdc: 40mA
- Consumption at fault @24Vdc: 35mA
- Consumption in fault @12Vdc: 30mA
- Pre-alarm dimming thresholds: 20%, 25%, 30%, 35%
- Alarm dimming threshold: 35%
- Minimum operating distance: 5 meters
- Maximum operating distance: 100 meters
- Transmitter beam wavelength: 890nm
€469.45
Items Available: 9
: 2
Frequently bought together
The linear smoke detector is particularly suitable for meeting applications in the field of cultural heritage protection, such as: museums, churches, historical buildings, art exhibitions, etc.
Its operating principle is based on the interaction between smoke present in an environment generated by a fire principle and an infrared beam emitted and reflected by a special optical reflector.
Depending on the reflector used, its range of coverage varies.
Other technical features:
- Beam misalignment tolerance: ±1°
- Pre-alarm relay 1A, 30Vdc resistive load-NO/NC contact selectable via jumper
- Alarm relay 1A, 30Vdc resistive load - jumper selectable NO/NC contact
- Fault relay 1A, 30Vdc resistive load - jumper selectable NO/NC contact
- Conventional line - input voltage range: 10 to 20Vdc
- Conventional line - absorption in pre-alarm: 20mA @20Vdc
- Conventional line - absorption in alarm: 40mA @20Vdc
- Conventional line - reset pulse duration: 200mS
- Operating temperature: (-10 ± 3)°C ÷ (55 ± 2)°C
- Relative humidity: (93 ± 3)%
- Degree of protection: IP55
- Dimensions: 248 (W) x 122 (H) x 120 (D) mm
- Weight: 900 grams
There are no reviews
Data sheet
- Type: Smoke detectors
