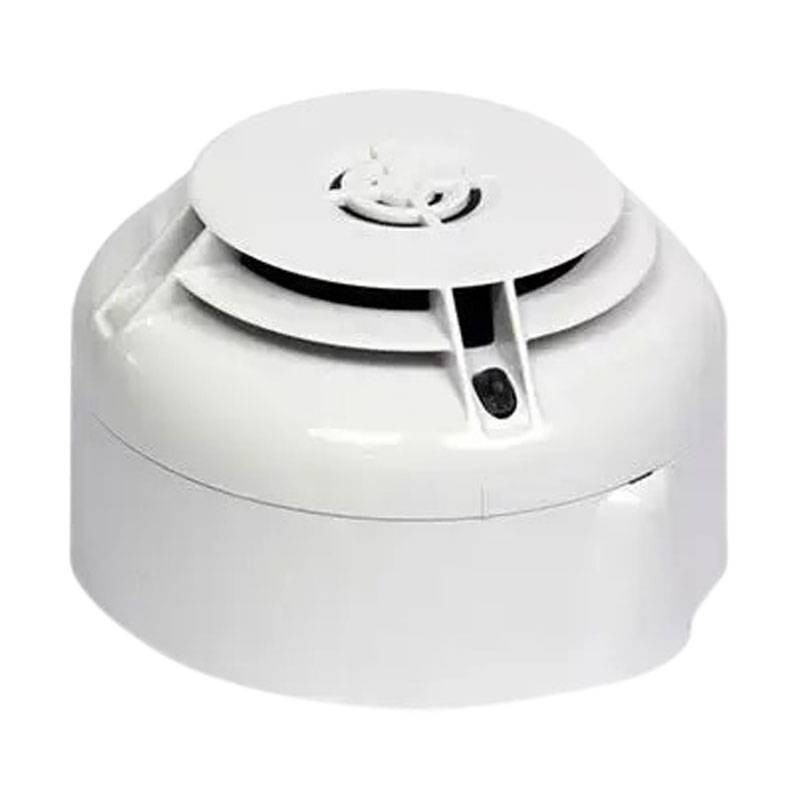

Battery-powered Wireless Notifier Optical Smoke Sensor NRX-OPT
NOT NRX-OPT
Notifier Optical Smoke Sensor is a battery-powered radio frequency device designed for integration with the NRXI-GATE radio gateway. This sensor is ideal for inclusion in an addressable fire alarm system and is distinguished by its ability to detect the presence of smoke via optical technology, with the following features:
-
Optical technology: Advanced smoke sensor for accurate detection
-
Easy installation: Compatible with B501RF base for ceiling mounting
-
Long battery life: Up to 4 years with Duracell Ultra 123 batteries
-
Reliability: Compliant with EN54-25 and EN54-7 standards for enhanced safety
-
Stable communication: 865-870 MHz radio frequency with RF output power of 14 dBm
€223.82
Items Available: 21
: 15
Frequently bought together
Sensor Notifier Optical detection technology for greater accuracy
The sensor uses optical technology for smoke detection, which provides rapid and reliable response in the event of a fire. This technology is particularly suitable for environments where early smoke detection is critical to ensure the safety of people and structures. Radio frequency communication, via the NRXI-GATE gateway, ensures that the system operates smoothly and without interruption.
Quick and easy installation
The sensor is designed for easy ceiling installation due to its compatibility with the B501RF base. With compact size and light weight, the sensor integrates seamlessly into any environment without compromising the aesthetics or functionality of the fire alarm system. Wireless communication technology further reduces installation complexity and improves overall efficiency.
Long battery life and reduced maintenance
With a battery life of up to 4 years, the sensor provides continuous operation without the need for frequent battery replacement. The standby current is low (120A), ensuring optimal energy management. In addition, the device has a fast resynchronization function, minimizing downtime and improving overall system reliability.
Safety standards and compliance
The sensor complies with EN54-25 and EN54-7, which regulate firefighting devices and ensure excellent performance in terms of safety and reliability. Compliance with R&TTE directives ensures that the device meets European safety standards for radio communications.
Technical Specifications Notifier Optical Smoke Sensor
Electrical Specifications
| Operating voltage | 3.3 VDC max. |
| Standby current | 120 μA at 3 VDC (typical in normal mode) |
| Red LED current | 4 mA max. |
Physical Characteristics
| Dimensions | 104x62 mm (including B501RF) |
| Weight | 132 g |
| Batteries | 4 Duracell Ultra 123 |
| Battery life | 4 years at 25°C |
Communication and Frequency
| Radio frequency | 865-870 MHz |
| RF output power | 14 dBm (max) |
Environmental Conditions
| Relative humidity | 10% to 93% (non-condensing) |
There are no reviews
Data sheet
- Type: Smoke detectors
