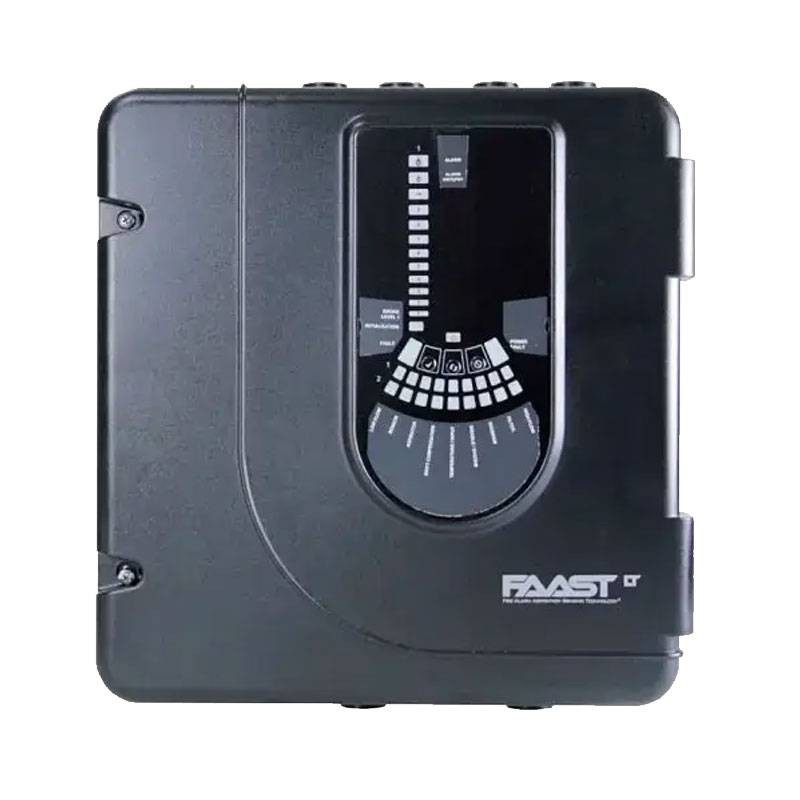

Notifier FAAST 2-channel 2-detector Aspirating Smoke Detector FL2022EI-HS
NOT FL2022EI-HS
Notifier FAAST LT 2-channel indexed Aspirating Smoke Detector that analyzes smoke using 2 addressable laser detectors with high sensitivity.
FL2022EI-HS 2 Channel 2 Sensor Version:
- The system incorporates one sensor per channel for control over the continuity of the range.
- LED pendulum light bar indication of airflow
- Alarm, fault and siren output relays per channel
- CPR certified in accordance with EN 54-20
- External power supply 18.5-31.5Vdc.
- Maximum current up to 570mA (without sirens connected)
- Stand-by current from loop 900µA
- Operating temperature from -10°C to +55°C
- Relative humidity up to 93% (without condensation)
- Degree of protection IP 65
- Dimensions: 403mm x 356mm x 135mm
€1,546.17
Items Available: 21
: 2
Overview: FAASTLT-200 is an Aspirated Smoke Detection System and is designed for ease of installation and use. Specific for the many Class C applications where maintenance is difficult, where other smoke detection technologies are inappropriate or where the environment is hostile, or in areas where aesthetics are important. And also suitable for applications in areas where early Class A or B detection is required. FAASTLT200 combines proven suction detection technologies into a reliable smoke detection system that is easy to install. The device includes a new high-sensitivity detector, ultrasonic flow sensors, and advanced features for protecting areas with high-value components and personnel presence.
The device is quick to install and also easy to test thanks to the PIPE IQ LT design and configuration software that is included as standard. FAASTLT-200, in the addressable version from Loop, is available in single- and dual-channel models, thus offering maximum flexibility for different detection strategies. An extensive set of customizable settings allow optimization of device performance and meet a wide variety of operational requirements. Interfacing with the addressed Loop to Notifier control panels then allows easy integration into systems and easy management of the fire panel.
The sensor has Alarm and Fault signaling relays for each channel with the possibility of being programmed with alarm memory or following the event trend. Suction flow and fault signaling delays are programmable to meet requirements of specific local standards. A USB port allows connection to PC and to PIPE IQ LT software.
Key features:
- Memory event archive: up to 2240 events
- Ultrasonic airflow sensor
- Intuitive front LED pendulum airflow display for checking piping functionality
- Electronics protected from accidental damage during installation and maintenance
- Mechanical filter reusable and easily replaced without affecting the rest of the device
- Container designed for efficient wiring: Preformed cable entry, easy access to connections, and no special tools required for assembly
- Easy access to parts that need periodic maintenance: filters and sensors
- Single Channel and Dual Channel versions with independent channels with separate fans, sensors and flow sensors
- IP65 enclosure
Technical Specifications:
- Air flow control in accordance with EN54-20
- Replaceable mechanical filter
- Maximum single duct length: 80/100m depending on class, to be validated with PIPE IQ LT software
- Maximum number of holes: 18
- Pipe outer diameter: 25mm or 27mm
- Inner pipe diameter: 15-21 mm
- Sensitivity range: 0.06%- 6% obs/m
- Historical Archive: 2244 Events
- Removable terminals for: Power supply, relays, sirens, external reset inputs; Loop, buttons (Test, Reset, Disable).
- Relays: 2 (1 Alarm, 1 Fault) x per Channel
- Siren Output: 1 per channel
- Preformed cable entry holes
- Cable diameter: 0.5 mm2 to 2 mm2 max.
- Power and relay connections: 2 mm2 max
- Standard USB Type B port
- Fan control: 10 programmable speeds
- Dimensions: 403 mm (H), 356 mm (W),135 mm (D)
- Weight (including packing material): 6.5 kg ( 2 channels)
Electrical Specifications:
- Smoke Detector(s): Optical Smoke High Sensitivity
- Power Supply: 18.5 - 31.5 VDC
- Reset time from remote: 1 sec.
- Reset from Alim: 0.5s
- Relay Contacts: 2.0 A @ 30 Vdc, 0.5 A @ 30 Vdc
There are no reviews
Data sheet
- Type: Smoke detectors
