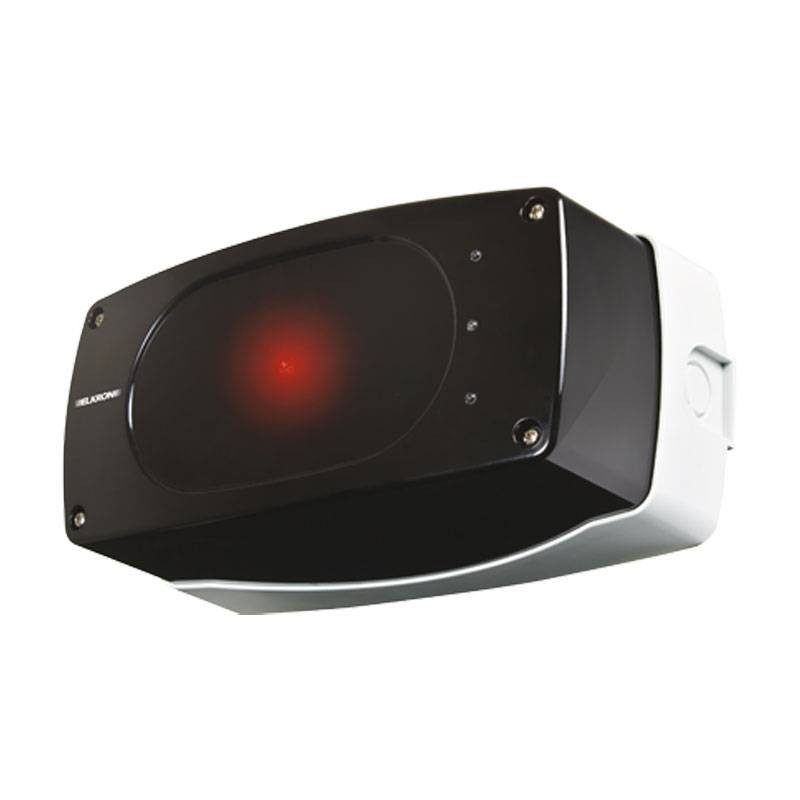

Elkron FLR100 linear smoke detector 100m range IP55 80IL7900121
EKO 80IL7900121
8034034441326
Elkron FLR100 linear smoke detector, with IR reflection technology. Ideal for large environments and cultural property. Compatible with conventional control panels, includes 3 relays (alarm, pre-alarm, fault), built-in LED and display, with the following features:
-
Operating range: 5 to 100 meters
-
Supply voltage: 10.8 26.8 Vdc
-
Low consumption: 3055 mA
-
Degree of protection: IP55
-
Signaling via 3 relays: Alarm, pre-alarm, fault
-
Visual indications: Via LED and 7-segment display
-
Ideal for: Museums, churches, historical buildings
-
Dimensions: 248x122x120 mm
€480.22
Items Available: 2
: 1
Frequently bought together
Elkron FLR100 high-precision linear detector for complex environments
Elkron's FLR100 linear detector is designed for early detection of smoke in large and architecturally constrained spaces, such as museums, churches, historical archives and exhibition halls. Using IR reflection technology, it detects the presence of smoke through the variation of light reflected by a special optical reflector (purchased separately, e.g., RIFLE50).
Intelligent and customizable detection
The system detects the obscuration of the optical beam and allows the configuration of pre-alarm (20-35%) and alarm thresholds (fixed at 35%). This allows the device to be adapted to different environmental conditions, reducing false alarms and improving responsiveness.
Compatible with conventional control panels
The FLR100 connects to a conventional fire detection line and is equipped with relays for pre-alarm, alarm and fault, each with selectable NO/NC contact. Reset is by 200 ms pulse, allowing easy integration into existing systems.
Compact design, simple installation
Equipped with 3 status LEDs and 2 7-segment displays, the FLR100 provides clear information to the installer and operator. Its IP55 rating also makes it suitable for dust or humidity controlled environments.
Technical Specifications Elkron Smoke Detector
Detection Data
| Parameter | Value |
|---|---|
| Type of detection | Linear infrared (reflection) |
| Operating range | 5 to 100 meters |
| IR wavelength | 890 nm |
| Alarm threshold | 35% dimming |
| Configurable pre-alarm thresholds | 20%, 25%, 30%, 35% |
| Misalignment tolerance | ±1° |
Power Supply and Consumption
| Parameter | Value |
|---|---|
| Supply voltage | 10.8 to 26.8 Vdc |
| Consumption @12Vdc | 45 mA (rest), 40 mA (alarm), 30 mA (fault) |
| Consumption @24Vdc | 55 mA (rest), 50 mA (alarm), 35 mA (fault) |
Relays and Interfaces
| Parameter | Value |
|---|---|
| Relay | 3 relays (alarm, pre-alarm, fault) |
| Relay contact type | 1A - 30Vdc, NO/NC selectable |
| Central interface | Conventional line (10-20 Vdc) |
| Reset pulse | 200 ms |
| Indicators | 3 LEDs + 2 7-segment displays |
Environmental Conditions and Structure
| Parameter | Value |
|---|---|
| Operating temperature | -10 ÷ +55 °C |
| Degree of protection | IP55 |
| Dimensions (W x H x D) | 248 x 122 x 120 mm |
There are no reviews
Data sheet
- Type: Smoke detectors
