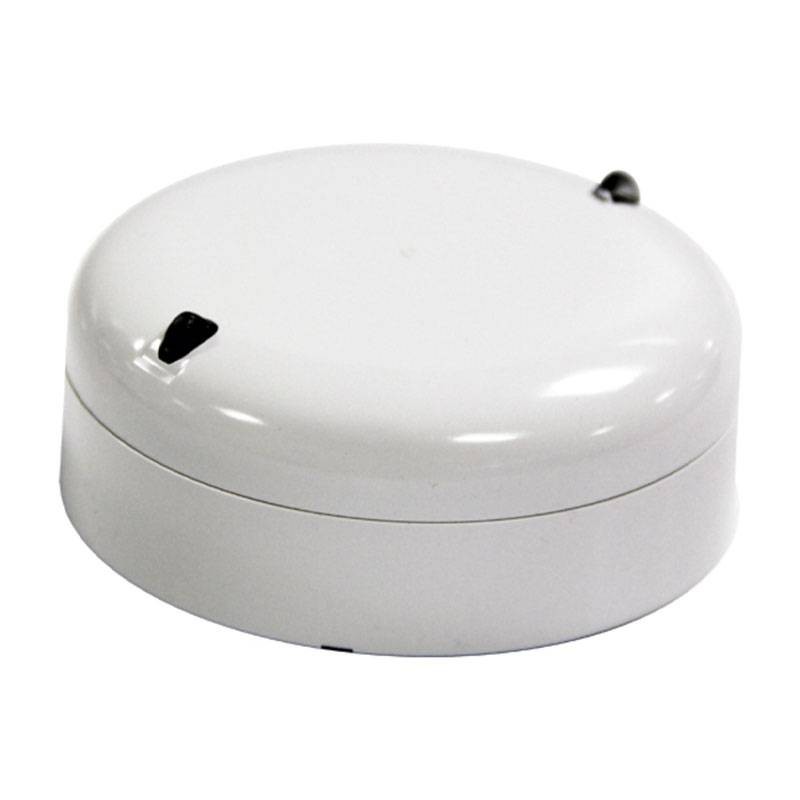

Notifier Wireless Interface Radio Gateway for NRX Devices NRXI-GATE
NOT NRXI-GATE
Notifier radio gateway enabling integration of NRX wireless firefighting devices with addressed wired systems, provides maximum reliability and compatibility with Advanced and AM control panels, with the following features:
-
Wireless/wired interface for NRX devices
-
Advanced/CLIP compatible protocol
-
Up to 32 radio devices per gateway
-
Two-way communication over 18 RF channels
-
Radio range up to 400 meters in free air
-
Built-in line isolator
-
Compatible with B501AP base (not included in package)
€335.15
Items Available: 2
Frequently bought together
NRXI-GATE Gateway the bridge between wireless and wired technology
The Gateway is the ideal solution for upgrading and integrating existing wired fire systems with NRX Notifier series wireless devices. It is designed to operate with intelligent control panels equipped with Advanced or CLIP protocols, facilitating flexible and scalable fire system management.
The gateway communicates via radio (865870 MHz) in bidirectional mode, exploiting up to 18 RF channels to ensure robustness and reliability in transmission. It supports up to 32 devices per gateway, with the possibility of installing up to 8 gateways per loop, enabling extended coverage even in complex buildings.
Simplified installation, guaranteed compatibility
Powered directly from the central loop (1529 VDC), the gateway requires no external power supply. Installation is quick thanks to B501AP base compatibility and compact design. It also has a line isolator to ensure protection and continuity in the event of a short circuit.
The initialization time is only 2 seconds, with color indicator LEDs (green, red, amber) making it easy to monitor the status of the device.
Ideal applications
-
Integration of radio devices into existing wired systems
-
Expansion of fire protection systems in hard-to-wire areas
-
Public, industrial, commercial and healthcare facilities
-
Environments with a need for quick and unobtrusive installation
Gateway Radio Notifier Technical Specifications
Power Supply and Power Consumption
| Loop power supply | 15-29 VDC |
| Operating current @ 24 V | Up to 510 μA (standby) / 3.4 mA (active) |
| Max LED current | Red: 4 mA - Amber: 5.3 mA |
Radio Communication
| RF Frequency | 865-870 MHz (18 channels) |
| RF output power | Up to 14 dBm |
| Radio range | Up to 400 m in free air |
System Capacity
| Maximum number of devices per gateway | 32 |
| Maximum number of gateways per loop | 8 |
Environmental Conditions and Structure
| Initialization time | 2 s |
| Operating temperature | -5/+47 degrees |
| Operating humidity | 10/93% (without condensation) |
| Dimensions (with base) | 102×42 mm |
| Supported wiring | 0.75 - 2.5 sq. mm |
Standards and Certifications
| Certifications | EN54-25, EN54-17, EN54-18, EN 300 220, EN 301 489, R&TTE |
There are no reviews
Data sheet
- Type: Gateway
