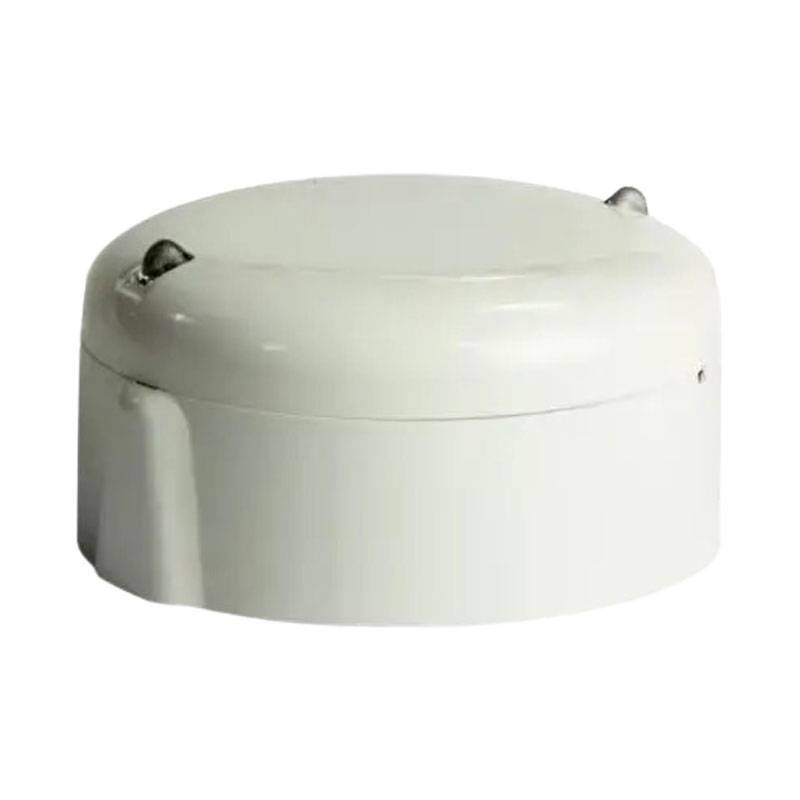

Notifier Battery-powered Radio Frequency Signal Repeater NRX-REP
NOT NRX-REP
Notifier Radio Frequency Signal Repeater is a battery-powered device designed for use with the NRXI-GATE gateway. Optimized for the fire detection system, it amplifies the radio coverage area, ensuring a stable and reliable signal for proper system operation, with the following features:
-
Increased radio coverage: Amplifies the detection zone of the fire detection system.
-
Reliability and durability: Operated with Duracell Ultra 123 battery for up to 4 years' battery life
-
Ease of installation: Simplified placement and integration due to integrated antennas and wireless sensor compatible design
-
Stable communication: 868 MHz radio frequency with 14 dBm RF output power
€177.96
Items Available: 1
Frequently bought together
Radio Frequency Signal Repeater for Full Coverage
The repeater is designed to expand the range of the fire detection system, ensuring that the radio signal reaches all critical areas. With its ability to increase the communication area, the device is ideal for large environments or those with obstacles that could compromise signal range. The device provides up to 500 meters of free-air coverage, reducing the risk of areas not covered by the system.
Easy to install and integrate
This repeater is designed for easy integration with other wireless firefighting devices. The two built-in antennas allow for optimal device placement, while the B501RF wireless sensor compatible base further simplifies installation. In addition, with addresses set via rotary switches, commissioning time is reduced, making the configuration process quick and efficient.
Long-term reliability with low maintenance
With a battery life of 4 years at 25 degrees, it offers a long service life without the need for frequent intervention. The device also has a patented battery life prediction function, which allows maintenance to be planned proactively. This helps reduce operational costs and improve the overall reliability of the fire protection system.
Certifications and standards compliance
The repeater complies with stringent safety and communication regulations, including EN54-25 certification for radio frequency and EN54-18 for fire protection. In addition, the device complies with European R&TTE standards (EN 300 220 and EN 301 489), ensuring safe and interference-free communication.
Notifier Signal Repeater Technical Specifications
Electrical Specifications
| Operating voltage | 3.3 VDC max. |
| Standby current | 120 µA at 3 VDC (typical in normal mode) |
| Red LED current | 4 mA max. |
Physical Characteristics
| Dimensions | 104x51 mm (including B501RF) |
| Weight | 115 g |
| Batteries | 4 Duracell Ultra 123 |
| Battery life | 4 years at 25 degrees |
Communication and Frequency
| Radio frequency | 865-870 MHz |
| RF output power | 14 dBm (max) |
Environmental Conditions
| Relative humidity | 10% to 93% (non-condensing) |
There are no reviews
Data sheet
- Type: Signal repeaters
