Gateway Dali and Dali 2 Bticino for MyHome 1 output F429G
BTI F429G
8005540000000

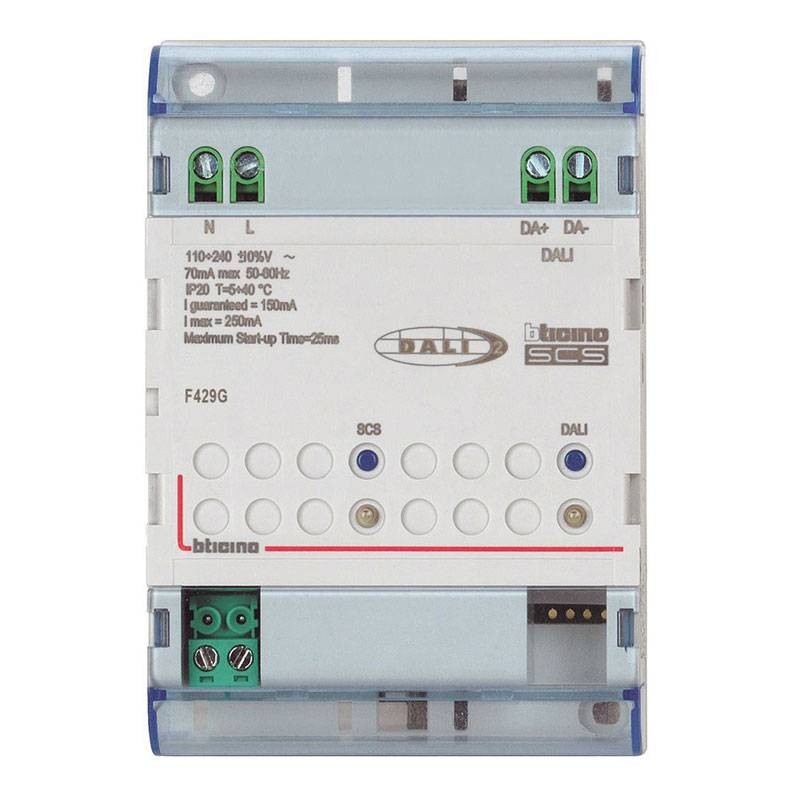

The Bticino F429G is a DALI / DALI-2 gateway designed to connect the MyHome home automation system with professional lighting systems driven via DALI-2 protocol. Equipped with 1 independent output, it allows the control of up to 64 DALI ballasts or devices with full support for ON/OFF, dimming and RGB/RGBW color management features. It is ideal for installations with many DALI lightings.
-
1 independent DALI/DALI-2 output
-
Management of up to 64 ballasts or DALI-2 fixtures
-
Supported functions: ON/OFF, dimmer, RGB, RGBW (dynamic white)
-
Configuration via Home + Project app
-
Power supply 27 VDC
-
4-module DIN-rail installation
-
Designed for installations with numerous DALI lighting points
-
Compatible with MyHome F460, F461 and Class 300EOS servers
-
Upgrade supported by systems with MHS1 via backup & restore function
€220.96
Items Available: 10
Frequently bought together
Bticino F429G DALI / DALI-2 gateway for advanced lighting systems.
The F429G gateway is the ideal interface for connecting digital lighting devices (up to 64) to the MyHome home automation system. Advanced RGB/RGBW and dimmer features enable precise, scenic and efficient light management.
Centralized management through Home + Project
Thanks to the Home + Project app, the device is fully configurable from a PC or smartphone, even remotely. Groups can be associated, DALI devices can be addressed, ignitions, colors and scenarios can be programmed. The system is expandable and upgradeable even in existing installations thanks to the backup & restore function from old MHS1 servers
Ideal for large home automation systems
With the ability to manage up to 64 DALI-2 ballasts, the gateway is designed for complex lighting installations, such as offices, showrooms, public buildings, commercial or residential environments with numerous lightings.
Technical Specifications DALI BUS SCS (High Capacity) Module
General Data
| Parameter | Value |
|---|---|
| Operating temperature | 5 - 40 °C |
| Input | BUS SCS |
SCS BUS power supply
| Parameter | Value |
|---|---|
| Voltage | 18 - 27 Vdc |
| Power consumption | 6 mA |
Input 230 Vac
| Parameter | Value |
|---|---|
| Voltage | 110 to 240 Vac |
| Operating frequency | 50/60 Hz |
| Power consumption | 70 mA max |
DALI output
| Parameter | Value |
|---|---|
| Rated voltage | 16 Vdc |
| Nominal power | 4 W |
| Current max. | 250 mA |
| Guaranteed current | 150 mA |
| Maximum startup time | 25 ms |
| Number of DALI devices that can be controlled | 64 |
| Maximum cable length | 300 m |
| Cable cross-section | 1.5 mm² |
| Compatible DALI loads | All |
| DALI-2 compatible loads | DT0, DT6, DT8 (up to RGBW on single channel) |
There are no reviews
Data sheet
- Type: Gateway
