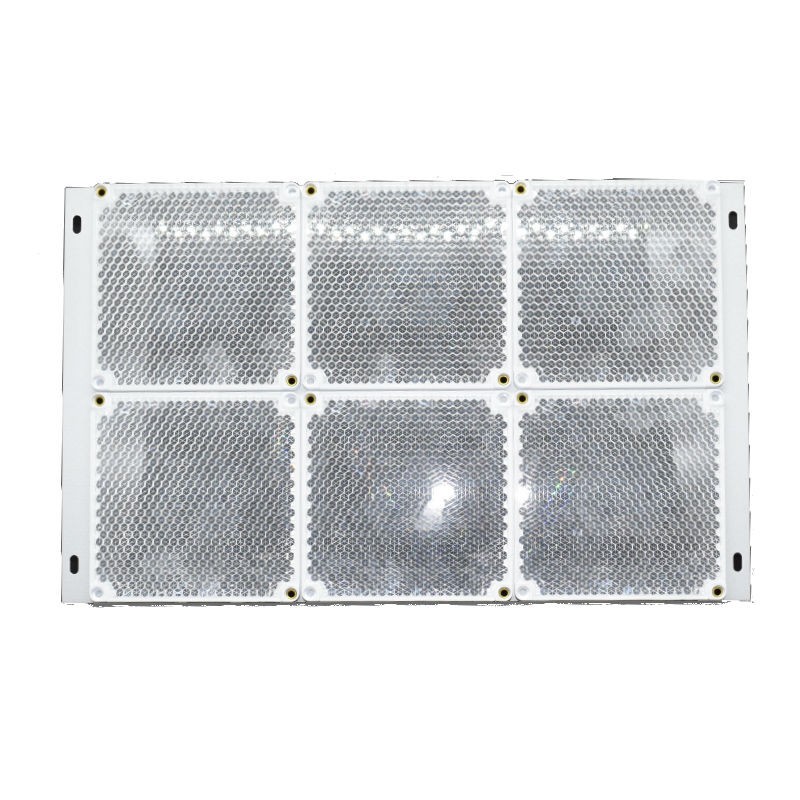

Urmet Spotlight for smoke detector 1043/209 range 100 meters 1043/213
UTD 1043/213
8021156027514
Urmet high-efficiency optical spotlight for smoke detection systems, compatible with the 1043/209 linear sensor. Ideal for covering distances up to 100 meters, with the following features:
-
Compatible: Urmet 1043/209 linear detector
-
Range: Up to 100 meters
-
Ideal for: 400 and 500 series fire alarm systems
-
Dimensions: 345x220x23 mm
€64.75
Items Available: 8
: 2
Frequently bought together
Urmet Spotlight precision and reliability up to 100 meters
The Urmet Spotlight is designed to extend the operating range of the 1043/209 linear smoke detector, providing reliable monitoring in large environments such as warehouses, sheds, exhibition halls or historic buildings. Due to its large reflective surface, it allows coverage up to 100 meters with high accuracy in infrared beam reflection.
Ideal applications
-
Fire protection systems in industrial and commercial environments
-
Protection for large volumes: sheds, gyms, churches, theaters
-
Compatible with Urmet line 400 and 500 installations
-
Installation for systems with long distance requirements
The spotlight ensures effective reflection of the optical signal, enabling the detector to detect obscurations caused by the presence of smoke.
Technical Specifications Urmet Spotlight
| Parameter | Value |
|---|---|
| Compatibility | Urmet 1043/209 |
| Range | Up to 100 m |
| series | Urmet 400 and 500 line |
| Width (base) | 345 mm |
| Height | 220 mm |
| Depth | 23 mm |
| Installation type | Wall |
There are no reviews
Data sheet
- Type: Spotlight
