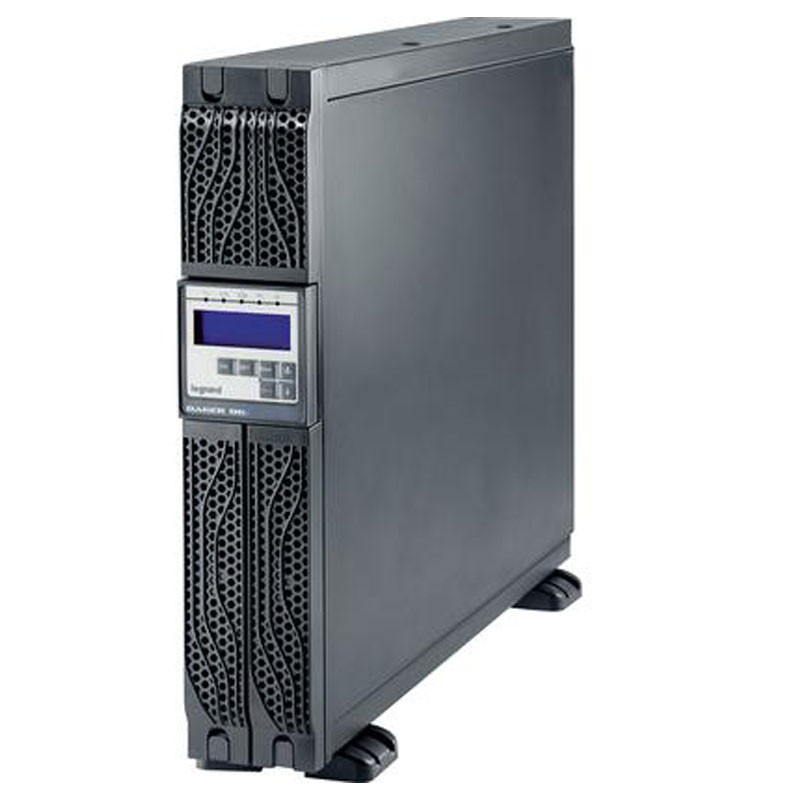

UPS Legrand single-phase convertible DAKER DK Plus 2000VA 310171
LEG 310171
3414970826930
UPSLegrand single-phase convertible DAKER DK Plus, with the following features:
- Rated power: 2000 VA
- Active power: 1.8KW
- Degree of protection: IP21
- Reference Standard: EN 62040-1/2/3
- 10 minutes of coverage
- With batteries
- Height: 440 mm
- Width: 88 mm
- Depth: 600 mm
€1,135.56
Items Available: 8
INPUT:
- Input Voltage 230V
- Input Frequency 50-60 Hz ±5% Autosensing
- Input Voltage Range 160V - 288V at full load
- Input current THD < 3%.
- Input power factor > 0.99
OUTPUT:
- Output Voltage 230V ± 1%
- Output frequency (nominal) 50/60 Hz (settable from the LCD panel) +/- 0.1%.
- Crest Factor 1:3
- Output Voltage THD < 3%
- Output voltage tolerance ±1%.
- Bypass Internal automatic bypass (INCLUDED)
- External Maintenance Bypass (OPTIONAL)
BATTERIES:
- Expansion Autonomy: yes
- Batteries number: 6
- Battery type/voltage 6 12V 7,2Ah
- Coverage 80% load (min): 10
COMMUNICATION AND MANAGEMENT:
- Display and Signaling: Six buttons and five LEDs for real-time monitoring of UPS status
- Communication Ports: RS232, USB serial ports
- Remote Management: Available
- Network Interface Slot: SNMP
MECHANICAL FEATURES:
- Dimensions H x W x D (mm): 440x88 (2U) x600
- Dimensions of Battery Cabinet H x W x D (mm): 440x88 (2U) x600
- Net Weight (kg): 29.5
ENVIRONMENTAL CONDITIONS:
- Operating temperature: 0/40 °C
- Relative humidity (%): 20÷80 % non condensing
- Noise level at 1 mt (dBA): <50
- Heat Dissipation (BTU/h): 654
There are no reviews
Data sheet
- Type: Uninterruptible Power Supply UPS
- Rated Power: 2000VA
- Active Power: 1800W
- Endurance: 10 minutes
