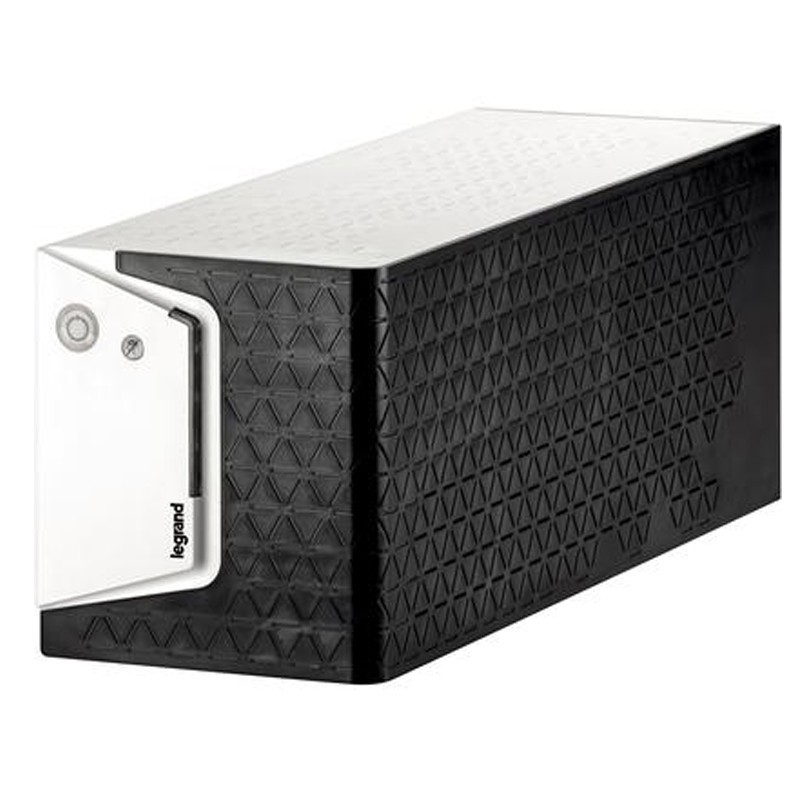

Legrand Keor Line interactive 600VA single-phase UPS 310180
Legrand Line interactive VI Keor SP 600VA single-phase UPS, with the following characteristics:
- Rated power 600VA
- Active power 360W
- Autonomy up to 15 minutes
- 4 IEC sockets and USB HID socket
- Line interactive VI technology
- Waveform: Pseudo sine wave
- Height 120 mm
- Width 138 mm
- Depth 330 mm
Legrand Keor Line interactive 600VA single-phase UPS 310180
Tax included
Input voltage:
- Input voltage: 230V
- Input voltage range: 170 - 290V
- Frequency: 50 - 60 ± 5Hz
Output/Type of sockets
- IEC version: Backup and overvoltage: 4*C13
- German version: Backup and overvoltage: 1*CEE 7/3 + 1*C13
- French version: Backup and overvoltage: 1*CEE 7/5 + 1*C13
- Voltage: 230V ± 10% Frequency (Hz)
- Frequency (Hz) 50 - 60 ± 1Hz (battery operated)
Protections:
- Full protection: Overload, short circuit, deep discharge, overcharge and overvoltage
- Type: fuse
The UPS can be connected to a PC via the USB port, allowing its operations to be monitored thanks to free software that allows an emergency shutdown of Windows and Linux operating systems.
Keor SP is managed by a microprocessor and is able to display the following alarms and operating modes via a "smart" LED bar:
- Normal operation
- Battery operation
- Overload
- General fault
- Autonomy reserve
- End of autonomy
The UPS can be connected to a PC via the USB port, allowing its operations to be monitored thanks to free software that can perform an emergency shutdown of Windows and Linux operating systems.
The Keor SP is CE marked in accordance with European directives 2014/30 and 2014/35.
It has also been designed and manufactured in accordance with the following standards:
EN 62040-1 "General and safety requirements for UPS used in operator accessible areas".
EN 62040-2 "Electromagnetic compatibility (EMC) requirements".
Batteries:
- Number of batteries 1
- Battery type / Voltage: VRLA 7 Ah
Communication and management:
- Interface LED bar (green/orange/red)
- USB HID Type B
- Alarms Visual (LED bar), Audible (buzzer)
Mechanical characteristics:
- Dimensions L x W x H (mm) 120 x 330 x 138
- Weight: 4.8 kg
Environmental conditions:
- Operating temperature (°C) 0 ̴ 40
- Relative humidity (%) < 95 (non-condensing)
- Noise level (dB) ≤ 40
Certifications:
- Standards and markings EN 62040-1, EN 62040-2, CE
Data sheet
- Type:
- Uninterruptible Power Supply UPS
- Rated Power:
- 600VA
- Active Power:
- 360W
- Endurance:
- 15 minutes
