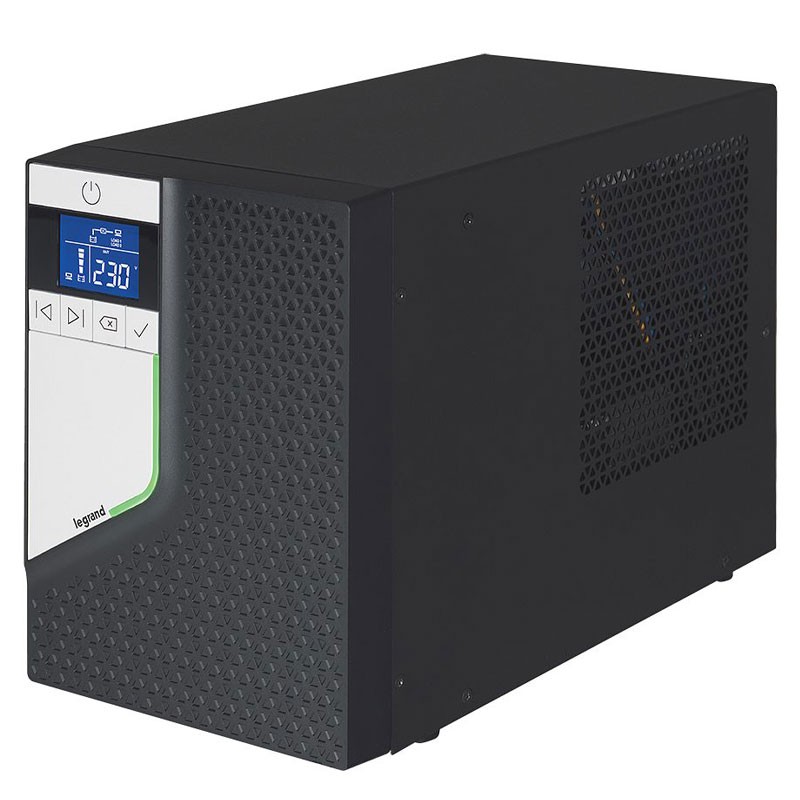

Legrand KEOR SPE TOWER UPS 3000VA 2400W Single Phase 311064
LEG 311064
3414972083515
Legrand UPS KEOR SPE TOWER Line interactive VI, with the following characteristics:
- Rated voltage: 230V ~ 1ph
- Voltage range (V) 175 to 288 (at full load)
- Rated frequency (hz) 50 / 60 ± 3 with automatic detection
- Maximum current: 14.67 amps
- Reference Standard: EN 62040-1/2/3
- Power: 2400W
- Power: 3000VA
- Height: 238mm
- Width: 170mm
- Depth: 438mm
- Autonomy up to 7 minutes
- Outputs 2 banks (1 programmable)
- 8 IEC sockets
- Sine waveform (in battery mode)
€1,047.47
Items Available: 5
Protections:
- Electronic protection against overloads, short circuits and excessive battery discharge.
- Shutdown upon reaching operating limit and overheating
- Automatic shutdown in case of protection activation
- Built-in backfire protection Emergency stop (EPO)
Other technical features:
- Transfer time 2-8 (typical)
- Protection class (IEC 61140) I
- OVC overvoltage category II
- Short-term current rating (kA) 1 ≤ ICW ≤ 6
- Replaceable fuse: 32x6mm F 20A
- Input: IEC C20
- Visual interface: 7-segment display with four buttons and LEDs
- Communication ports: Dry contacts - RS232 - USB type B - Communication slot for SNMP card
- Net weight with batteries (kg): 26.5±5%
- Operating temperature (°C) 0 ÷ +40 (+20 ÷ +25 recommended to preserve battery life)
- Relative humidity during operation < 95% without condensation
- Storage temperature (°C) -20 ÷ +70 (+20 ÷ +25 recommended to preserve battery life)
- Noise level at 1 meter (dBA) < 45
- Protection class (IEC 529) IP20
- Working height up to 1,000 meters without derating
- Pollution degree PD2
- Climatic class (EN 60721-3-3) 3K22
- Special climate class (EN60721-3-3) 3Z2
- Biological class (EN60721-3-3) 3B2
- Mechanically active substance class (EN60721-3-3) 3S5
- Mechanical class (EN60721-3-3) 3M11
- EC, EAC, CMIM, UKCA Marks
- Safety Directive 2014/35/EU EN 62040-1 EMC
- Directive 2014/30/EU EN 62040-2
There are no reviews
Data sheet
- Type: Uninterruptible Power Supply UPS
- Rated Power: 3000VA
- Active Power: 2400W
- Endurance: 8 minutes
