Gewiss Two-pole terminal block for distribution board 3x35 + 10x10 125A GW40402
GEW GW40402
8011564012677
Two-pole terminal block Gewiss for flush-mounted distribution board, safe and orderly distribution in electrical panels, quick installation with screws or snap-on, with the following features:
-
Nominal current: 125A
-
Pole 1 Neutral: 3x35 mm² + 10x10 mm²
-
Pole 2 Earth: 3x35 mm² + 10x10 mm²
-
Compatibility: Q-DIN 14/20 distribution boards
-
Flush-mounted system: Lightweight/plasterboard walls
-
Fixing: With screws and/or snap-on
-
Applications: Energy distribution in flush-mounted panels
€21.25
Items Available: 52
: 27
Frequently bought together
Gewiss terminal block safe and orderly distribution in electrical panels

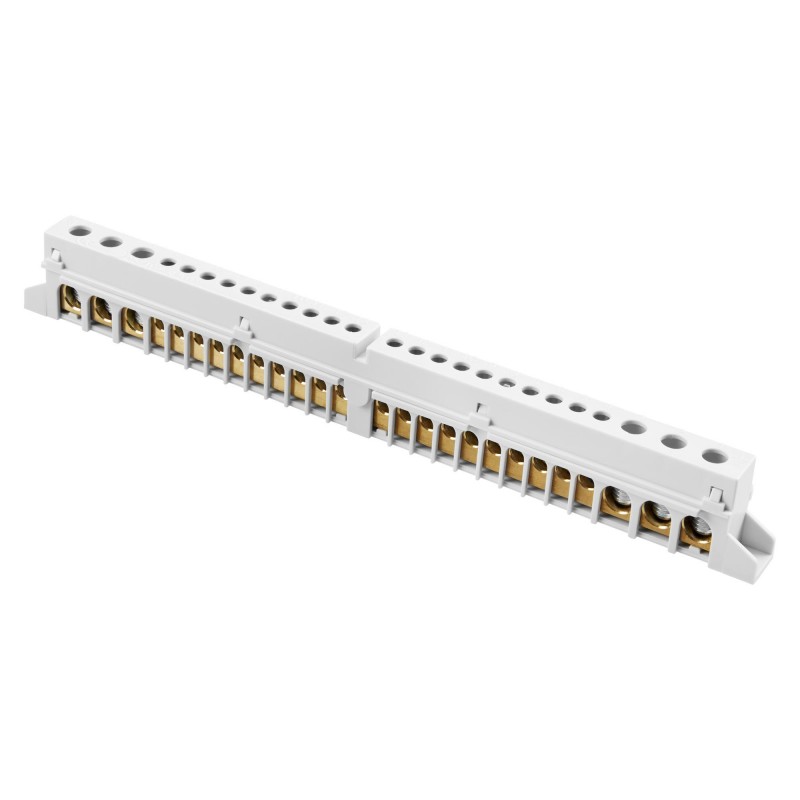

The Gewiss GW40402 terminal block is a professional component for the connection and distribution of conductors within flush-mounted electrical panels, particularly Q-DIN with 14 or 20 modules. It is designed for the Green Wall Series, intended for lightweight and plasterboard walls, ensuring maximum safety and ease of installation.
Bipolar configuration 125 A capacity
This terminal block is of the bipolar type and can handle a nominal current of up to 125 A. Each pole has a versatile configuration:
-
3 inputs of 35 mm² for main conductors
-
10 outputs of 10 mm² for secondary branches
Perfect for orderly and safe distribution of power lines and branches in distribution panels.
Quick installation with screws or snap-on
The terminal block can be fixed inside the distribution board using screws or a snap-on system, making installation flexible and fast. It is designed to be perfectly integrated into Gewiss Q-DIN flush-mounted systems, maintaining compactness and order within the panel.
Ideal applications
-
Residential and tertiary electrical panels
-
Installations on plasterboard walls
-
Orderly distribution of lines and branches
-
Gewiss Q-DIN Green Wall distribution boards
There are no reviews
Data sheet
- Type: Terminal blocks
