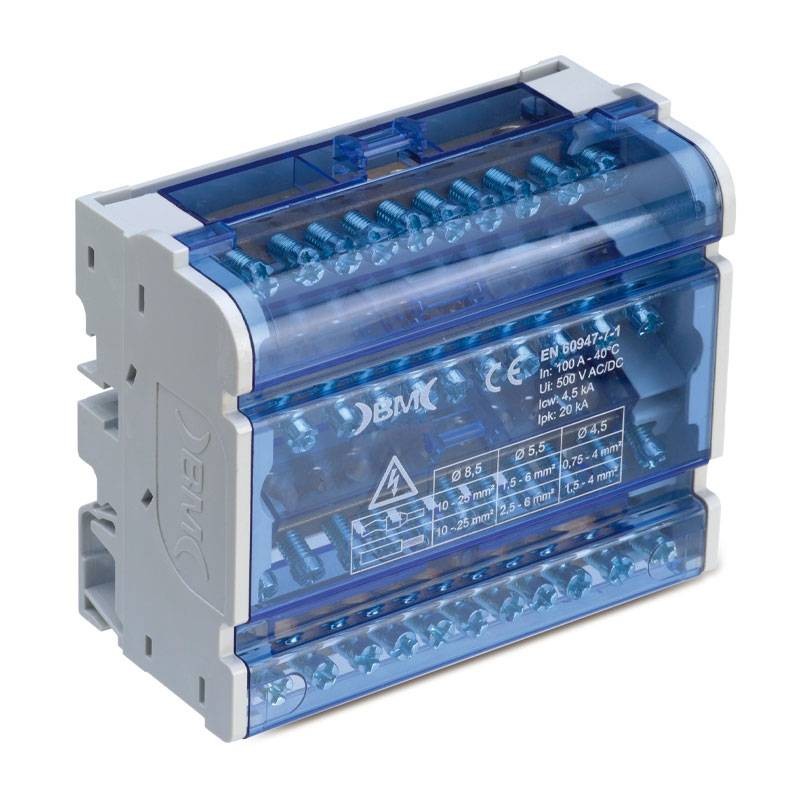

Modular BM tetrapolar terminal block 4P 100A 15 connections 500V QM410015C
BMM QM410015C
8013629261709
Modular BM bipolar 15-connection terminal block with the following features:
- Input: 2x10/25
- Output: 7X1.5/6+6X0.75/4
- Rated current: 100 amps
- Insulation voltage: 500V
- Number of poles: 4P
- Short duration current (Icw): 4.5 kA
- Peak current (Ipk): 20 kA
- Tightening torque: 2-3, 1.2 - 1.5 Nm
- Rigid conductor: 10 - 25, 2.5 - 6, 1.5 - 4 mm2
- Connections per way: Ø 8.5 x 2, Ø 5.5 x 7, Ø 4.5 x 6
- Flexible conductor section with lug: 10 - 25, 1.5 - 6, 0.75 - 4 mm²
- Dimensions: 140x50x87 mm ( L1 - W1 - S1)
Modular BM tetrapolar terminal block 4P 100A 15 connections 500V QM410015C
€18.22
€18.22
Tax included
Tax included
Pay in installments with Klarna
Items Available: 8
Features:
- Insulating body: polyamide
- Guards: polycarbonate
- Connecting rods: brass
- Screws: galvanized steel
- Pollution degree: 3
- Reference temperature: 40 degrees
There are no reviews
Data sheet
- Type:
- Terminal blocks
