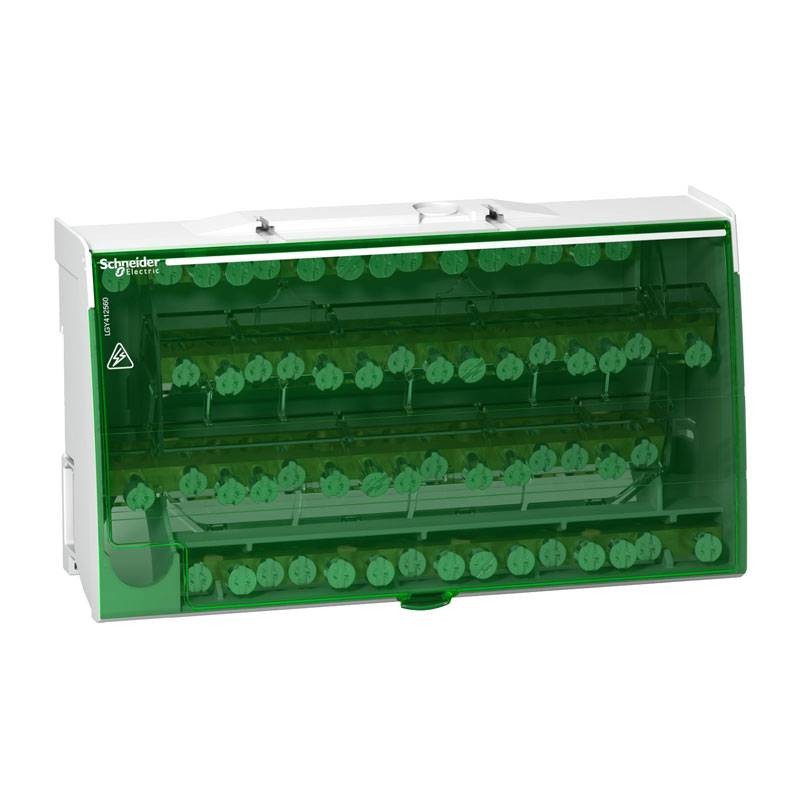

Schneider 4P 125A 60-hole tetrapolar terminal block LGY412560
SNR LGY412560
3606480542107
Schneider tetrapolar terminal block is a compact distribution block with 60 holes, ideal for safe and reliable electrical installations, with the following features:
-
Rated current: 125 A
-
Number of poles: 4P (tetrapolar)
-
Connection capacity: 60 holes (4 rows x 15 holes each)
-
Versatile installation on DIN rail or mounting plate
-
Rated insulation voltage: 500 V AC
-
Dielectric strength: 2500 V AC
-
9 mm steps: 20
€55.31
Items Available: 48
: 9
Schneider Terminal Block: Safety and Reliability for Electrical Distribution
Safety and Reliability for Electrical Distribution
Schneider's Linergy DS series tetrapolar terminal block is designed to ensure maximum safety and high performance in industrial, civil and commercial environments. With its rugged construction and screw connection system, it ensures safe and durable electrical contact, even under high load conditions.
Flexible and universal installation
This terminal block offers great mounting versatility: it can be easily installed on a standard DIN rail or directly on a mounting plate. Its tetrapolar configuration and total capacity of 60 holes (organized in 4 rows of 15) allow a wide range of power distribution applications. The compact design allows it to be installed even in tight spaces.
Tetrapolar Terminal Block: Rugged, Durable Materials for Every Environmental Condition
High electrical and mechanical performance
The terminal block can support rated currents up to 125 A and withstand current peaks of up to 28 kA for 6 ms. It has insulation with a rated voltage up to 500 VAC and can operate effectively in both single-phase (230 VAC phase/neutral) and three-phase (440 VAC phase/phase) networks. High dielectric strength (2500 VAC) and impulse withstand voltage of 8 kV ensure optimal protection in the presence of overvoltages.
Robust and durable materials
Made of high-quality materials, the terminal block ensures strength and durability even under demanding environmental conditions, with an operating temperature range of -25 to +55 degrees.
Recommended applications
Ideal for industrial switchboards, photovoltaic systems, electrical distribution in commercial and residential buildings, and in all applications where reliability, robustness and flexibility are essential requirements.
Technical Specifications Tetrapolar terminal block
| Feature | Value |
|---|---|
| Number of poles | 4P |
| Distribution block outlets | 4 x 15 holes |
| Rated operating voltage | 400 V DC phase/neutral - 460 V DC phase/phase |
| Rated insulation voltage | 500 V AC |
| Rated impulse withstand voltage | 8 kV |
| Rated operating current | 125 A at 40 °C |
| Nominal permissible short-time withstand current | 4.2 kA for 1 s |
| Nominal peak allowable current | 28 kA |
| Mounting medium | DIN rail |
| Color | White |
| Pollution degree | 3 |
| Overvoltage category | III |
| Dielectric strength | 2500 V |
| Ambient temperature | -25/+55 degrees |
| 9 mm steps | 20 |
| Height | 100 mm |
| Width | 174 mm |
| Depth | 50.5 mm |
There are no reviews
Data sheet
- Type: Terminal blocks
- Voltage: 230V
- Poles: 4P
- Amps: 125A
