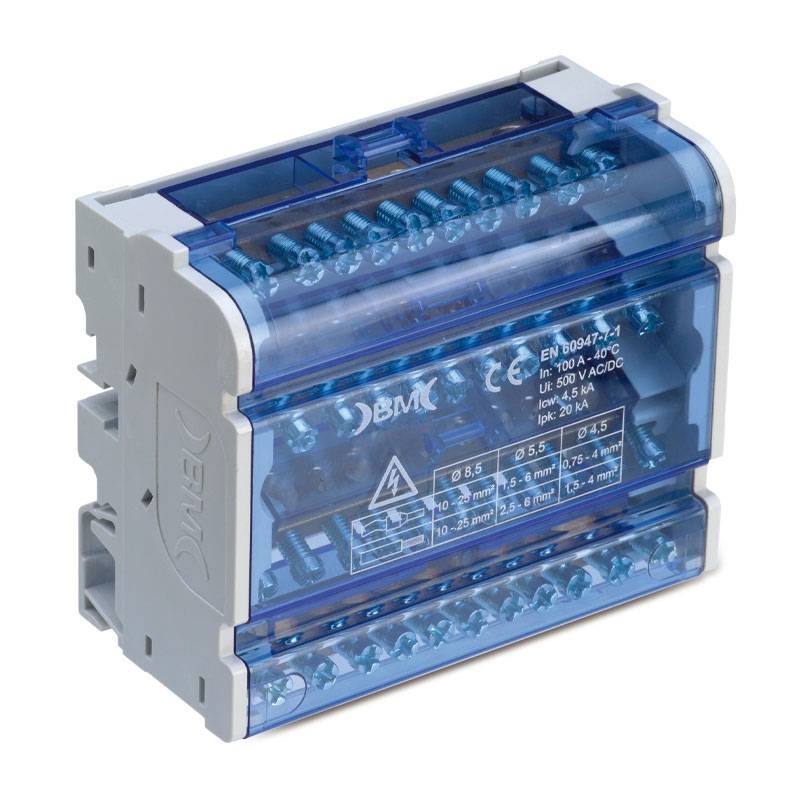

Modular BM tetrapolar terminal block 4P 40A 13 connections 500V QM404013C
BMM QM404013C
8013629261655
Modular BM bipolar terminal block 13 connections with the following features:
- Input: 2x4/10
- Output: 11x0.75/4
- Rated current: 40 amps
- Insulation voltage: 500V
- Number of poles: 4P
- Short duration current (Icw): 4.5 kA
- Peak current (Ipk): 20 kA
- Tightening torque: 2-3 - 1.2 - 1.5 Nm
- Rigid conductor: 6-16 - 1.5 - 4 mm2
- Connections per way: Ø 6 x 2 - Ø 4.3 x 11
- Flexible conductor section with lug: 4 - 10 - 0.75 - 4 mm²

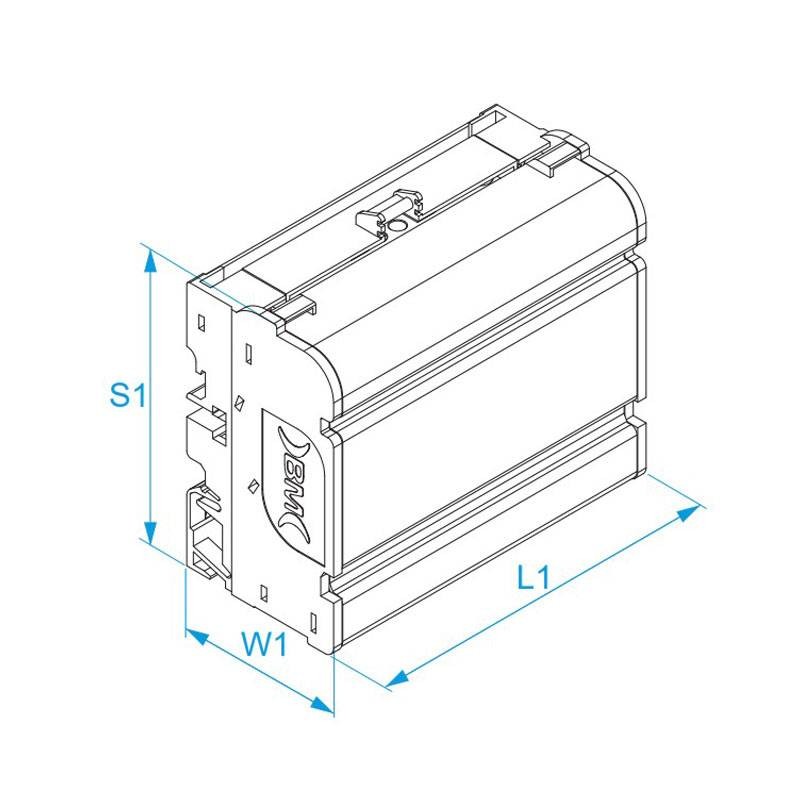

- Dimensions: 105x50x87 mm ( L1 - W1 - S1)
€13.71
Items Available: 5
: 3
Features:
- Insulating body: polyamide
- Guards: polycarbonate
- Connecting rods: brass
- Screws: galvanized steel
- Pollution degree: 3
- Reference temperature: 40 degrees
There are no reviews
Data sheet
- Type: Terminal blocks
- Cross-Section: 4mm
