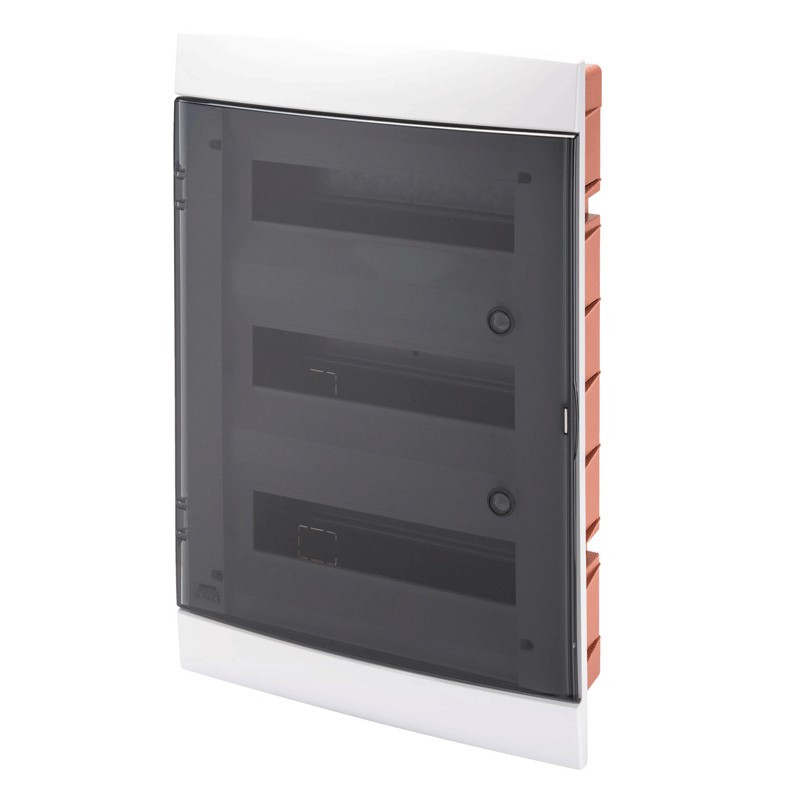

Gewiss Flush-mounted distribution board 36+3 modules 3 rows IP40 with smoked door GW40239TB
GEW GW40239TB
8011564442160
Flush-mounted decorative distribution board Gewiss, with the following characteristics:
-
Number of modules: 36+3 (3 rows of 12 modules + 3 service modules)
-
Max. installable terminal blocks: 3 x 12 modules
-
Installation: Flush-mounted, masonry walls
-
Nominal voltage: 400V
-
Nominal current: 125 A
-
Body colour: White
-
Door colour: Transparent smoked
-
Protection rating: IP40
€59.44
Items Available: 46
: 11
Frequently bought together
Elegant and functional flush-mounted distribution board for residential and commercial environments
The flush-mounted distribution board Gewiss GW40239TB is part of the 40 CDI series, designed to combine aesthetics and functionality. Thanks to its ultra-slim design (28 mm depth) and milk white colour with a transparent smoked door, it integrates perfectly into modern, residential or tertiary environments. It offers a capacity of 36 DIN modules + 3 service modules, divided into 3 rows of 12 modules, and complies with all the latest regulatory standards.
Prepared for terminal blocks for simple and tidy installation
The distribution board is prepared to accommodate terminal blocks up to 3 groups of 12 modules, facilitating the distribution and organization of wiring. The item is complete with a flush-mounting box, ready for installation on masonry walls.
Protection and durability for long-lasting use
Constructed from halogen-free material compliant with EN 60754-2 standard, the distribution board guarantees resistance to incandescent wire (650 °C) and impact resistance IK08. The IP40 protection rating makes it suitable for installations in protected indoor environments.
Ideal applications
-
Residential electrical systems
-
Distribution boards for commercial environments
-
Aesthetic installations in modern spaces
-
Integration with terminal blocks and modular devices
Technical Characteristics of Gewiss Flush-Mounted Distribution Board
| General | |
|---|---|
| Series | 40 CDI |
| Type | Flush-mounted decorative distribution board |
| Number of modules | 36 + 3 (3 rows of 12 modules + 3 service modules) |
| Max. installable terminal blocks | 3 × 12 modules |
| Installation | Flush-mounted – masonry walls |
| Electrical Characteristics | |
| Nominal voltage | 400 V |
| Insulation voltage | 750 V |
| Nominal current | 125 A |
| Dissipable power | 42 W |
| Insulation class | II (IEC 61140) |
| Materials and Colours | |
| Body colour | White |
| Door colour | Transparent smoked |
| Material | Halogen free |

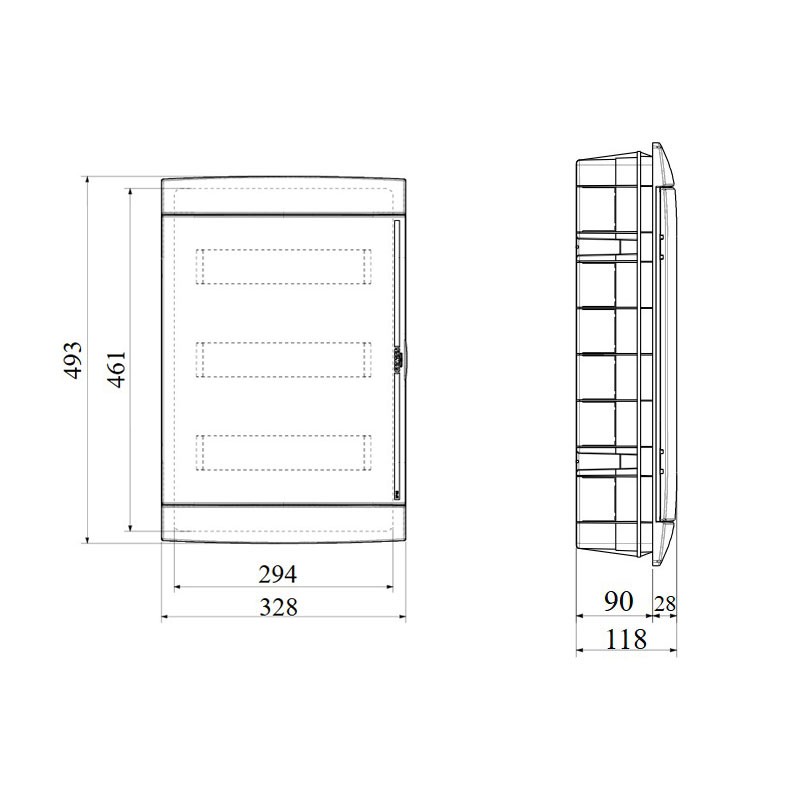

| Dimensions | |
| External dimensions (WxHxD) | 328 × 493 × 118 mm |
| Front dimensions (WxHxD) | 330 × 493 × 28 mm |
| Resistance and Safety | |
| Incandescent wire resistance | 650 °C |
| Impact resistance | IK08 |
| Operating temperature | –15 °C ~ +60 °C |
| Protection rating | IP40 |
| Compliance | |
| Standards | EN 60670-1 / IEC 60670-24 / CEI 23-48 / CEI 23-49 |
Nonostante un problema di rottura della cerniera del portello mi è stata immediatamente sostituita e sono molto soddisfatto.
dimensioni perfette per l uso per cui è stato ordinato
Soddisfatto dell'acquisto, arrivato nella data prevista
Data sheet
- Type: Front panels
- Modules: 36
- Degree of protection: IP40
- Model: With door
Recessed
