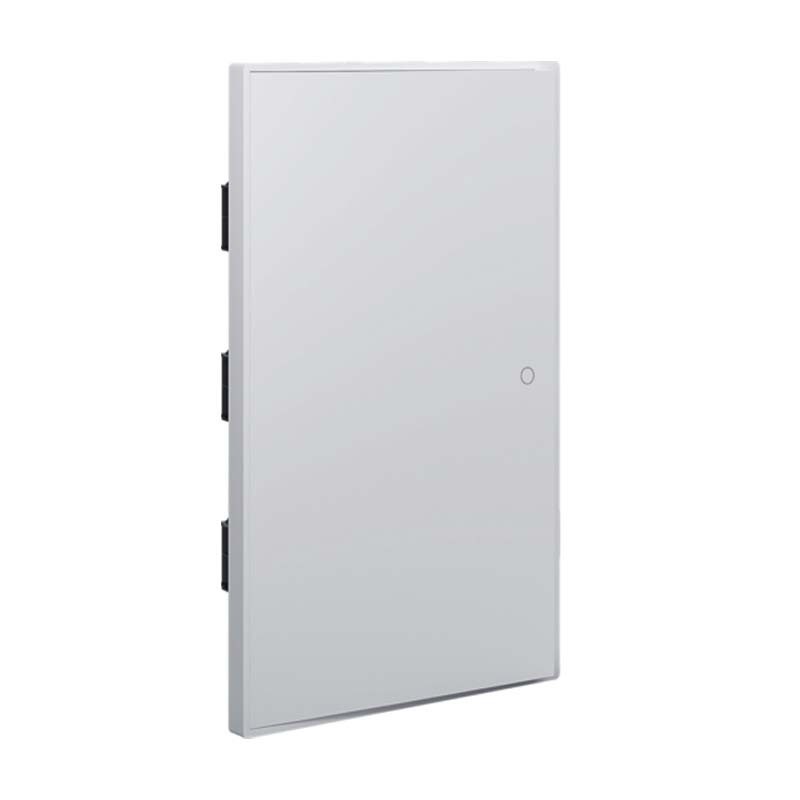

Bocchiotti built-in switchboard 36 modules white door IP40 B04947
IBO B04947
8015892138825
Bocchiotti Pablo line front recessed switchboard, with the following characteristics:
- 36 modules (on three rows)
- Protection degree IP40
- Rated current 63A
Article to be completed with flush mounting box B04917
€60.73
Items Available: 45
: 27
Frequently bought together
Features:
- Series Bocchiotti line Pablo
- 36 modules (on three rows)
- Degree of protection IP40
- Nominal current 63A
- Fixing: flush or wall mounting
- Type of door closure: cylinder lock
- Interlockable
- Type of blind door cover
- Switchboard without lock
- Single door leave
- Switchboard colour white RAL 9016
- Material polycarbonate
- Number of duct entries 5
- Impact resistance grade 08
- Insulation protection class II
- Halogen-free
- Operating temperature -15 / +60 °C
- Not ultraviolet resistant
- Recessed depth 16 mm
- Depth of installed product 25 mm
- Internal depth 16 mm
- Height of installed product 575 mm
- Width of installed product 352 mm
- Article to be completed with flush mount box B04917
There are no reviews
Data sheet
- Type: Front panels
- Modules: 36
- Degree of protection: IP40
- Model: With door
Recessed
