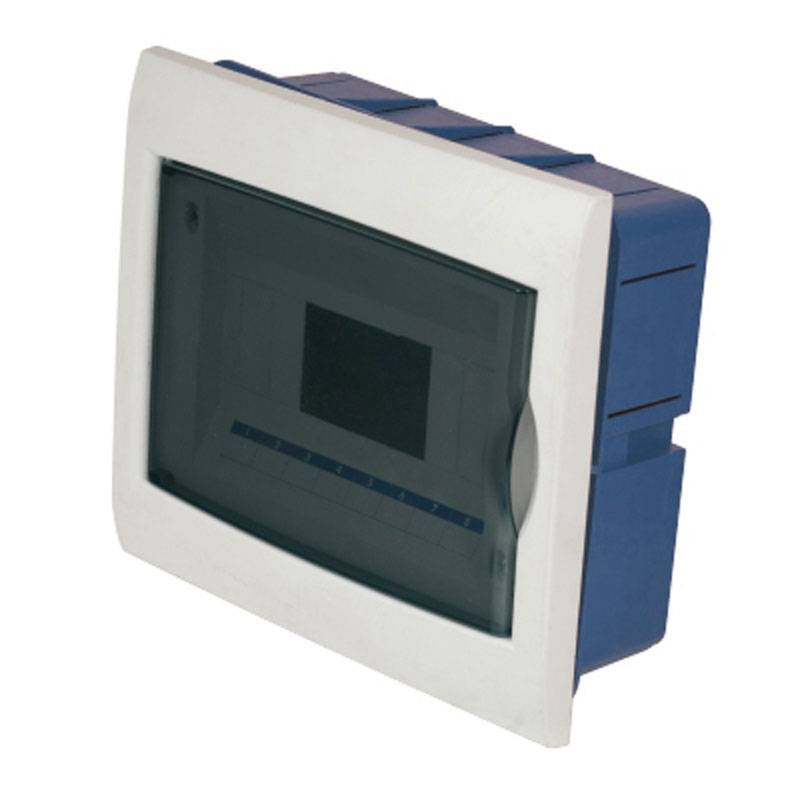

Master Recessed Switchboard with Door 8 Modules IP40 M04508
MST M04508
8015919067596
Master recessed switchboard with smoked door with the following features:
- Number of modules: 8
- Degree of protection: IP40
- Dimensions: 255x215x92 mm
- Wall-mounted installation with DIN rail
€11.11
Items Available: 40
: 12
Features:
- Degree of protection: IP40
- Materials: HIPS (box) - ABS (frame) - PC (door)
- Impact resistance: IK 07
- Glow wire resistance test: 650ºC
- Dimensional stability +5/+60 degrees
- Pressure test with ball: 70 degrees
- Applicable standard: EN IEC 60670-1: 2022 (IEC 23-48) - IEC 60670-24: 2014 (IEC 23-49) - EN 62208: 2011
There are no reviews
Data sheet
- Type: Front panels
- Modules: 8
- Degree of protection: IP40
- Model: With door
Recessed
