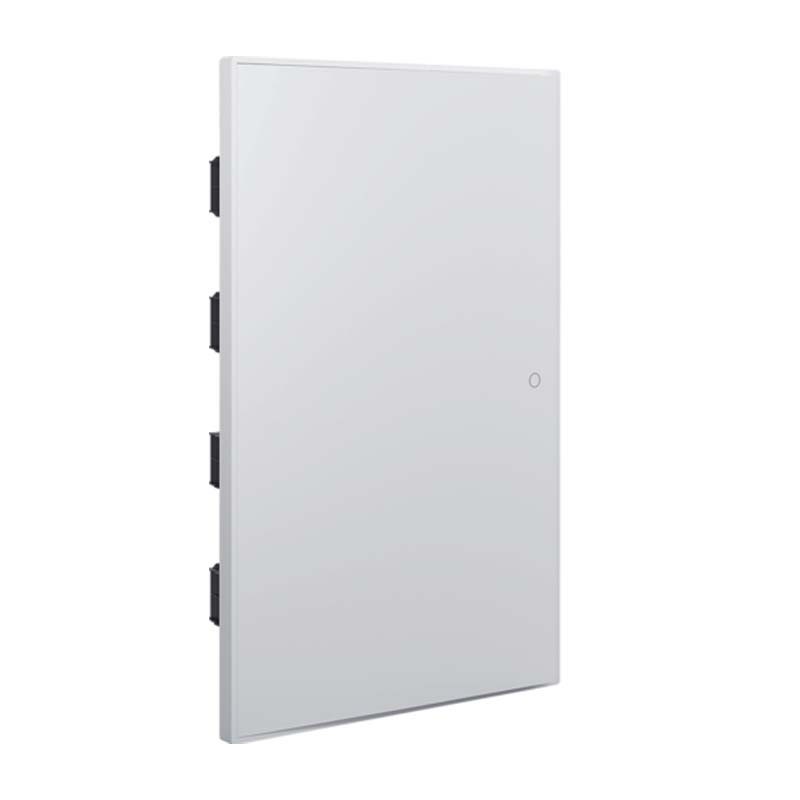

Bocchiotti built-in switchboard 72 modules white door IP40 B04949

Bocchiotti built-in switchboard 72 modules white door IP40 B04949

Bocchiotti
IBO B04949 8015892138849

Bocchiotti Pablo line front recessed switchboard, with the following characteristics:

  • 72 modules (on four rows)
  • Protection degree IP40
  • Rated current 63A

Article to be completed with flush mounting box B04919

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bocchiotti built-in switchboard 72 modules white door IP40 B04949
Bocchiotti built-in switchboard 72 modules white door IP40 B04949
€164.62
€164.62

€164.62
Tax included
Calculate shipping cost

€164.62

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days

Features:

  • Series Bocchiotti line Pablo
  • 72 modules (on four rows)
  • Degree of protection IP40
  • Nominal current 63A
  • Fixing: flush or wall mounting
  • Type of door closure: cylinder lock
  • Interlockable
  • Type of blind door cover
  • Switchboard without lock
  • Single door leave
  • Switchboard colour white RAL 9016
  • Material polycarbonate
  • Number of duct entries 7
  • Impact resistance class 08
  • Insulation protection class II
  • Halogen-free
  • Operating temperature -15 / +60 °C
  • Not ultraviolet resistant
  • Recessed depth 16 mm
  • Recessed depth 25 mm
  • Inside depth 16 mm
  • Height 725 mm
  • Width 460 mm
  • Article to be completed with flush mount box B04919

Data sheet

Type:
Front panels
Recessed
Modules:
72
Degree of protection:
IP40
Model:
With door
