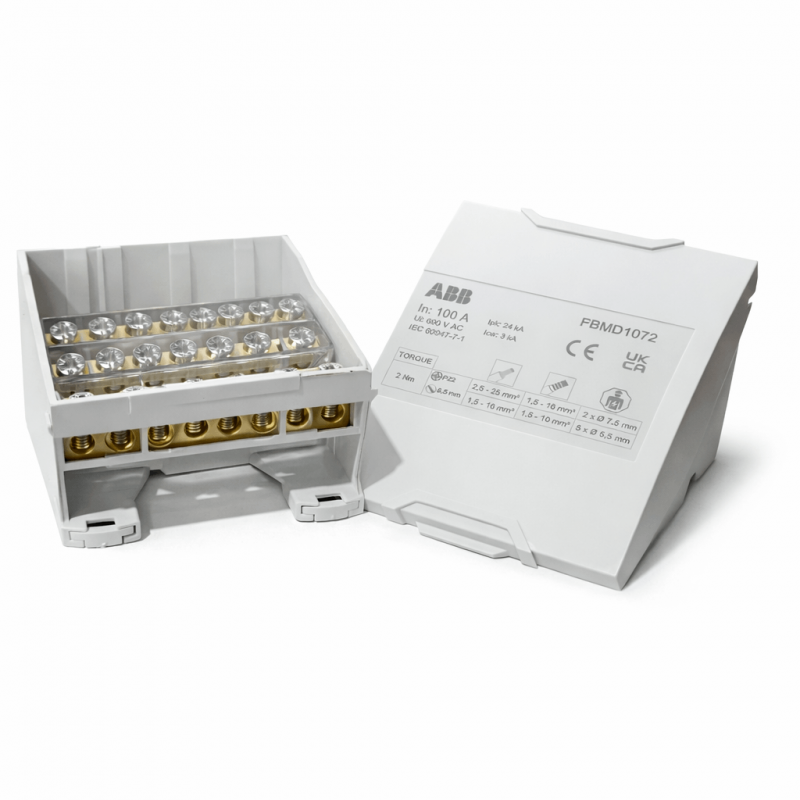

Abb Modular distributor 100A 4P 72.2mm PBMD1072
ABB PBMD1072
8015646004048
Modular distributor ABB PBMD1072 100A 4P: compact solution for orderly power distribution in System pro E panels, improving wiring, maintenance, and system reliability.
-
100 A: suitable for power distribution in electrical panels
-
4 poles (4P): ideal for distribution on multiphase lines with neutral
-
Optimized footprint: 72.2 mm width in modular format
-
Designed for ABB systems: System pro E power / control (IS2) / energy
-
Neater wiring: helps centralize and simplify distribution
-
Compact and lightweight: 0.22 kg for easy integration into the panel.
€51.24
Items Available: 5
: 1
Further Abb circuit breaker combinations:
Modular distributor ABB 100A 4P: clean distribution in the panel
The modular distributor ABB PBMD1072 is designed to make the management of electrical distribution within the panel more efficient. In many installations, bringing power to multiple users or multiple protection devices (switches, circuit breakers, disconnectors, power supplies, and control modules) can become complex and unreadable wiring. A modular distributor allows for organizing power distribution, reducing conductor tangles and improving the clarity of the system.
4 poles: a practical solution for multiphase systems
The 4P configuration is particularly useful when it is necessary to distribute multiple conductors in a coordinated manner (for example, three-phase lines with neutral, or multiple lines managed in parallel according to panel logic). This helps maintain a consistent and easily verifiable wiring structure, simplifying both commissioning and subsequent interventions. In a well-designed panel, readability is a tangible advantage: it reduces errors, speeds up fault finding, and makes system expansion more immediate.
Ideal for System pro E: power, control, and energy
The PBMD1072 is suitable for various ABB panel families:
-
System pro E power modular panels
-
System pro E control (IS2) automation and control panels
-
System pro E energy secondary distribution panels
This compatibility makes it a versatile component for both industrial applications (automation, machines, auxiliaries) and secondary distribution in the tertiary sector, where order, standardization, and installation speed make a difference.
Compact dimensions: more useful space, tidier panel
With a width of 72.2 mm, a height of 104.5 mm, and a depth of 49.7 mm, the ABB distributor offers a compact footprint, promoting a rational arrangement of components and leaving more space for internal ducting. The net weight of 0.22 kg also contributes to practical management during assembly and wiring. In summary, it is an accessory that improves the panel layout and the perceived quality of the installation.
There are no reviews
Data sheet
- Type: Terminal blocks
- Poles: 4P
- Amps: 100A
