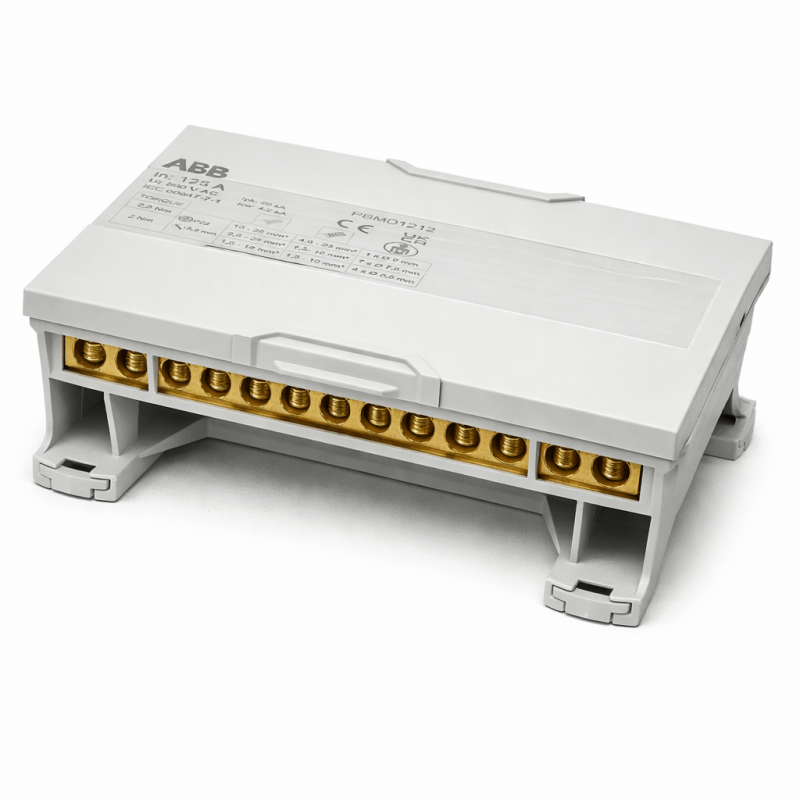

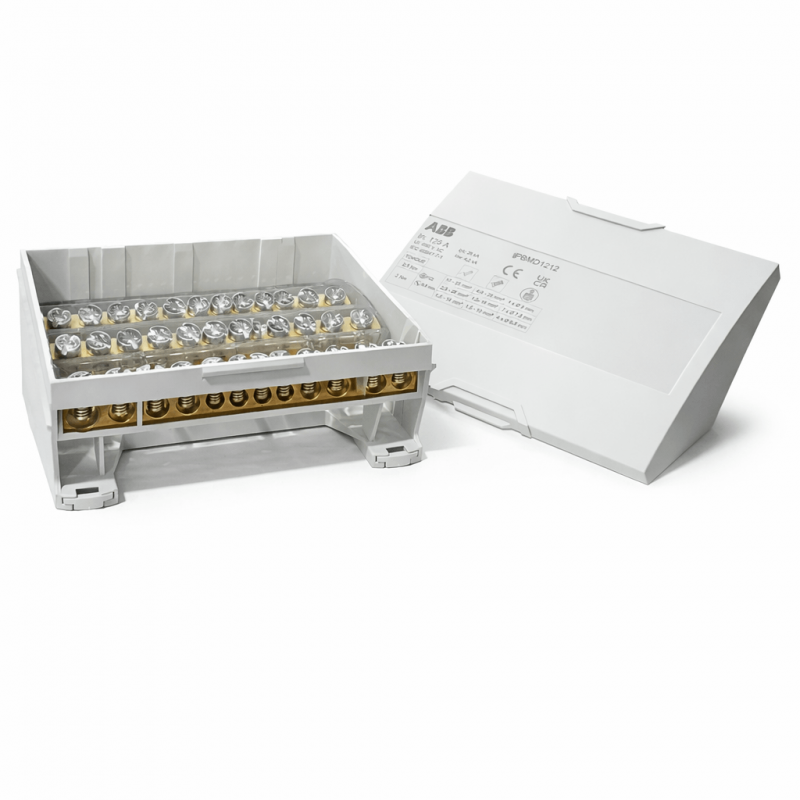

Abb Distributor module 125A 4P 127.2mm PBMD1212
ABB PBMD1212
8015646004055
Distributor module ABB PBMD1212 125A 4P: professional solution for distributing power in an orderly manner in System pro E panels, improving wiring, accessibility, and maintenance.
-
Nominal current 125 A: ideal for panels with more demanding loads and lines
-
4 poles (4P): effective distribution on multiphase systems with neutral
-
Optimized modular footprint: 127.2 mm width
-
Compatible with ABB systems: System pro E power / control (IS2) / energy
-
Cleaner and more readable wiring: reduces jumpers and clutter in the panel
-
Compact and robust structure: 0.43 kg for reliable installations.
€80.52
Items Available: 12
: 1
Further Abb circuit breaker combinations:
Distributor module ABB 125A 4P: more orderly power distribution
The ABB PBMD1212 distributor module is designed to simplify the management of electrical distribution within the panel. In many installations, power needs to be distributed to multiple devices (protection switches, disconnectors, power supplies, control modules) and wiring can become complex and difficult to read. Using a distributor module means obtaining a centralized distribution point, with more rational connections and an overall cleaner panel, a concrete advantage both during assembly and during inspections and maintenance.
4P: ideal for multiphase systems and coordinated distributions
The 4P configuration is particularly useful when working on three-phase systems with neutral or on distributions that require coordinated management of conductors. Having a structured distribution helps maintain consistency in the panel layout, reduces the risk of connection errors, and speeds up the identification of any anomalies. In a well-organized panel, it is also easier to make future expansions: adding a new line or a new component becomes a quicker and more orderly operation.
Suitable for System pro E: a cross-component for multiple applications
The PBMD1212 is suitable for various families of ABB panels, covering both power and automation needs:
-
System pro E power modular panels
-
System pro E control (IS2) automation and control panels
-
System pro E energy secondary distribution panels
This versatility makes it a consistent choice for standardizing components and maintenance in installations with multiple panels or mixed architectures (distribution + control).
Dimensions and space: space managed optimally in the panel
With a width of 127.2 mm, height of 104.5 mm, and depth of 49.7 mm, the distributor integrates compactly into modular panels, maintaining useful space for ducts, wiring, and adjacent devices. The net weight of 0.43 kg suggests a solid structure, suitable for installations where mechanical reliability and connection stability are important.
There are no reviews
Data sheet
- Type: Terminal blocks
- Poles: 4P
- Amps: 125A
