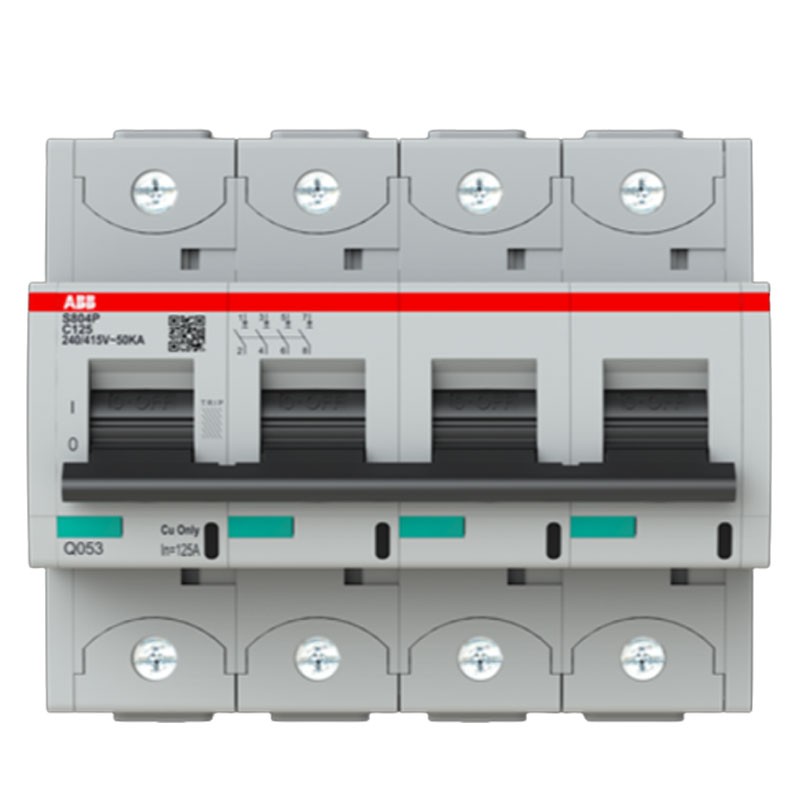

Abb circuit breaker 4P 125A 50KA C S804P 6M S804PC125


ABB S804PC125 7612271416492

Abb circuit breaker series S804P, with the following characteristics:



  • Tripping curve: C
  • Number of poles: 4
  • Number of modules: 6,5
  • Rated current: 125 amps
  • Rated voltage intensity Uimp (kV): 6
  • Frequency range: 50/60 Hz
  • Overvoltage category: 3
  • Pollution degree: 3
  • Additional equipment possible: E
  • Degree of protection: IP20
  • Ambient temperature during operation: -25/+60°C
  • Multi-core pluggable conductor cross-section (mm²): 0 - 50
  • Connectable unipolar conductor cross-section (mm²): 0 - 70
  • Rated breaking capacity: 50Ka
Request info about this product

Abb circuit breaker 4P 125A 50KA C S804P 6M S804PC125

€466.75
€466.75

Abb circuit breaker 4P 125A 50KA C S804P 6M S804PC125

€466.75
Tax included
klarna Pay in installments with Klarna
qty

Abb circuit breaker 4P 125A 50KA C S804P 6M S804PC125

€466.75

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.




A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.



Features:

  • Abb series
  • Flush mounting: Nei
  • Neutral conductor connection: Nei
  • Explosion-proof: Nei
  • Rated breaking capacity Icn to EN 60898 at 230 V (kA): 15
  • Rated breaking capacity Icn according to EN 60898 at 400 V (kA): 15
  • Rated breaking capacity Icu according to IEC 60947-2 at 230 V (kA): 50
  • Rated breaking capacity Icu according to IEC 60947-2 at 400 V (kA): 4.5

Data sheet

Voltage:
415VAC
Modules:
6
Poles:
4P
Curve:
C
Power:
50KA
Amps:
125A
Circuit Protections:
Circuit breakers
