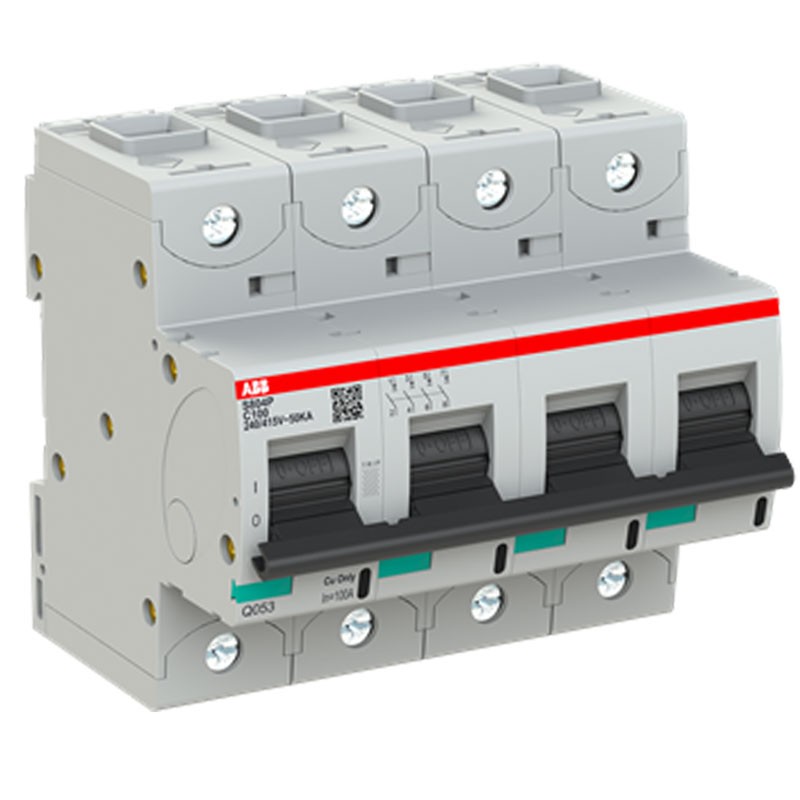

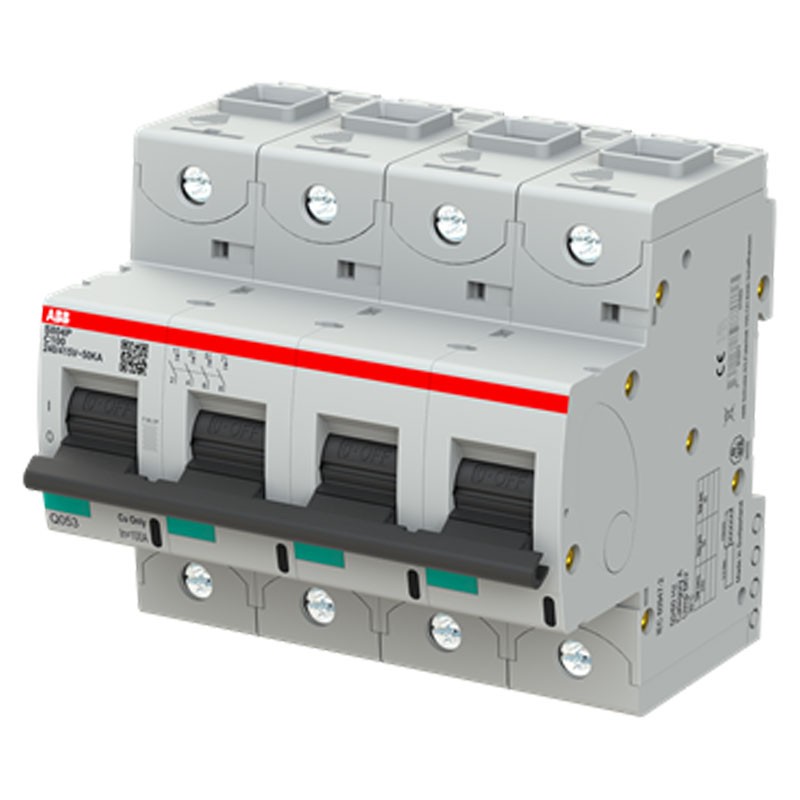

Abb circuit breaker 4P 100A 50KA C S804P 6M S804PC100


ABB S804PC100 7612271416454

Abb circuit breaker series S804P, with the following characteristics:



  • Tripping curve: C
  • Number of poles: 4
  • Number of modules: 6
  • Rated current: 100 amps
  • Impulse withstand voltage (Uimp) 6 kv
  • Frequency: 50/60 Hz
  • Overvoltage category: 3
  • Pollution degree: 3
  • Degree of protection: IP20
  • Ambient temperature during operation: -25/+60°C
  • Input voltage type: AC/DC
  • Rated breaking capacity: 50Ka
  • Trip type: C
Request info about this product

Abb circuit breaker 4P 100A 50KA C S804P 6M S804PC100

€359.04
€359.04

Abb circuit breaker 4P 100A 50KA C S804P 6M S804PC100

€359.04
Tax included
klarna Pay in installments with Klarna
qty

Abb circuit breaker 4P 100A 50KA C S804P 6M S804PC100

€359.04

Buy it within and receive it from Friday, 12 April
Two-year warranty
Secure Payment
Easy return within 14 days

Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.




A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.







Features:

  • Abb series
  • Rated voltage (Ur): AccToIec 609472 690V AC - AccToIec 609472 500V DC
  • Rated operating voltage: according to IEC 60898-1 400V
  • Rated insulation voltage (Ui):according to IEC/EN 60664-1 690V
  • Connection capacity: Flexible 1...50 mm² - Rigid 1...70 mm²
  • Rated short-circuit capacity: (230 V) 15 kA - (400 V) 15 kA
  • Rated extreme short-circuit capacity (Icu):(230 V) 50 kA - (400 V) 4.5 kA
  • Rated service short-circuit capacity (Ics):(240 / 415 V AC) 40 kA
  • Cable stripping length: 19 mm
  • Ambient air reference temperature: 30 °C
  • Product width: 106.0 mm
  • Product height: 95.0 mm
  • Product depth: 82.5 mm
  • Product net weight: 0.980 kg
  • Built-in depth (t2): 82.5 mm
  • Tightening torque: 3.5 Nm
  • Actuator marking: I / O
  • DIN rail mounting: TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm Mounting Rail) according to IEC 60715
  • Mounting position: any
  • Recommended screwdriver: Pozidriv 2
  • Power loss: at Rated Operating Conditions per pole 8W
  • Contact position indication: ON / OFF / TRIP
  • Reference Standards: IEC/EN 60947-2

Data sheet

Modules:
6
Poles:
4P
Curve:
C
Power:
50KA
Amps:
100A
Circuit Protections:
Circuit breakers
