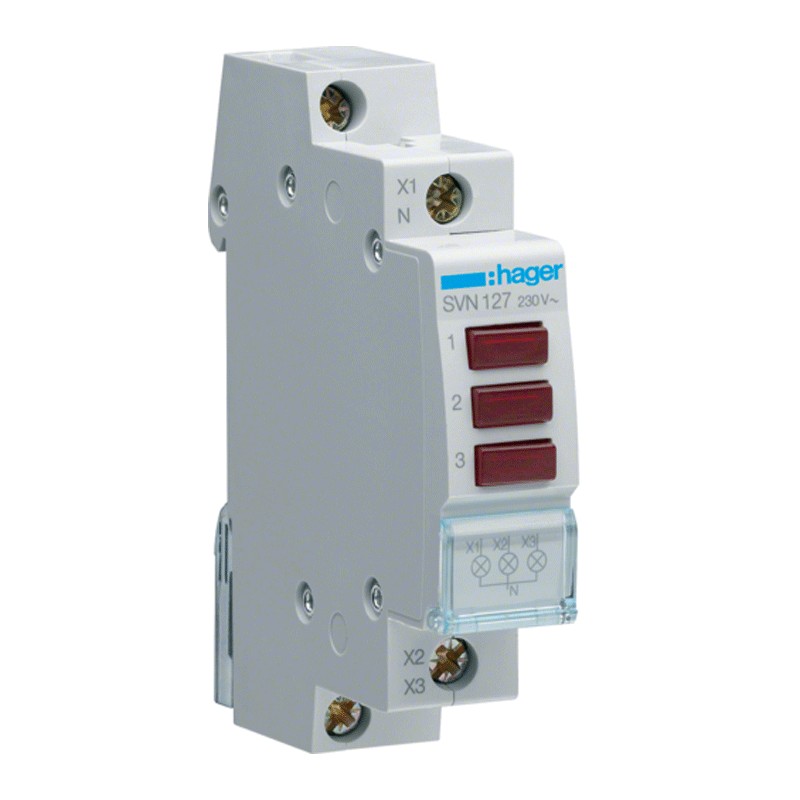

Hager Signal Light with 3 Red LEDs 1 Module 230V SVN127
HAG SVN127
3250615721716
Hager Signal Light:
- 3 Red Led
- 1 Module
- Rated operating voltage AC 230V
Hager Signal Light with 3 Red LEDs 1 Module 230V SVN127
€40.30
€40.30
Tax included
Tax included
Pay in installments with Klarna
Items Available: 113
Further Hager circuit breaker combinations:
Features:
- Rated frequency 50/60 Hz
- Rated insulation voltage 250 V
- Rated fault holding current 4000 V
- Frequency (ETIM numerical value range) 50 to 60 Hz
- Total power dissipation 0.8 W
- Depth of installed product 62 mm
- Height of installed product 83 mm
- Width of installed product 17.5 mm
- LED lamp type
- Tightening torque 1.7Nm
- Minimum cross-section with flexible cable 0.75 / 6mm²
- Minimum cross-section with rigid cable 0.75 / 10mm²
- Type of lamp holder Fix
- Screw connection type
- Enclosure degree of protection IP20
- Operating temperature -2050 °C
- Pollution degree / IEC60664/IEC60947-2 3
- Altitude 2000m
- Storage/transport temperature -40/+80 °C
Componenti di buona fattura. Sinceramente ero un po’ scettico sulla qualità del prodotto in quanto non ho mai installato questa azienda, ma mi sbagliavo. Consigliato!
Data sheet
- Type:
- Alert
- Voltage:
- 230VAC
- Modules:
- 1
- Light colour:
- Red
