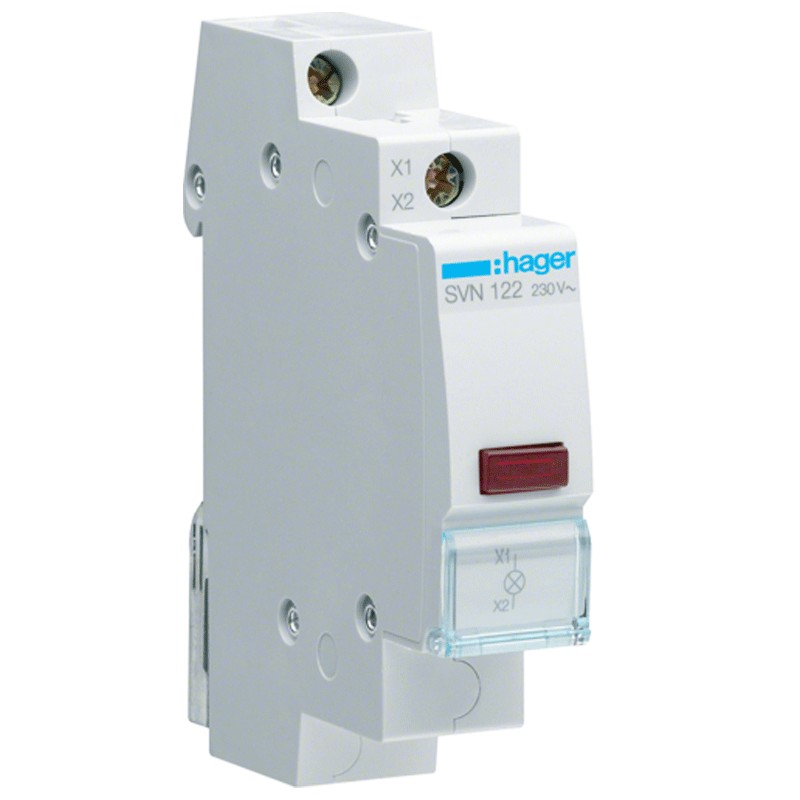

Hager indicator unit DIN 1 module 230V red SVN122
HAG SVN122
3250615721624
Hager pilot light with the following characteristics:
- Nominal operating voltage AC 230 Vac
- Nominal frequency 50/60 Hz
- Rated insulation voltage 250 Vac
- Rated fault holding current 4000 V
- LED colour red
- Degree of protection IP20
- Operating temperature -20 +50 °C
- Pollution degree 3
Hager indicator unit DIN 1 module 230V red SVN122
€17.26
€17.26
Tax included
Tax included
Pay in installments with Klarna
Items Available: 135
Further Hager circuit breaker combinations:
Module with indicator light to give a clear indication of the status of the circuit, an associated device or for monitoring.
Features:
- Hager series
- Nominal operating voltage 230 Vac
- Rated frequency 50/60 Hz
- Rated insulation voltage 250 Vac
- Rated fault withstand current 4000 V
- Total power dissipation 0.8 W
- LED colour red
- Depth 62 mm
- Height 83 mm
- Width 17.5 mm
- Tightening torque 1.7 Nm
- Min. cross section with flexible cable 0.75 / 6mm²
- Min. cross section with rigid cable 0.75 / 10mm²
- Lampholder type Fix
- Screw connection type
- Degree of protection IP20
- Operating temperature -20 +50 °C
- Pollution degree 3
- Altitude 2000 m
- Storage/transport temperature -40 +80 °C
Componenti di buona fattura. Sinceramente ero un po’ scettico sulla qualità del prodotto in quanto non ho mai installato questa azienda, ma mi sbagliavo. Consigliato!
Data sheet
- Type:
- Alert
- Voltage:
- 230VAC
- Modules:
- 1
- Light colour:
- Red
