Schneider Led Spy Lamp 110/230V led red White A9E18320
SNR A9E18320
3606480088322
Schneider Led indicator lamp, ideal for monitoring the status of circuits and equipment on DIN rail, with the following features:
-
Power supply rating: 110/230V AC - 50/60 Hz
-
Led indicator: long life red
-
Number of Modules: 1
-
Installation: Fixed on symmetrical DIN rail
-
Color: White
€20.22
Items Available: 144
: 28

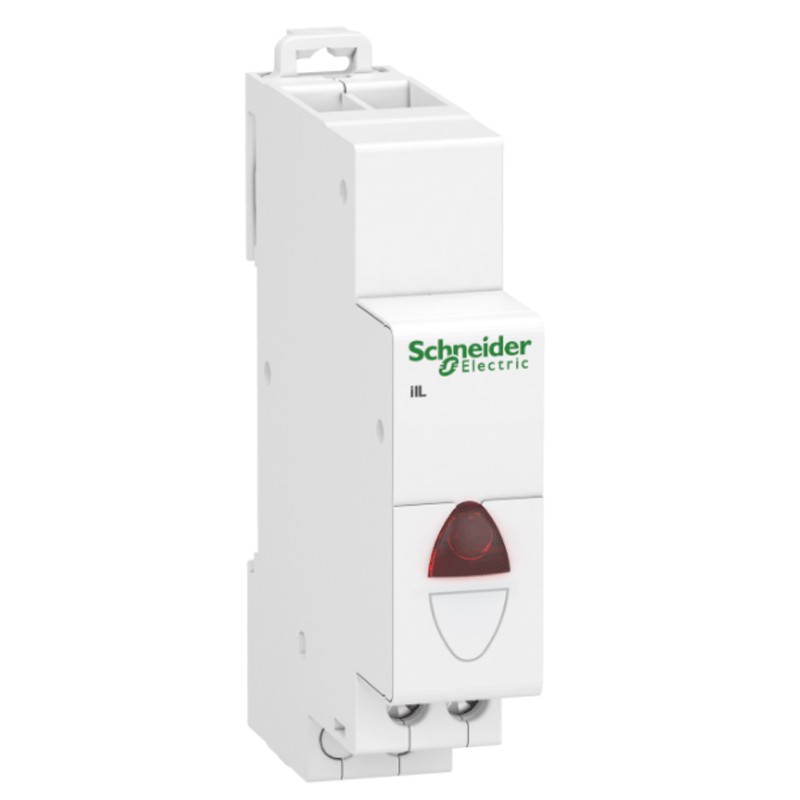

Schneider indicator lamp reliable and compact light indication
The Schneider Led Indicator Lamp is designed to provide a clear and immediate visual indication of the status of an electrical circuit or associated equipment. With its compact 1 DIN module design, it is perfect for installation in residential, industrial or tertiary electrical panels.
Red LED for immediate visual indication
The module integrates a high-visibility red LED, ideal for quick identification of active status or presence of voltage within a system. This type of signaling is useful for constant monitoring and to facilitate maintenance or verification interventions by technicians and operators.
Din-rail installation: simple and safe
The fixed mounting mode on symmetrical DIN rails makes the module extremely convenient to install in standard electrical panels. The mount is compatible with all common distribution systems, ensuring seamless integration with other Schneider modular devices.
Designed to withstand even harsh environments
Built to Schneider's highest quality standards, the pilot light is resistant to harsh environmental conditions: it can work in temperatures from -35°C to +70°C, withstands relative humidity up to 95 percent at 55°C, and is classified with pollution degree 3 and tropicalization 2, confirming its suitability for use in industrial environments or exposed installations.
Precise technical details for safe wiring
The module provides a cable stripping length of 9 mm and a recommended tightening torque of 1 Nm, ideal parameters to ensure a stable and secure connection. The white housing helps maintain order and clarity in the electrical panel.
Schneider Indicator Lamp Technical Specifications
| Parameter | Value |
|---|---|
| DIN module | 1 |
| Rated supply voltage | 110-230V AC, 50 / 60 Hz |
| Indicator | Red LED |
| Mounting | Symmetrical DIN rail, fixed |
| Color | White |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 69.5 mm |
| Degree of protection | IPxx B |
| Pollution degree | 3 |
| Tropicalization | 2 |
| Operating ambient temperature | -35°C TO +70°C |
| Storage temperature | -40°C TO +80°C |
| Relative humidity | Up to 95% at 55°C |
| Wire stripping length | 9 mm |
| Terminal tightening torque | 1 Nm |
There are no reviews
Data sheet
- Type: Alert
- Voltage: 110/230VAC
- Modules: 1
- Light colour: Red
