Siemens indicator lamp 1M 230V red 5TE5800
SIE 5TE5800
4001869209883
Siemens indicator lamp, with the following characteristics:
- AC voltage type
- Operating voltage nominal value min 230 Vac, max 230 Vac, with AC at 50/60 Hz 230 Vac
- 1 module
- LED lighting device
- Lens colour red
- Degree of protection IP20
Siemens indicator lamp 1M 230V red 5TE5800
€11.18
€11.18
Tax included
Tax included
Pay in installments with Klarna
Items Available: 1775
Further Siemens circuit breaker combinations:
Module with indicator light to give a clear indication of the status of the circuit, an associated device or for monitoring.
Features:
- Siemens series
- AC voltage type
- Operating voltage nominal value min 230 Vac, max 230 Vac, with AC at 50/60 Hz 230 Vac
- 1 module
- LED lighting device
- Lens colour red
- Degree of protection IP20
- Number of connection terminals / with cross recessed screw
- Conductor cross section connectable with flexible conductor, with processing of the conductor end min 1 mm² / max 6 mm²
- Conductor cross-section connectable to solid conductor min 1.5 mm², max 6 mm² Tightening torque with terminals
- Tightening torque with screw terminals max 1.2 Nm

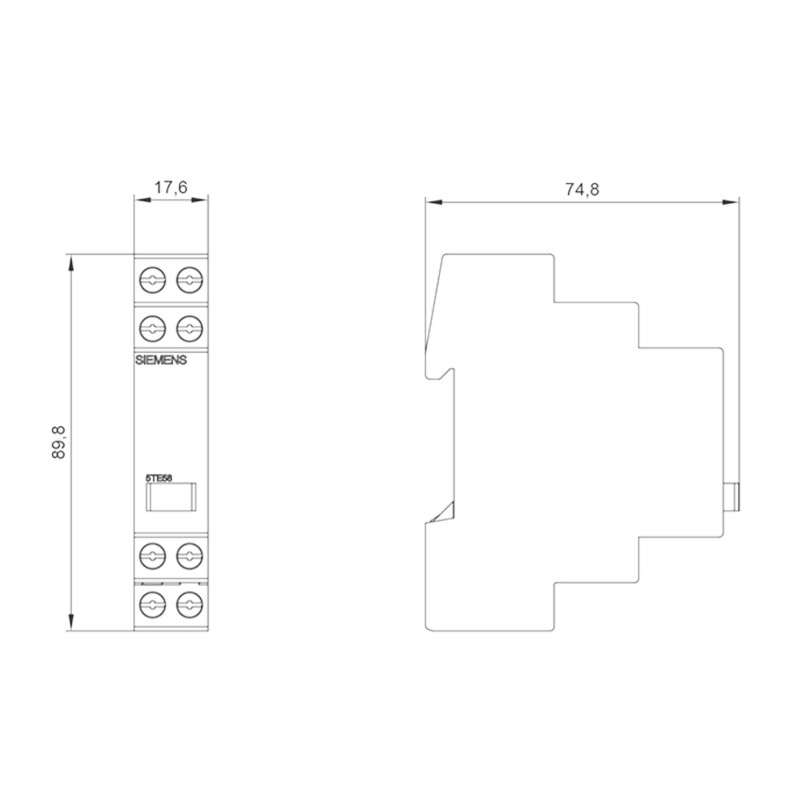

- Installation depth 64 mm
- Ambient temperature min -5 °C max 40 °C
There are no reviews
Data sheet
- Type:
- Alert
- Voltage:
- 230VAC
- Modules:
- 1
- Light colour:
- Red
