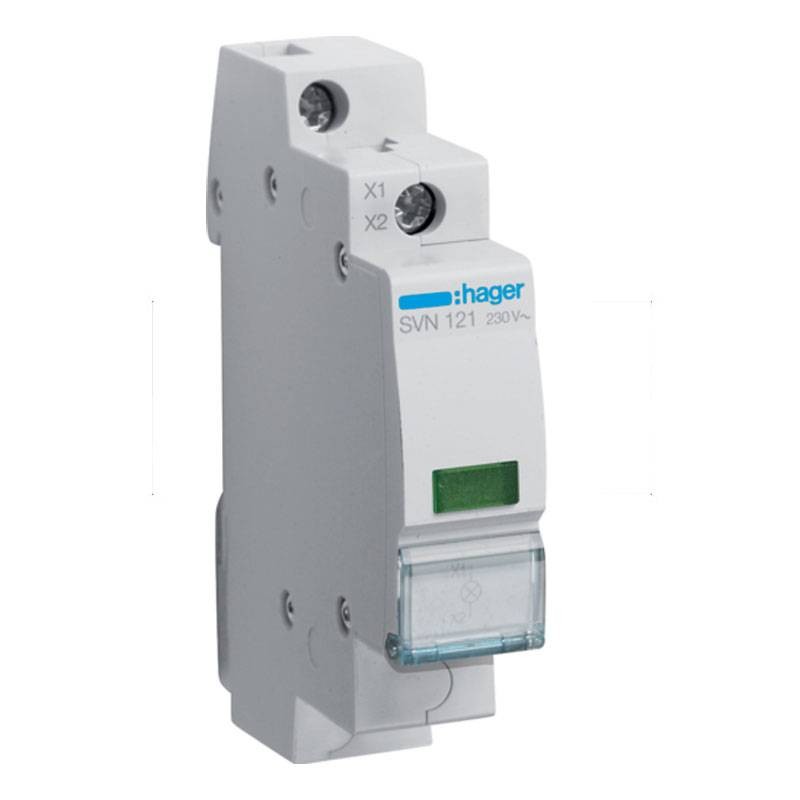

Hager Signal Light Green Led 230V Ac 1 Module SVN121
HAG SVN121
Green LED Hager Signal Light with the following characteristics:
- Rated operating voltage a.c.: 230V
- Rated insulation voltage: 250V
- Rated fault holding current: 4000V
- Total power dissipation: 0.8W
- Lamp type: LED
- Tightening torque: 1.7Nm
- Enclosure degree of protection: IP20
Hager Signal Light Green Led 230V Ac 1 Module SVN121
€17.26
€17.26
Tax included
Tax included
Pay in installments with Klarna
Items Available: 42
Further Hager circuit breaker combinations:
Characteristics:
- Frequency (ETIM numerical value range): 50 to 60 Hz
- Product depth: 62 mm
- Product height: 83 mm
- Product width: 17.5 mm
- Minimum cross-section with flexible cable: 0.75 / 6mm²
- Minimum cross-section with rigid cable: 0.75 / 10mm²
- Type of lamp holder: Fix
- Type of connection: screw
- Operating temperature: -20 to +50°C
- Storage/transport temperature: -40 - +80 °C
- Altitude: 2000m
There are no reviews
Data sheet
- Type:
- Alert
- Voltage:
- 230VAC
- Modules:
- 1
