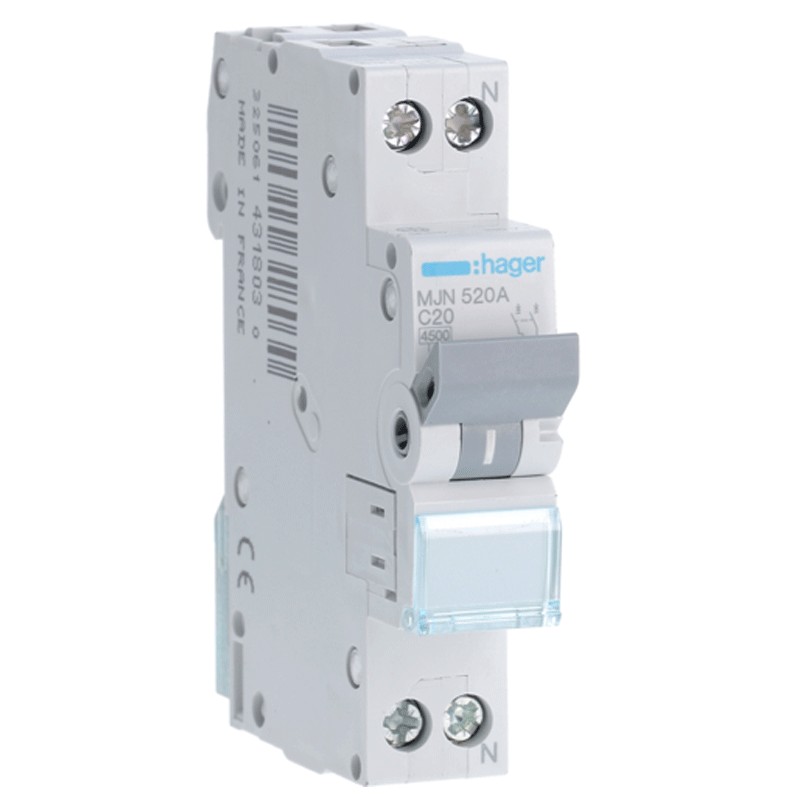

Circuit breaker Hager 1P+N 20A 4.5 KA C 1 form MJN520A
HAG MJN520A
3250614318030
Circuit breaker Hager 1P+N 20A 4.5 KA C 1 form MJN520A
€8.62
Items Available: 89
: 27
Technical characteristics rated operational Voltage ac: 230-240 V rated Frequency: 50/60 Hz rated Current in a 20 A Poles: 2 P Power rated breaking capacity Icn: 4.5 kA Curve: C Number of modules 17.5 mm: 1 Power loss per pole: 1.7 W Capacity of short-circuit - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 1000 the Position of the neutral: the right protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 1,9 Nm Execution tropicalized for all climates
Perfetto per la mia necessità,mi ha permesso di risolvere il problema che avevo,grazie
Recomiendo ,muy buenos productos..........
Data sheet
- Voltage: 230VAC
- Modules: 1
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- Amps: 20A
- Circuit Protections: Circuit breakers
