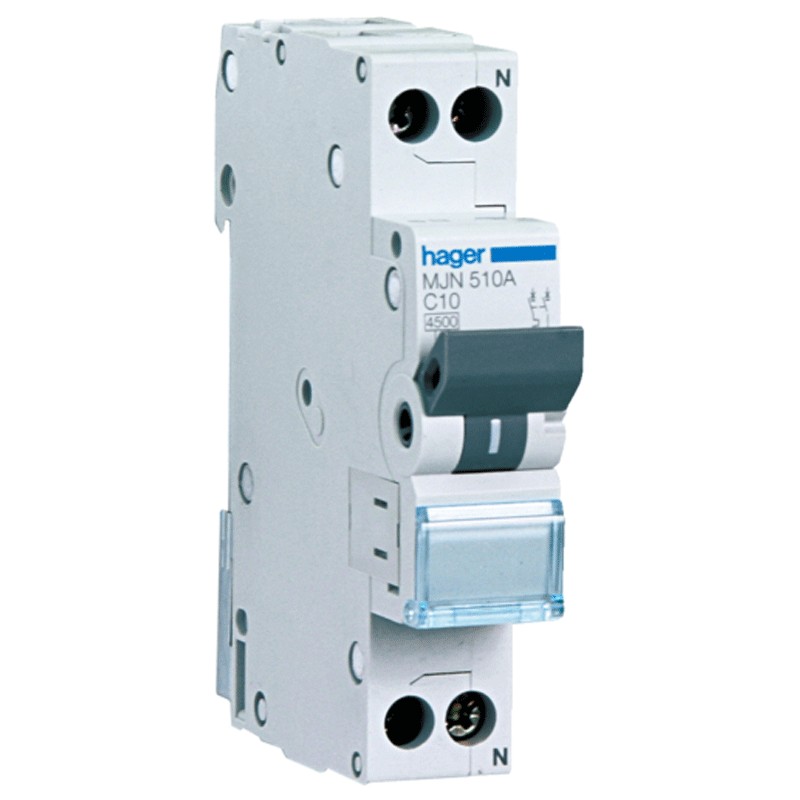

Miniature Circuit Breaker Kit Hager 1P+N 10A 4,5KA C 1 module MJN510A
KIT MJN510A
Kit 10 Pieces Hager circuit breakers with the following features:
- 1 module
- DIN connection (universal for any switchboard on the market)
- Poles 1P+N
- 10 amperes
- Interrupting power 4.5 kA
- Rated operating voltage 230/240 Vac
- Intervention curve C.
With the kit you save compared to individually purchased items
€63.51
Items Available: 39
: 154
Further Hager circuit breaker combinations:
The C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations, residential and functional buildings.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Hager Series
- Thermal magnetic circuit breaker
- Nominal operating voltage 230/240 Vac
- Current In 10A
- Interrupting power Icn 4,5kA
- Frequency 50/60 Hz
- Intervention curve C
- Mounting method DIN rail type O (symmetrical)
- 1 module
- 1P+N protected poles
- Rated insulation voltage 500 V
- Rated fault withstand current 4000 V
- Maximum operating voltage 253 V
- Depth 70 mm
- Height 84.7 mm
- Width 17.5 mm
- Screw terminal connection
- Tightening torque 1.9Nm
- Degree of protection of the housing IP20
- Tropicalised design for all climates
Data sheet
- KIT: Kit Circuit breakers
- Voltage: 230VAC
- Modules: 1
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- Amps: 10A
- Circuit Protections: Circuit breakers
