Abb Digital Multimeter 3 modules D1M15
ABB D1M15
6941593481156
Digital multimeter D1 M15 Abb with the following features:
- Standard: IEC 61557-12 - IEC 62053-21
- Type of current: Mains
- Rated voltage (Ur ): 80-300 (LN) V AC
- Rated current ( I n ): 1 UN - 5 A
- Frequency ( f ): Sampling frequency: 50 ... 60 Hz
- Power consumption (@P cons ): Maximum 5 V-A
- Accuracy: Active energy ±1%.
- Measuring range: Maximum AC voltage 300 V - Maximum AC current 6 A - Maximum frequency 60 kHz
- Number of phases: Single-phase/Three-phase
- Mounting type: DIN rail
- Indicator type: Analogue/digital
Abb Digital Multimeter 3 modules D1M15
€275.42
€275.42
Tax included
Tax included
Pay in installments with Klarna
Items Available: 40
D1M 15 is a multimeter with auxiliary power supply 85-265 V AC/DC, 2 digital outputs, accuracy class 1 for active energy according to IEC 61557-12 PMD, LED display.
Other technical features:
- I/O option: 2 digital outputs
- Number of batteries: 0
- Ambient air temperature: Operating -5 ... 55 °C - Storage -25 ... 70 °C
- Degree of protection: IP51 grade
- Pollution degree: 2

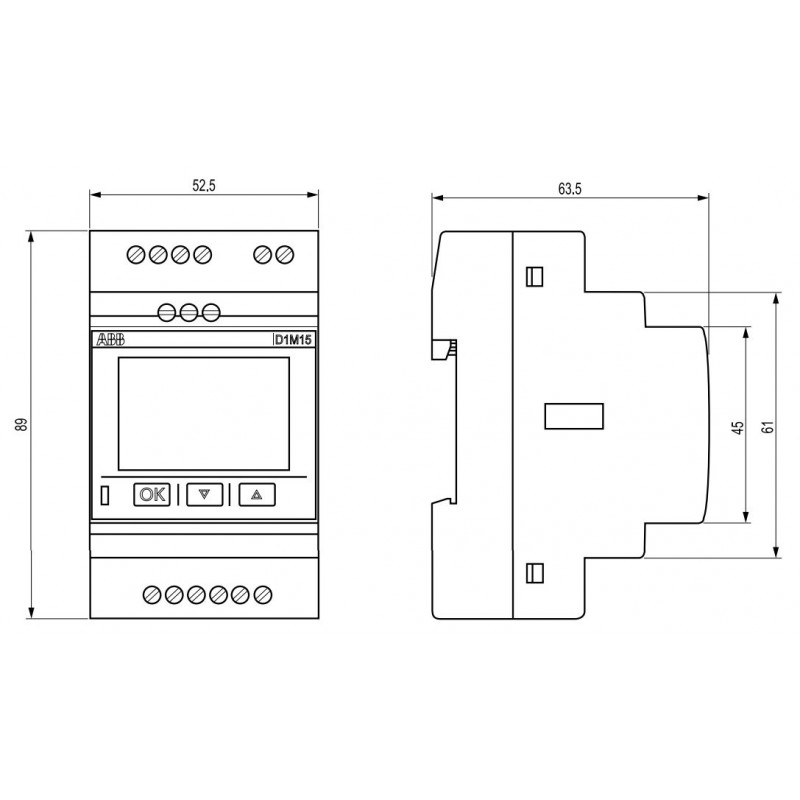

- Net product width: 52.5 millimetres
- Net product height: 89 millimetres
- Net product depth/length: 63.5 millimetres
- Net product weight: 0.252 kg
There are no reviews
Data sheet
- Type:
- Multimeters
