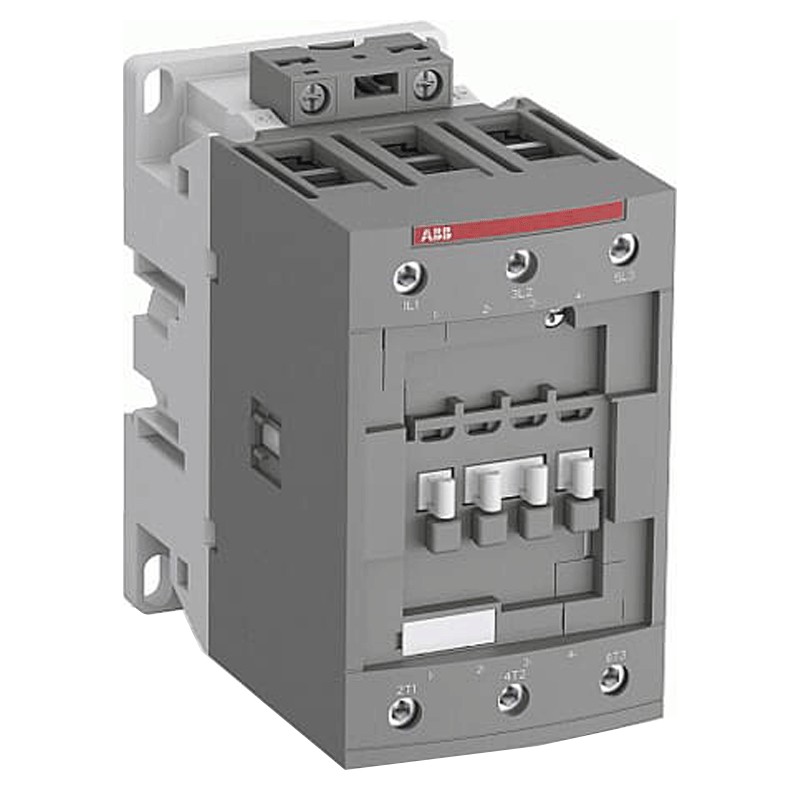

ABB contactor 3 poles 80A 24-60V a.c./d.c. AF80300011
ABB AF80300011
3471523132917
Abb contactor, with the following characteristics
- Main circuit rated operating voltage 1000 Vac
- Nominal control circuit operating voltage DC 24-60 Vac
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 80 amperes
![](https://www.elettronew.com/40264-large_default/abb-contactor-3-poles-80a-24-60v-ac-dc-af80300011.jpg)
ABB contactor 3 poles 80A 24-60V a.c./d.c. AF80300011
€210.47
€210.47
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 10
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Nominal operating voltage main circuit 1000 Vac
- Rated voltage control circuit DC operation 24-60 Vac
- Operating current 80 amperes
- Main circuit rated frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Degree of protectionmain terminals IP10
- Product width 70 mm
- Product depth 116 mm
- Product height 125.5 mm
- Product net weight 1,22 Kg
Data sheet
- Type:
- Contactors
