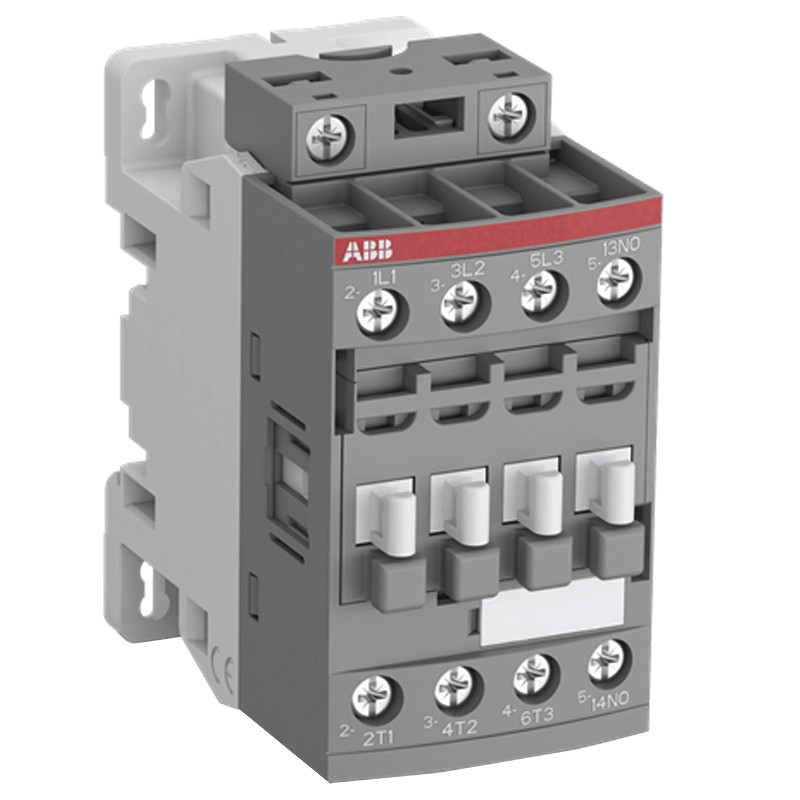

ABB contactor 3 poles 12A 24-60V a.c./d.c. AF12301011
ABB AF12301011
3471523110311
Abb contactor, with the following characteristics
- Rated operating voltage auxiliary circuit 690V , main circuit 690V
- Rated control circuit operating voltage DC 24/60 V
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Rated frequencyauxiliary circuit 50/60 Hz, main circuit 50/60 Hz
- Operating current 12 amperes
€33.10
Items Available: 69
: 14
Frequently bought together
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated operating voltage auxiliary circuit 690V, main circuit 690V
- Rated operating voltage control circuit DC 24/60 V
- Operating current 12 amperes
- Rated frequencyauxiliary circuit 50/60 Hz ,main circuit 50/60 Hz
- 3 poles
- Degree of protection auxiliary terminals IP40, coils IP20, main terminals IP20
- Width 45 mm
- Product depth 77 mm
- Product height 86 mm
- Product net weight 0.27 kg
Data sheet
- Type: Contactors
- Voltage: 24/60V
- Poles: 3P
- Amps: 12A
