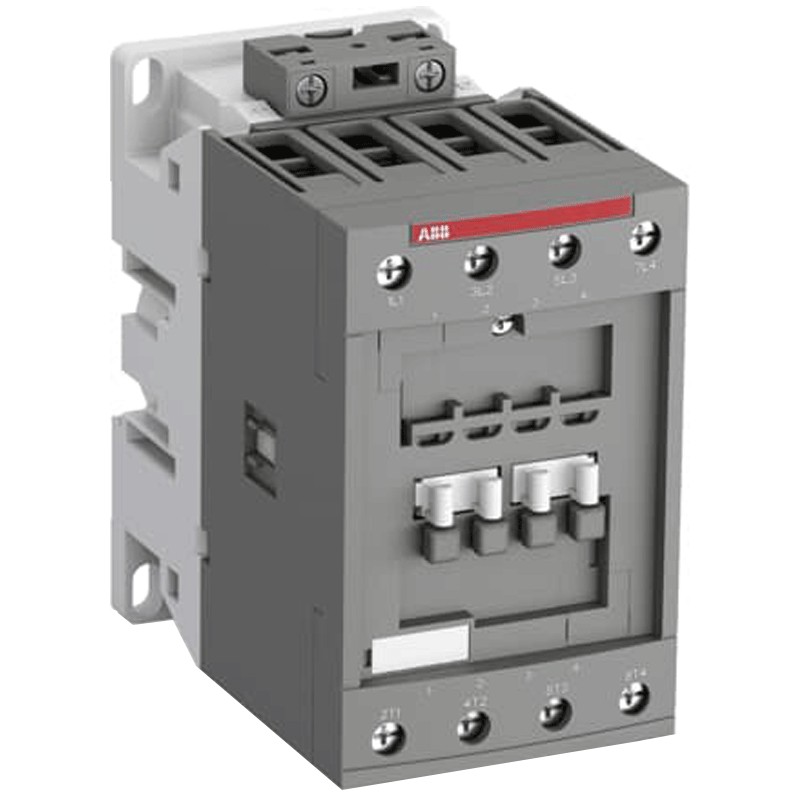

ABB 4-pole contactor 100A AC1 100-250V a.c./d.c. AF52400013


ABB AF52400013 3471523133631

Abb contactor, with the following characteristics

  • Rated main circuit operating voltage 690 Vac
  • Nominal voltage control circuit DC operation 100-250Vac
  • 4 poles
  • DIN connection (universal for any switchboard on the market)
  • Main circuit rated frequency 50/60 Hz
  • Operating current 100 amperes
Request info about this product

ABB 4-pole contactor 100A AC1 100-250V a.c./d.c. AF52400013

€184.52
€184.52

ABB 4-pole contactor 100A AC1 100-250V a.c./d.c. AF52400013

€184.52
Tax included
klarna Pay in installments with Klarna
qty

ABB 4-pole contactor 100A AC1 100-250V a.c./d.c. AF52400013

€184.52

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.

The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.

Features:

  • Abb Series
  • Rated main circuit operating voltage 690 Vac
  • Rated voltage control circuit operation DC 100-250Vac
  • Operating current 100 amperes
  • Main circuit rated frequency 50/60Hz
  • 4 poles
  • Number of NO main contacts 4
  • Number of NC main contacts 0
  • Number of NO auxiliary contacts 0
  • Number of NC auxiliary contacts 0
  • Type of terminal Screw Terminals
  • Coil protection IP20,main terminals IP10
  • Product width 70 mm
  • Product depth 113.5 mm
  • Product height 125.5 mm
  • Product net weight 1,16 Kg

Data sheet

Type:
Contactors
Voltage:
100/250VAC
Poles:
4P
Amps:
100A
