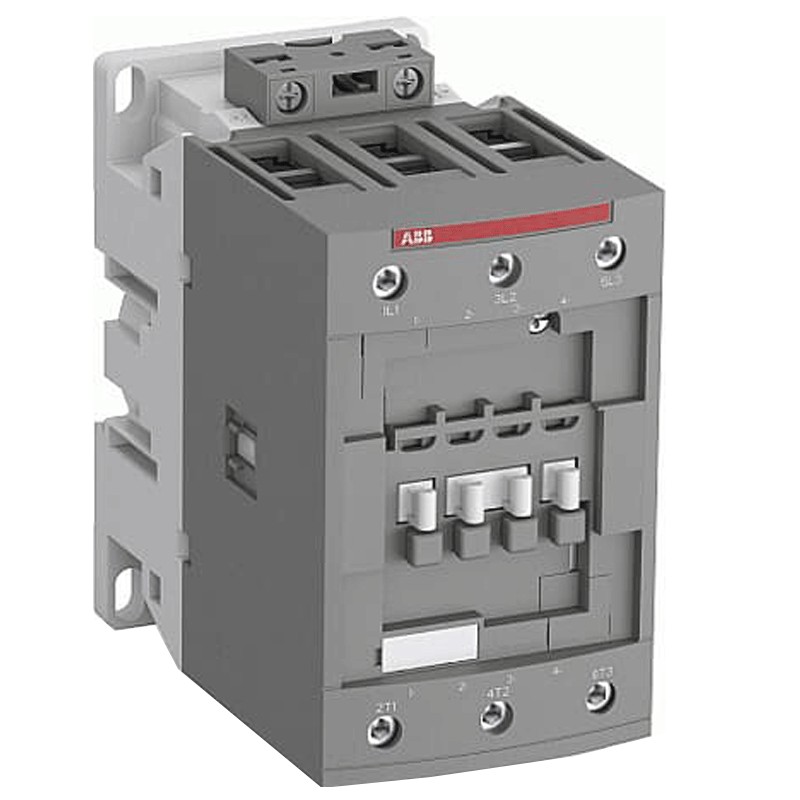

ABB 3-pole contactor 96A 100-250V a.c./d.c AF96300013
ABB AF96300013
3471523133235
Abb contactor, with the following characteristics
- Main circuit rated operating voltage 1000 Vac
- Nominal control circuit voltage DC operation 100-250 Vac
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 96 amperes
![](https://www.elettronew.com/40269-large_default/abb-3-pole-contactor-96a-100-250v-ac-dc-af96300013.jpg)
ABB 3-pole contactor 96A 100-250V a.c./d.c AF96300013
€264.62
€264.62
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 6
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Nominal operating voltage main circuit 1000 Vac
- Rated voltage control circuit DC operation 100-250 Vac
- Operating current 96 amperes
- Main circuit rated frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Degree of protectionmain terminals IP10
- Product width 70 mm
- Product depth 116 mm
- Product height 125.5 mm
- Product net weight 1.17 Kg
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Poles:
- 3P
- Amps:
- 96A
