Fischer Pipe collar FRS double screw M8/10 6 inches 00079458

Fischer
Fischer
FIS 00079458 4006209794586

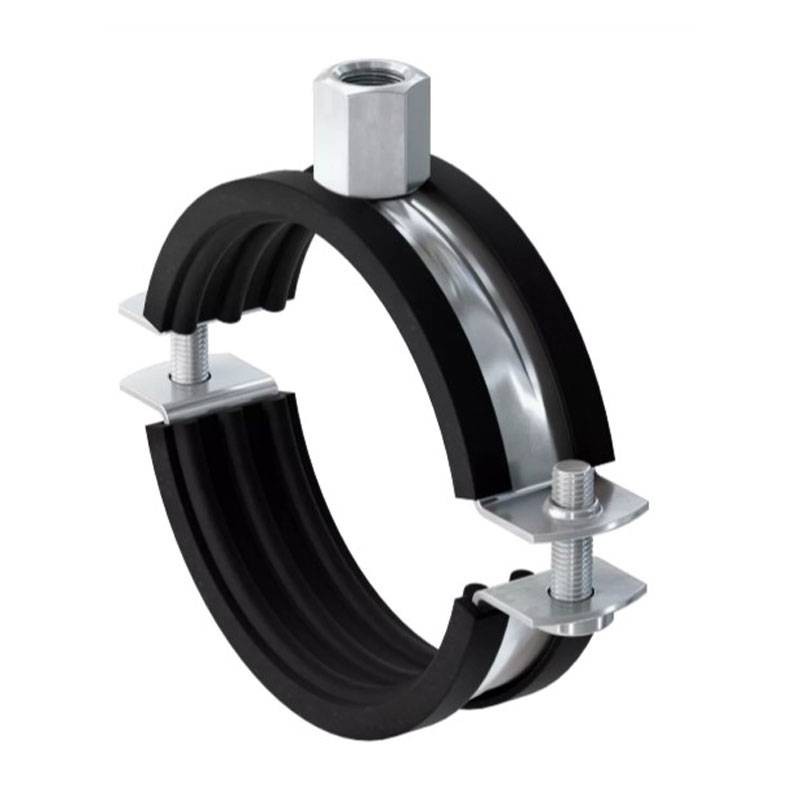

The Fischer FRS pipe collar double screw M8/M10, for 6 inches, ensures robust and adjustable fastening (159–165 mm) with soundproofing insert and R120 fire resistance. Ideal for civil and industrial systems.

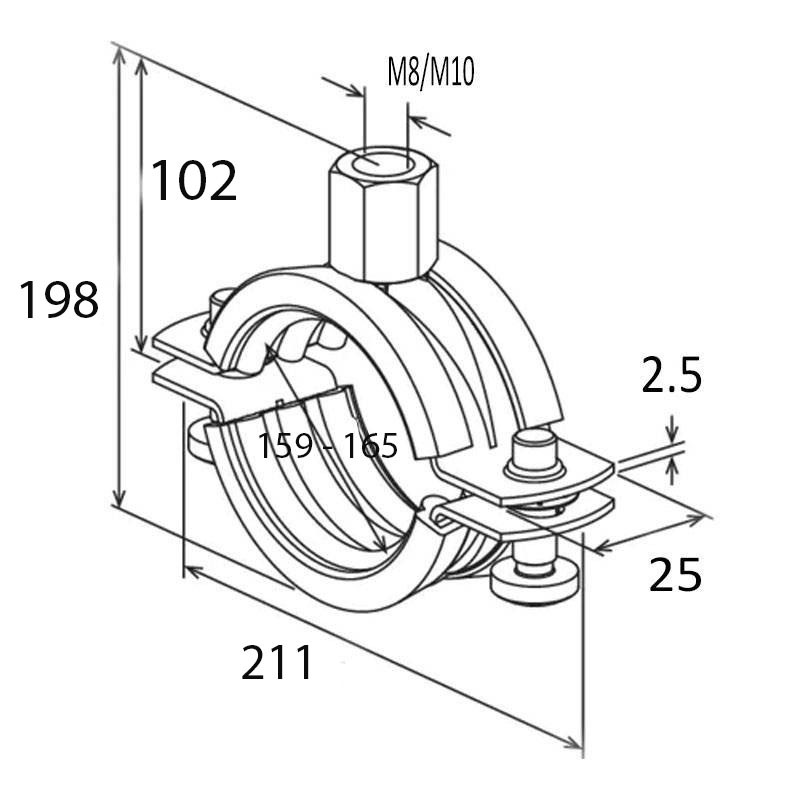

  • Nominal size: 6 inches

  • Clamping range: 159-165 mm

  • Combined threading M8/M10: maximum compatibility with threaded rods and studs

  • Width x Thickness band: 25x2.5 mm

  • Height: 165 mm

  • Width: 187 mm

  • Maximum static load: 2.5 kN

  • Locking screw: M6

  • Fire resistance R120: tested safety for installations with fire protection requirements

  • Material: DD11 steel with cold zinc plating 5–9 µm for good surface protection

  • Insert temperature range: -40 °C ÷ +100 °C

  • Certifications: ETA-21/0253, FEB/FS-75/13 - 2, GS 3.2/14-175-2

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Fischer Pipe collar FRS double screw M8/10 6 inches 00079458
€6.32
€6.13
€6.13

Lowest price in 30 days:
€6.32
Save 3%
€6.13
Tax included
Calculate shipping cost
Offer expires in
Items Available: 47
Further availability of the manufacturer
€6.13

Buy it within and receive it from Tuesday, 17 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Pipe collar Fischer FRS 6 inches M8/M10: professional and adjustable fastening for pipes

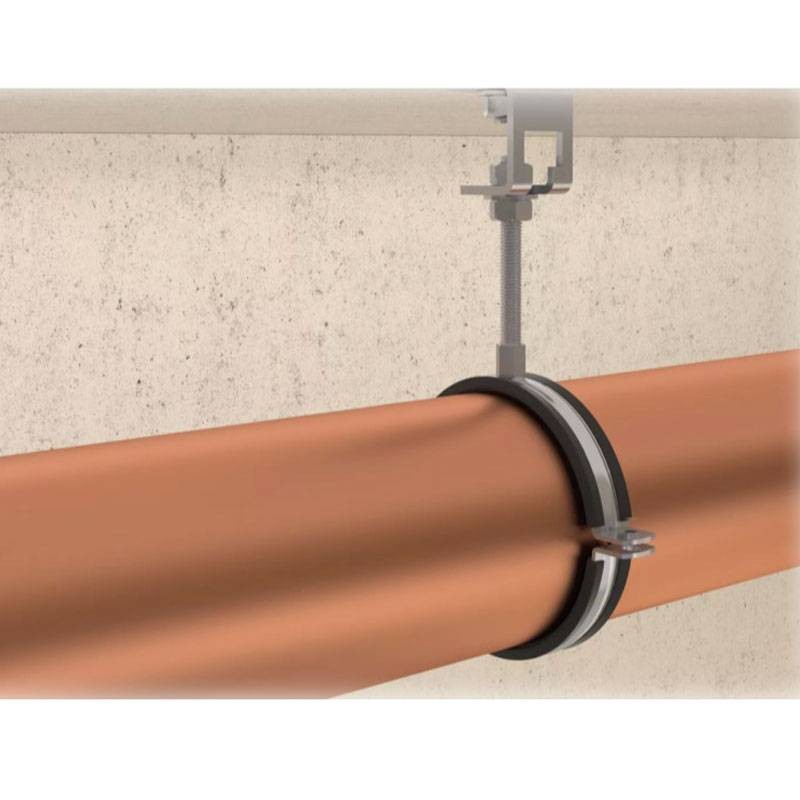

The Fischer FRS collar is designed for the secure mounting of pipes in systems where mechanical reliability, quick installation, and compatibility with different bracketing systems are required. The double screw structure allows for uniform clamping adjustment to the outer diameter of the pipe, improving stability and reducing the risk of play or vibrations over time.

Thanks to the connection nut with combined M8/M10 threading, the installer can choose the most convenient solution on site: threaded rods or double-threaded screws, optimizing time and components.

Soundproofing insert: less noise and more system protection

The SBR/EPDM insert is designed to improve acoustic comfort (reference DIN 4109) by reducing vibration transmission. Additionally, it creates a barrier between the pipe and collar, limiting contact corrosion, especially useful in systems where humidity and condensation can accelerate surface deterioration.

Fire safety: R120 classification

The R120 fire resistance classification makes this collar suitable for installations with fire protection requirements, where it is essential to ensure the functional integrity of the fastening even in critical conditions. An important plus in technical environments, plant rooms, and industrial structures.

Simple and reliable installation

The presence of two screws allows for stable closure and easier adjustment; the protection against screw loss helps to work neatly on site, reducing the risk of loss during assembly. The M6 locking screw completes the system for secure clamping.

There are no reviews

Data sheet

Type:
Collars
Connections:
6 inches
Material:
Steel
