Fischer FRS pipe collar double screw M8/10 3/8 00042535
FIS 00042535
4006209425350

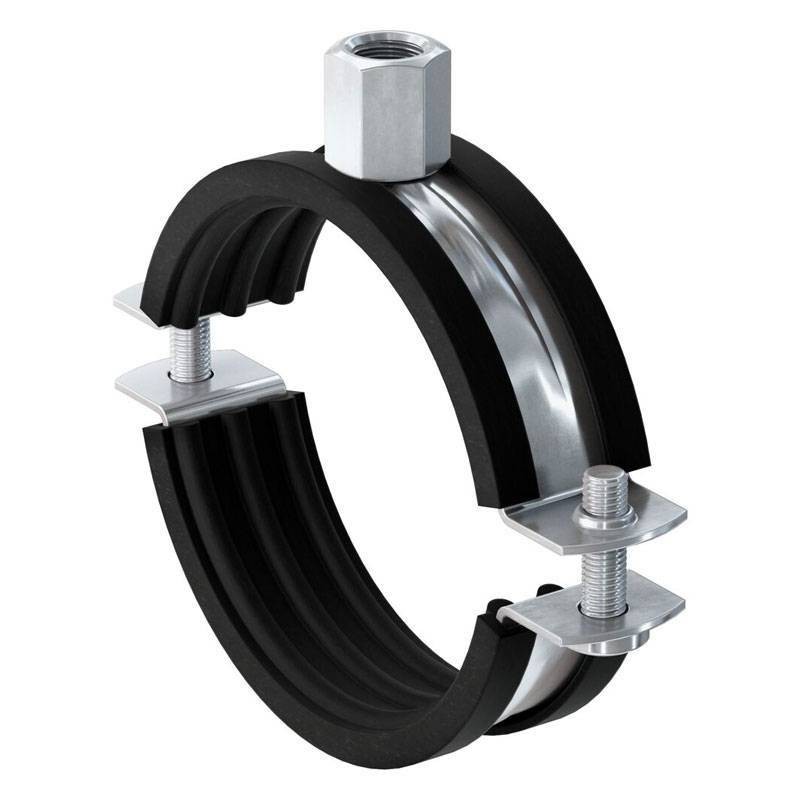

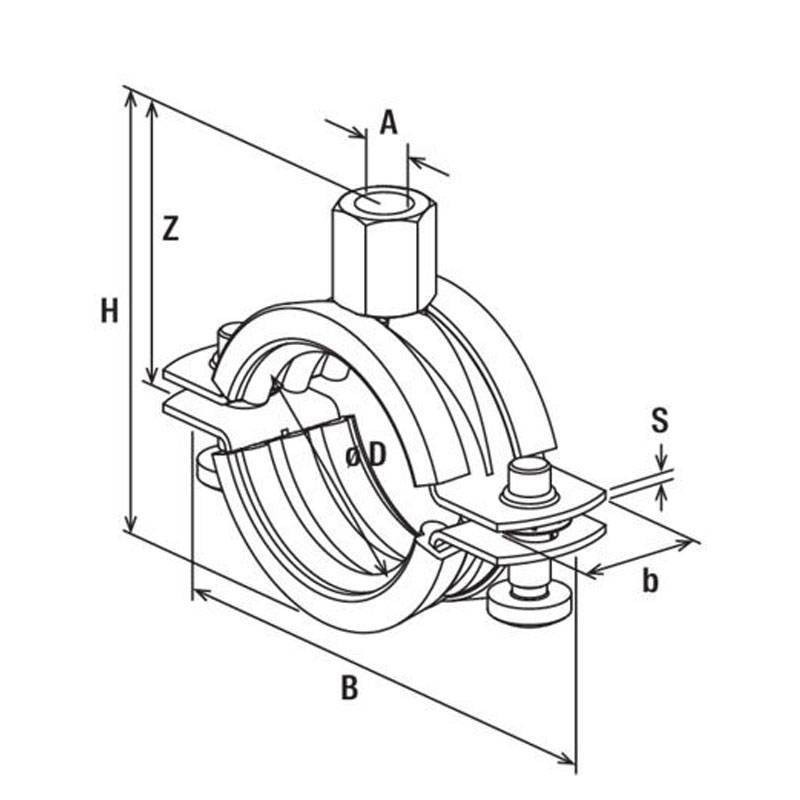

Fischer FRS double screw pipe collar with the following features:
- Connection: 3/8 inch
- Width: 59 mm
- Height: 43 mm
- Width x thickness collar band: 20 x 1.25 mm
- Thread: M8/M10
- Max recommended static load (centered tension): 1.00 kN
- Clamping range: 15-19 mm
- Material: steel
Secure fastening of pipes with threaded rods or double-threaded screws, even when there are fire protection requirements.
Fischer FRS pipe collar double screw M8/10 3/8 00042535
€0.68
€0.68
Tax included
Tax included
Pay in installments with Klarna
Items Available: 725
FRS 55-61 M8/M10 pipe collar for nominal diameter 3/8 in. allows simple assembly of pipes. The fire inspection report ensures functional safety. The two screws allow ideal adaptation to the outer pipe diameter. Sound insulation gasket ensures noise reduction and prevents corrosion. Connecting nut with M8/M10 thread for attaching threaded rods or studs.
Features:
- Material: Steel
- Galvanizing: cold galvanizing
- Connection nut: weld strength, M 8 / M 10, SW 13
- Locking screw: flat head screw with cross
- Sound insulation insert material: SBR/EPDM; chlorine-free; silicone-free
- Sound insulation: per DIN 4109
- Temperature range: -40 °C/+100 °C
- Fire behavior: per DIN 4102: Class B2
Advantages:
- Fire resistance ratio provides independently tested operational safety
- The two screws allow easy adjustment according to the outer diameter of the pipe
- Combined M8/M10 threaded nut enables optimized installation choices
- Soundproofing gasket provides noise protection and prevents contact corrosion
- Screw safety feature ensures trouble-free installation
Data sheet
- Type:
- Collars
- Connections:
- 3/8 inches
- Material:
- Steel
