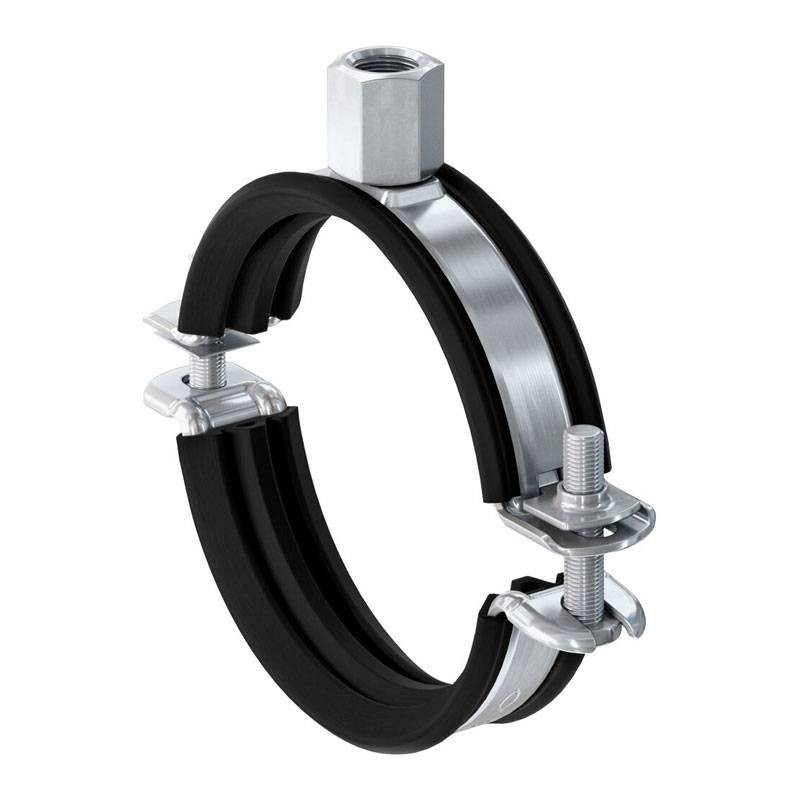

Fischer FRS pipe clamp double screw M8/M10 L 164-172 mm 00544910

Fischer
Fischer
FIS 00544910 4048962317879

Fischer FRS double screw M8/M10 pipe clamp with quick closure and anti-noise gasket, designed for fast and safe pipe installations with threaded rods or screws, with the following features:

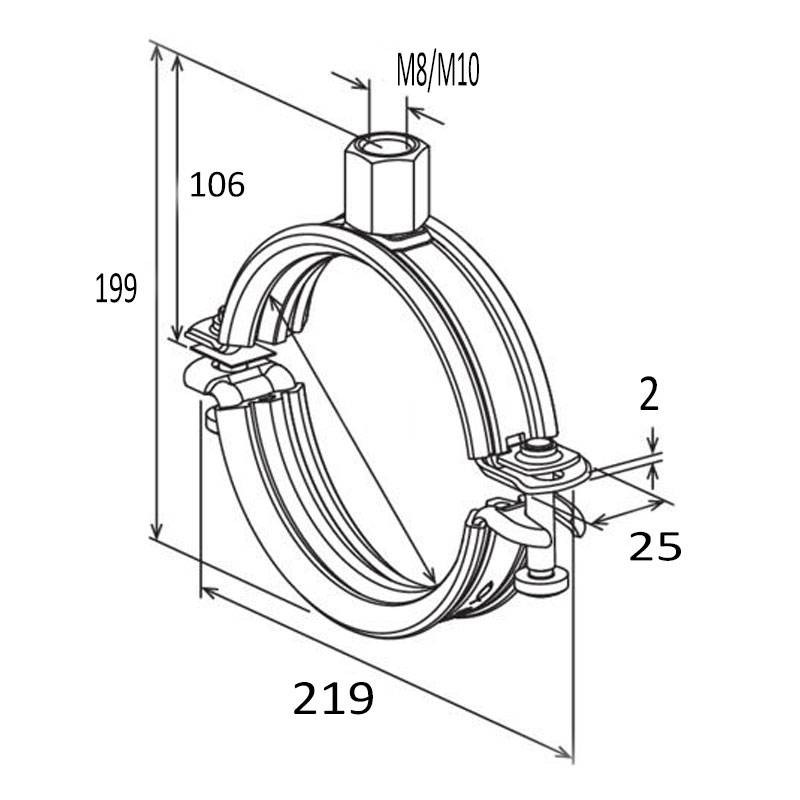

  • Thread: Double M8/M10

  • Nominal size: 6 inches

  • Clamping range: 164-172 mm

  • Material: galvanized steel

  • Band width: 25 mm

  • Band thickness: 2 mm

  • Clamping screw: M6 with combined cross + slot impression

  • Gasket: SBR/EPDM without chlorine and silicones

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fischer FRS pipe clamp double screw M8/M10 L 164-172 mm 00544910
€8.72
€8.72

€8.72
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€8.72

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Fischer FRS pipe clamp double screw M8/M10 L 164-172 mm

Versatility and performance

The Fischer FRS pipe clamp is the ideal solution for fixing pipes due to its robust construction and innovative design. The double-screw quick fastener allows precise adaptation to pipe diameters, while the chlorine- and silicone-free SBR/EPDM gasket ensures sound insulation and compliance with environmental standards.

The metal band with wavy edge adheres perfectly to the gasket, facilitating adjustment of the collar along the pipe. The M8/M10 combination nut simplifies logistics, making this product suitable for multiple applications with threaded rods or screws.

Certified performance

  • Sound insulation: complies with DIN 4109 standards for effective noise reduction

  • Fire resistance: R120 certification for maximum safety in case of fire

  • Maximum static load: up to 2.39 kN with centered tension

Main applications

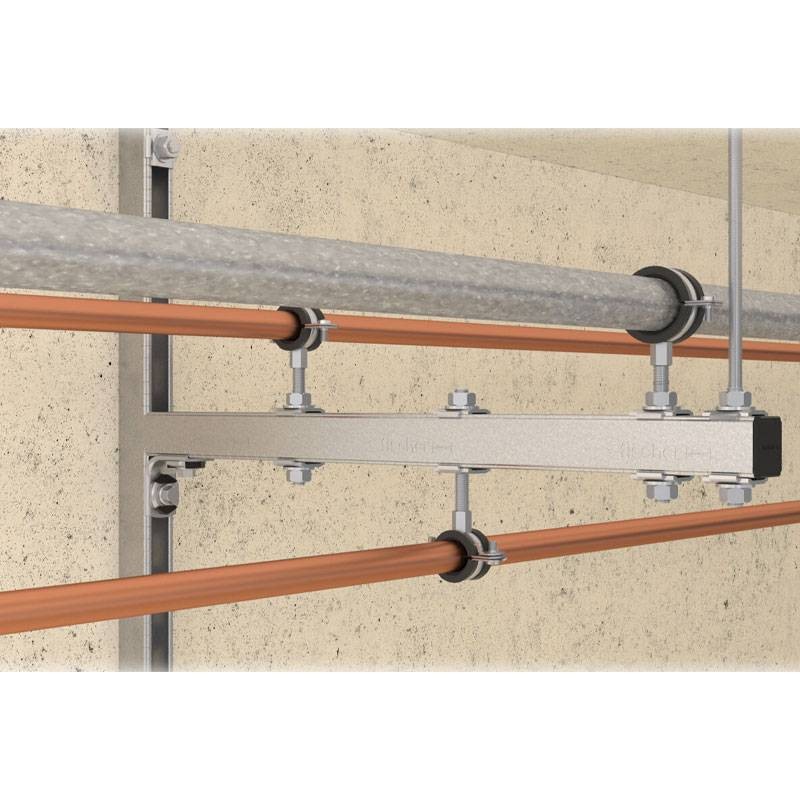

  • Quick and safe installation of piping in industrial and civil installations

  • Mounting with threaded rods or screws in robust fastening systems

  • Use in environments requiring sound insulation and fire resistance

Main features

  • Quick closure: double screw mechanism for easy and secure installation

  • Sound-absorbing gasket: sound insulation certified to DIN 4109

  • Fire resistance: complies with R120 and MLAR standards

  • M8/M10 combination nut: maximum installation flexibility

  • Sturdy material: electrolytically galvanized steel, strong and durable

  • Clamping range: 164-172 mm, suitable for pipes of nominal size 6 inches

There are no reviews

Data sheet

Type:
Collars
Connections:
6 inches
Material:
Steel
