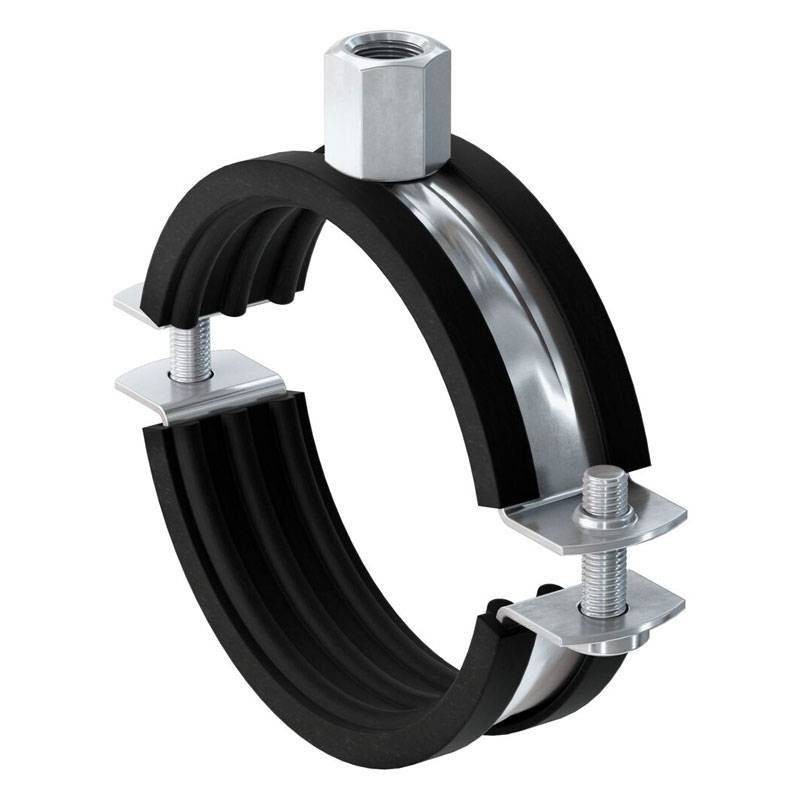

Fischer FRS pipe collar double screw M8/10 2 inch steel 00091488
FIS 00091488
4006209914885
Fischer FRS pipe collar with double screw, sound insulation and R120 fire rating, for secure and adjustable fixing, with the following features:
-

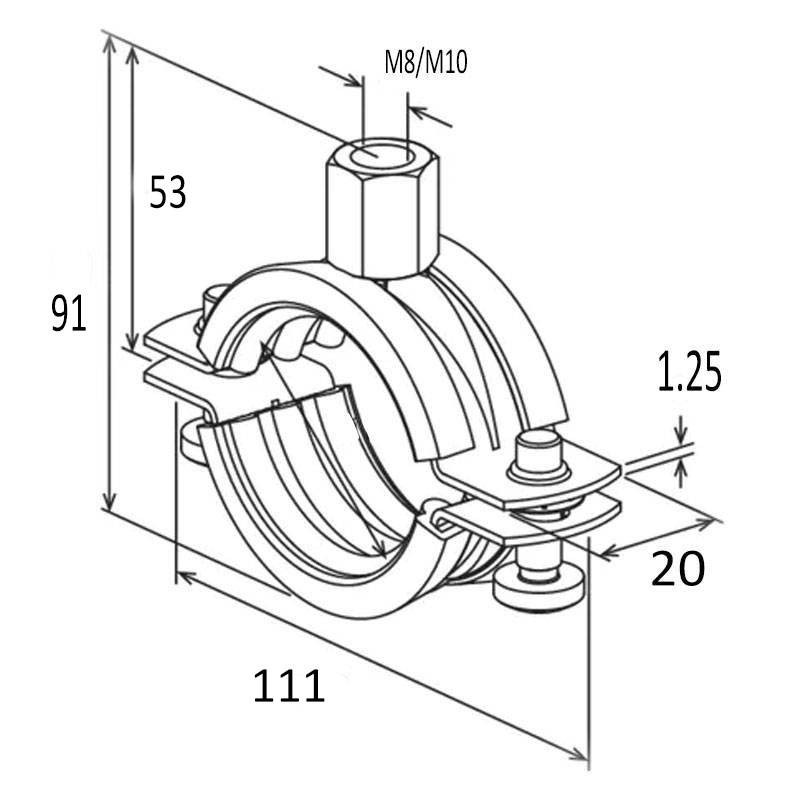

Nominal size: 2 inches
-
Clamping range: 63-67 mm
-
Threading: M8/M10
-
Width x Band Thickness: 20x1.25 mm
-
Height: 91 mm
-
Width: 11 mm
-
Maximum static load: 1 kN
-
Fire resistance classification: R120
-
Material: steel with cold galvanizing
€1.21
Items Available: 647
: 13
Fischer pipe collar: safe, versatile and easy to adjust
Safety and versatility for every application
The Fischer FRS pipe collar with double screws is designed for the secure fastening of pipes, even when fire requirements are met. The R120 rating certifies fire resistance, ensuring safety in critical conditions. Ideal for industrial, civil and technical plant applications.
Simple and flexible adjustment
Thanks to the double screw system, the collar fits precisely to the outer diameter of the pipe, simplifying installation. The combined M8/M10 thread allows greater flexibility in installation, adapting to different design requirements.
Fischer pipe collar with acoustic and corrosion protection
Acoustic and corrosion protection
The included gasket acoustically isolates the pipe, reducing vibration and noise. It also prevents contact corrosion, ensuring a long service life for the fastening system.
Material and strength
Constructed of cold-galvanized steel, the collar offers protection against corrosion. It is designed to withstand extreme temperatures (-40/+100 degrees), maintaining reliable performance under all conditions.
Key Applications.
This collar is perfect for fixing pipes with threaded rods or double-threaded screws. It is especially suitable in environments with fire protection requirements, such as industrial plants, public buildings or technical facilities.
Key features of the 2-inch Collar
-
Adjustable double screw: Allows optimal adaptation to the outside diameter of the pipe (40-45 mm)
-
R120 certification: Fire resistance guaranteed by independent testing for maximum safety
-
Sound insulation: Gasket for noise reduction and corrosion protection
-
Combined M8/M10 threading: Compatible with threaded rods or studs for greater versatility
-
Cold galvanizing: Corrosion protection for long service life
-
Maximum static load: Supports up to 1 kN (centered tension)
There are no reviews
Data sheet
- Type: Collars
- Connections: 2 inches
- Material: Steel
