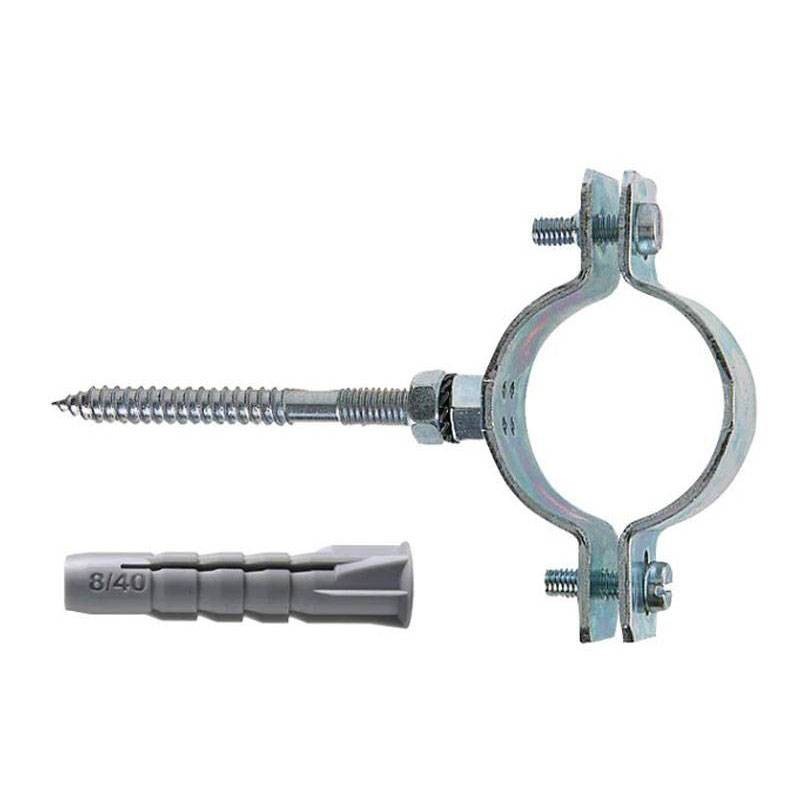

Fischer CPS-V M8 3/8 steel 2pcs metal pipe collar 00520992
FIS 00520992
8001132030332
Fischer CPS-V pipe collar with screw and dowel ensures optimal support of metal pipes due to its sturdy structure, easy assembly and corrosion resistance, with the following features:
-
Collar size: 3/8 in.
-
Thread: M8
-
Width x thickness collar band: 23x2 mm
-
Material: Steel
-
Welded nut with four points even in small sizes
-
Oversized band for secure fastening
-
Pack of 2 pieces
€0.92
Items Available: 445
: 68
Sturdy Fischer CPS-V collar with screw and dowel for quick assembly
Robustness and durability
The Fischer CPS-V metal pipe collar is made of DD11 steel according to DIN EN 10111, ensuring high mechanical strength, dimensional stability and durability. Cold-dip galvanizing with a thickness of 5-7 µm provides reliable protection against corrosion, ideal in both civil and industrial environments.
Complete kit with Fischer SX screw and dowel for quick assembly
The Fischer CPS-V kit includes everything needed for quick and secure installation: a double-threaded screw and a Fischer SX anchor made of gray nylon PA6 with 3 expansion sectors. This combination ensures perfect anchorage and high holding power even on critical materials. The integrated nut, fixed with four welding points, facilitates precise adjustment and ensures stable fastening even in the smallest sizes.
Fischer CPS-V collar for plumbing systems, quick to install
Ideal for civil and industrial plumbing systems
Thanks to its versatility and robustness, the Fischer CPS-V collar is an ideal solution for installing and supporting metal pipes in plumbing, heating and sanitary systems in both the residential and industrial sectors. The oversized band, ensures even pressure distribution and reduced pipe vibration during operation.
Ease and speed of installation
Installation is quick and easy: simply drill a hole, insert the Fischer SX dowel, and screw in the double-threaded screw to expand the dowel and secure the collar firmly. In addition, for applications on Fischer profiles, the CPT M collar (without screw and dowel) can be used in combination with the Fischer FHS Clix quick-attach screw, further optimizing installation time.
There are no reviews
Data sheet
- Type: Collars
- Connections: 3/8 inches
- Material: Steel
